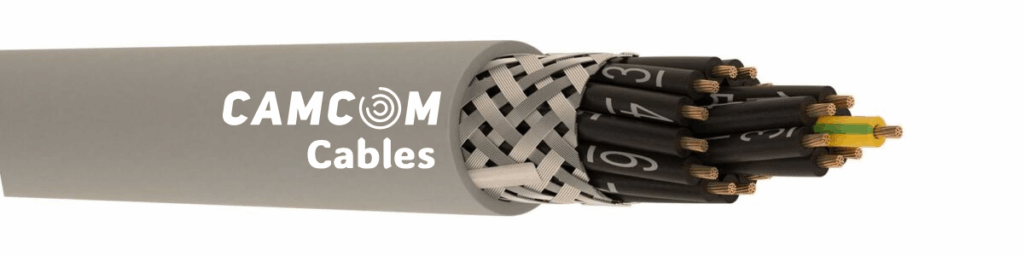

2YSLCY-JZ Control Cable
Product Code: 2YSLCY-JZ
1 – Conductor : Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : Polyethylene (DIN VDE 0207-2 2YI2), Black insulation, white number coded (DIN VDE 0293, TS HD 308 S2)
3 – Stranding : In layers
4 – Wrapping : Polyester tape
5 – Screen : Tinned copper braiding
6 – Outer Jacket: UV resistant PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey) or RAL 9004 (Black)
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km |
Current Carrying Capacity A |
Test Voltage V (DC, 1 minute) |
Operating Voltage V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 9 | 2000 | 300/500 |
| 0.75 mm² | 26.0 | 20 | 12 | 2000 | 300/500 |
| 1.00 mm² | 19.5 | 20 | 15 | 2000 | 300/500 |
| 1.5 mm² | 13.3 | 20 | 18 | 2000 | 300/500 |
| 2.5 mm² | 7.98 | 20 | 26 | 2000 | 300/500 |
| 4.0 mm² | 4.95 | 20 | 34 | 2000 | 300/500 |
| 6.0 mm² | 3.30 | 20 | 44 | 2000 | 300/500 |
| 10.0 mm² | 1.91 | 20 | 61 | 2000 | 300/500 |
| 16.0 mm² | 1.21 | 20 | 82 | 2000 | 300/500 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2 EN 60332-1-2 VDE 0482-332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.0050.1.0002 | 2 | 0,5 | 5,3 | 18,1 | 45 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0003 | 3 | 0,5 | 5,6 | 22,5 | 52 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0004 | 4 | 0,5 | 6 | 28,2 | 61 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0005 | 5 | 0,5 | 6,5 | 33,1 | 70 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0006 | 6 | 0,5 | 7,2 | 41,7 | 85 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0007 | 7 | 0,5 | 7,2 | 46,1 | 89 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0008 | 8 | 0,5 | 7,7 | 51,5 | 101 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0009 | 9 | 0,5 | 9 | 56 | 117 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0010 | 10 | 0,5 | 9 | 60,4 | 121 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0012 | 12 | 0,5 | 9,3 | 69,8 | 134 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0014 | 14 | 0,5 | 9,7 | 79,3 | 149 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0016 | 16 | 0,5 | 10,3 | 89,1 | 167 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0018 | 18 | 0,5 | 10,9 | 103,6 | 189 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0020 | 20 | 0,5 | 11,5 | 113,6 | 209 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0024 | 24 | 0,5 | 12,8 | 135 | 242 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0025 | 25 | 0,5 | 12,8 | 139,4 | 253 | 100/500/1000 |
| 3.602.3.1.2.0050.0.0027 | 27 | 0,5 | 13 | 148,6 | 262 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.0075.1.0002 | 2 | 0,75 | 5,7 | 22,8 | 52 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0003 | 3 | 0,75 | 6 | 30,4 | 63 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0004 | 4 | 0,75 | 6,5 | 37,3 | 74 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0005 | 5 | 0,75 | 7,2 | 48,3 | 91 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0006 | 6 | 0,75 | 7,9 | 55,5 | 106 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0007 | 7 | 0,75 | 7,9 | 62,1 | 112 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0008 | 8 | 0,75 | 8,4 | 68,9 | 126 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0009 | 9 | 0,75 | 9,8 | 76,7 | 145 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0010 | 10 | 0,75 | 9,8 | 83,3 | 150 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0012 | 12 | 0,75 | 10,2 | 97,1 | 171 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0014 | 14 | 0,75 | 10,8 | 115,8 | 196 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0016 | 16 | 0,75 | 11,4 | 130,2 | 219 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0018 | 18 | 0,75 | 12 | 144,8 | 243 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0020 | 20 | 0,75 | 12,7 | 159,8 | 269 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0024 | 24 | 0,75 | 14 | 186,4 | 309 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0025 | 25 | 0,75 | 14,1 | 195,9 | 326 | 100/500/1000 |
| 3.602.3.1.2.0075.0.0027 | 27 | 0,75 | 14,5 | 211,5 | 344 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.0100.1.0002 | 2 | 1 | 6,1 | 27,1 | 60 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0003 | 3 | 1 | 6,5 | 35,6 | 72 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0004 | 4 | 1 | 7,1 | 48,4 | 91 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0005 | 5 | 1 | 7,7 | 57 | 106 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0006 | 6 | 1 | 8,4 | 65,5 | 123 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0007 | 7 | 1 | 8,4 | 73,7 | 129 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0008 | 8 | 1 | 9,2 | 82,1 | 149 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0009 | 9 | 1 | 10,8 | 97,9 | 177 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0010 | 10 | 1 | 10,8 | 106,2 | 184 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0012 | 12 | 1 | 11,2 | 123,5 | 210 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0014 | 14 | 1 | 11,7 | 141,4 | 234 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0016 | 16 | 1 | 12,5 | 159,6 | 263 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0018 | 18 | 1 | 13,1 | 178,4 | 293 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0020 | 20 | 1 | 13,9 | 195,7 | 324 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0024 | 24 | 1 | 15,3 | 227,9 | 370 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0025 | 25 | 1 | 15,4 | 241 | 392 | 100/500/1000 |
| 3.602.3.1.2.0100.0.0027 | 27 | 1 | 15,8 | 257,9 | 412 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.0150.1.0002 | 2 | 1,5 | 6,7 | 36,6 | 74 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0003 | 3 | 1,5 | 7,3 | 53,9 | 97 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0004 | 4 | 1,5 | 7,8 | 66,8 | 115 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0005 | 5 | 1,5 | 8,6 | 80,4 | 138 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0006 | 6 | 1,5 | 9,4 | 93,6 | 161 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0007 | 7 | 1,5 | 9,4 | 106,4 | 172 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0008 | 8 | 1,5 | 10,2 | 120,7 | 197 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0009 | 9 | 1,5 | 12,1 | 141,4 | 234 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0010 | 10 | 1,5 | 12,1 | 154,4 | 245 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0012 | 12 | 1,5 | 12,5 | 181,6 | 279 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0014 | 14 | 1,5 | 13,2 | 207,9 | 316 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0016 | 16 | 1,5 | 14 | 235,9 | 356 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0018 | 18 | 1,5 | 14,7 | 264,4 | 397 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0020 | 20 | 1,5 | 15,6 | 291,4 | 440 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0024 | 24 | 1,5 | 17,4 | 344,2 | 517 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0025 | 25 | 1,5 | 17,5 | 361,6 | 545 | 100/500/1000 |
| 3.602.3.1.2.0150.0.0027 | 27 | 1,5 | 17,8 | 387,8 | 569 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.0250.1.0002 | 2 | 2,5 | 8,1 | 57 | 110 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0003 | 3 | 2,5 | 8,6 | 80,5 | 139 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0004 | 4 | 2,5 | 9,4 | 102,3 | 169 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0005 | 5 | 2,5 | 10,5 | 125,9 | 207 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0006 | 6 | 2,5 | 11,5 | 153,2 | 248 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0007 | 7 | 2,5 | 11,5 | 174,6 | 265 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0008 | 8 | 2,5 | 12,5 | 197,8 | 308 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0009 | 9 | 2,5 | 14,8 | 224,5 | 357 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0010 | 10 | 2,5 | 14,8 | 246 | 374 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0012 | 12 | 2,5 | 15,3 | 291,7 | 429 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0014 | 14 | 2,5 | 16,1 | 335,6 | 488 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0016 | 16 | 2,5 | 17,2 | 383,4 | 556 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0018 | 18 | 2,5 | 18,3 | 431,1 | 632 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0020 | 20 | 2,5 | 19,5 | 475,8 | 705 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0024 | 24 | 2,5 | 21,7 | 565,2 | 821 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0025 | 25 | 2,5 | 21,9 | 591,4 | 875 | 100/500/1000 |
| 3.602.3.1.2.0250.0.0027 | 27 | 2,5 | 22,4 | 642,5 | 922 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.0400.1.0002 | 2 | 4 | 9,2 | 85,2 | 156 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0003 | 3 | 4 | 9,8 | 120,8 | 191 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0004 | 4 | 4 | 10,8 | 160,7 | 241 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0005 | 5 | 4 | 11,9 | 197,4 | 294 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0006 | 6 | 4 | 13,1 | 235,6 | 349 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0007 | 7 | 4 | 13,1 | 269,9 | 377 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0008 | 8 | 4 | 14,3 | 308,7 | 439 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0009 | 9 | 4 | 17,1 | 354,9 | 520 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0010 | 10 | 4 | 17,1 | 389,2 | 548 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0012 | 12 | 4 | 17,7 | 462,4 | 631 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0014 | 14 | 4 | 18,8 | 532,6 | 723 | 100/500/1000 |
| 3.602.3.1.2.0400.0.0016 | 16 | 4 | 20 | 603,1 | 817 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.0600.1.0002 | 2 | 6 | 11 | 126,6 | 223 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0003 | 3 | 6 | 11,8 | 179,2 | 277 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0004 | 4 | 6 | 12,9 | 233,7 | 345 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0005 | 5 | 6 | 14,3 | 288,3 | 423 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0006 | 6 | 6 | 15,8 | 343,7 | 506 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0007 | 7 | 6 | 15,8 | 395,2 | 547 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0008 | 8 | 6 | 17,3 | 452,3 | 642 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0009 | 9 | 6 | 20,9 | 518,9 | 765 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0010 | 10 | 6 | 20,9 | 570,3 | 806 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0012 | 12 | 6 | 21,8 | 679,8 | 942 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0014 | 14 | 6 | 23,1 | 785,1 | 1077 | 100/500/1000 |
| 3.602.3.1.2.0600.0.0016 | 16 | 6 | 24,6 | 891,8 | 1257 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.1000.1.0002 | 2 | 10 | 13,2 | 206,4 | 337 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0003 | 3 | 10 | 14,1 | 298,1 | 428 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0004 | 4 | 10 | 15,6 | 390,9 | 541 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0005 | 5 | 10 | 17,4 | 485,8 | 671 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0006 | 6 | 10 | 19,4 | 581 | 812 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0007 | 7 | 10 | 19,4 | 670 | 884 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0008 | 8 | 10 | 21,2 | 761,9 | 1021 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0009 | 9 | 10 | 25,7 | 859,1 | 1205 | 100/500/1000 |
| 3.602.3.1.2.1000.0.0010 | 10 | 10 | 25,7 | 948,1 | 1284 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.1.2.1600.1.0002 | 2 | 16 | 17,5 | 321,3 | 565 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0003 | 3 | 16 | 18,8 | 467,7 | 706 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0004 | 4 | 16 | 21,1 | 617 | 903 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0005 | 5 | 16 | 23,6 | 767,3 | 1128 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0006 | 6 | 16 | 26,1 | 900,2 | 1324 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0007 | 7 | 16 | 26,1 | 1040,4 | 1456 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0008 | 8 | 16 | 27,5 | 1185,8 | 1599 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0009 | 9 | 16 | 33,7 | 1337,6 | 1907 | 100/500/1000 |
| 3.602.3.1.2.1600.0.0010 | 10 | 16 | 33,7 | 1477,8 | 2046 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -30°C~+70°C |
