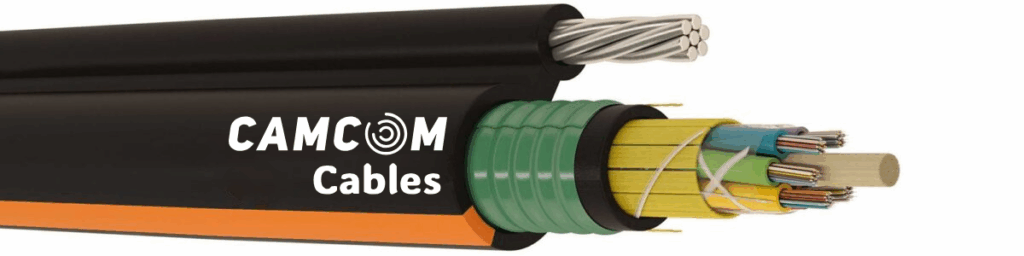

A-DF(ZN)2Y(SR)T2Y Türk Telekom Fiber Optic Cable

Product Code: MLT-SA-DJ-A(L)-(AY50) Türk Telekom

1 – Optical fiber core ¹

2 – Waterproof thixotropic jelly

3 – PBT Tube

4 – Non-metallic central strength member (FRP)

5 – Jelly filling

6 – Core Wrapping (Water-swellable Tape)t

7 – Non-metallic strength member (Glass yarn)

8 – Ripcord

9 – UV resistant polyethylene (LLDPE) black inner jacket

10- Ripcord

11- Corrugated steel tape

12 – Web

13 – Steel messenger wire (7×1.20 mm)

14 – UV resistant polyethylene (MDPE) black outer jacket withorange tracer.

Part Number	Core Type	Fiber Count	Tube Count	Filler Count	Tube Diameter (mm)	FRP Diameter (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
3.843.1.6.1.0900.0.0004	SM G.652.D	4	2	4	2,05	2,2	15,4	328
3.843.1.6.1.0900.0.0006	SM G.652.D	6	3	3	2,05	2,2	15,4	329
3.843.1.6.1.0900.0.0012	SM G.652.D	12	6	0	2,05	2,2	15,4	331
3.843.1.6.1.0900.0.0024	SM G.652.D	24	6	0	2,05	2,2	15,4	331
3.843.1.6.1.0900.0.0036	SM G.652.D	36	6	0	2,05	2,2	15,4	330
3.843.1.6.1.0900.0.0048	SM G.652.D	48	4	2	2,25	2,2	16,1	344

Test Standard	Specified Value	Acceptance Criteria
Maximum Installation Tension ²	IEC 60794-1-2-E1	3.0 x W(N), min. 5000 N	Fiber strainı ≤ 0.33%
Maximum Operation Tension	IEC 60794-1-2-E1	1.0 x W(N), min. 1500 N	Δα ≤ 0.05 dB, No fiber strain
Crush Strength	IEC 60794-1-2-E3	5000 N / 100 mm, maks. 15 min	Δα ≤ 0.05 dB, No damage
Impact	IEC 60794-1-2-E4	10 Nm, 3 impacts, R= 300 mm	Δα ≤ 0.05 dB after the test
Torsion	IEC 60794-1-2-E7	1 m, 100N, +/- 180°, 10 cycles	Δα ≤ 0.05 dB, No damage
Repeated Bending	IEC 60794-1-2-E6	R=20x D, 100 N, 35 cycles	No damage
Bending Radius	IEC 60794-1-2-E11	R=20x D, 4 turns, 3 cycles	Δα ≤ 0.05 dB, No damage
Temperature Cycling	IEC 60794-1-2-F1	-20°C to +70°C	Δα ≤ 0.05 dB/km
Waterproofness	IEC 60794-1-2-F5B	Sample= 3 m, water column= 1 m	No water leakage in 24 hours.

Minimum Bending Radius
Operation	20 x cable Ø
Fixed	15 x cable Ø

	Temperature Range
Storage	-40°C to + 70°C	Installation	-30°C to +60°C
Transport	-40°C to + 70°C	Operating	-40°C to +70°C

Marking	Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance
