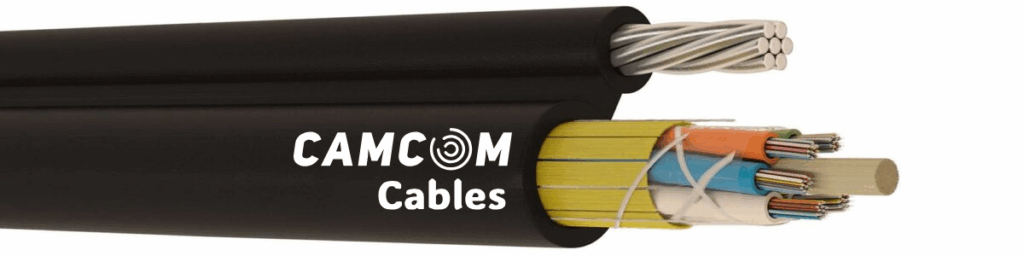

A-DF(ZN)T2Y Fiber Optic Cable

Product Code: MLT-NMA-SJ-A(L)-(AY50)

1 – Optical fiber core ¹

2 – Waterproof thixotropic jelly

3 – PBT Tube

4 – Non-metallic central strength member (FRP)

5 – Jelly filling

6 – Core Wrapping (Polyester Tape)

7 – Non-metallic strength member (Aramid yarn)

8 – Ripcord

9 – Web

10- Steel messenger wire (7×1.32 mm)

11- UV resistant polyethylene (HDPE) black outer jacket

Part Number	Core Type	Count Fiber	Count Tube	Count Filler	Diameter Tube(mm)	FRP Diameter (mm)	Cable Diameter (mm)	Cable Weight(kg/km)
3.230.2.6.1.0900.0.0002	SM G.652.D	2	1	5	2,05	2,2	10,4	206
3.230.2.6.1.0900.1.0004	SM G.652.D	4	1	5	2,05	2,2	10,4	206
3.230.2.6.1.0900.0.0004	SM G.652.D	4	2	4	2,05	2,2	10,4	207
3.230.2.6.1.0900.1.0006	SM G.652.D	6	1	5	2,05	2,2	10,4	206
3.230.2.6.1.0900.0.0006	SM G.652.D	6	3	3	2,05	2,2	10,4	207
3.230.2.6.1.0900.1.0008	SM G.652.D	8	1	5	2,05	2,2	10,4	206
3.230.2.6.1.0900.2.0008	SM G.652.D	8	2	4	2,05	2,2	10,4	207
3.230.2.6.1.0900.0.0008	SM G.652.D	8	4	2	2,05	2,2	10,4	208
3.230.2.6.1.0900.1.0012	SM G.652.D	12	1	5	2,25	2,2	10,8	212
3.230.2.6.1.0900.2.0012	SM G.652.D	12	3	3	2,05	2,2	10,4	207
3.230.2.6.1.0900.0.0012	SM G.652.D	12	6	0	2,05	2,2	10,4	210
3.230.2.6.1.0900.1.0016	SM G.652.D	16	2	4	2,05	2,2	10,4	206
3.230.2.6.1.0900.0.0016	SM G.652.D	16	4	2	2,05	2,2	10,4	208
3.230.2.6.1.0900.0.0020	SM G.652.D	20	5	1	2,05	2,2	10,4	208
3.230.2.6.1.0900.1.0024	SM G.652.D	24	2	4	2,25	2,2	10,8	213
3.230.2.6.1.0900.3.0024	SM G.652.D	24	3	3	2,05	2,2	10,4	207
3.230.2.6.1.0900.2.0024	SM G.652.D	24	4	2	2,05	2,2	10,4	207
3.230.2.6.1.0900.0.0024	SM G.652.D	24	6	0	2,05	2,2	10,4	209
3.230.2.6.1.0900.0.0032	SM G.652.D	32	4	2	2,05	2,2	10,4	207
3.230.2.6.1.0900.1.0036	SM G.652.D	36	3	3	2,25	2,2	10,8	213
3.230.2.6.1.0900.0.0036	SM G.652.D	36	6	0	2,05	2,2	10,4	208
3.230.2.6.1.0900.1.0048	SM G.652.D	48	4	2	2,25	2,2	10,8	214
3.230.2.6.1.0900.0.0048	SM G.652.D	48	6	0	2,05	2,2	10,4	208
3.230.2.6.1.0900.0.0060	SM G.652.D	60	5	1	2,25	2,5	11,1	221
3.230.2.6.1.0900.0.0064	SM G.652.D	64	8	0	2,25	2,7	12,6	281
3.230.2.6.1.0900.0.0072	SM G.652.D	72	6	0	2,25	2,5	11,1	221
3.230.2.6.1.0900.0.0096	SM G.652.D	96	8	0	2,25	2,7	12,6	280

Test Standard	Specified Value	Acceptance Criteria
Maximum Installation Tension ²	IEC 60794-1-2-E1	3.0 x W(N), min. 5000 N	Fiber strain ≤ 0.33%
Maximum Operation Tension	IEC 60794-1-2-E1	1.0 x W(N), min. 1500 N	Δα ≤ 0.05 dB, No fiber strain
Crush Strength	IEC 60794-1-2-E3	3000 N / 100 mm, max. 15 min.	Δα ≤ 0.05 dB, No damage
Impact	IEC 60794-1-2-E4	10 Nm, 3 impacts, R= 300 mm	Δα ≤ 0.05 dB after the test
Torsion	IEC 60794-1-2-E7	1 m. 100N, +/- 180°, 10 cycles	Δα ≤ 0.05 dB, No damage
Repeated Bending	IEC 60794-1-2-E6	R=20x D, 100 N, 35 cycles	No damage
Bending Radius	IEC 60794-1-2-E11	R=20x D, 4 turns, 3 cycles	Δα ≤ 0.05 dB, No damage
Temperature Cycling	IEC 60794-1-2-F1	-20°C to +70°C	Δα ≤ 0.05 dB/km
Waterproofness	IEC 60794-1-2-F5B	Sample= 3 m, water column= 1 m	No water leakage in 24 hours.

Minimum Bending Radius
Operation	20 x cable Ø
Fixed	15 x cable Ø

	Temperature Range
Storage	-40°C to + 70°C	Installation	-30°C to +60°C
Transport	-40°C to + 70°C	Operating	-40°C to +70°C

Marking	Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance
