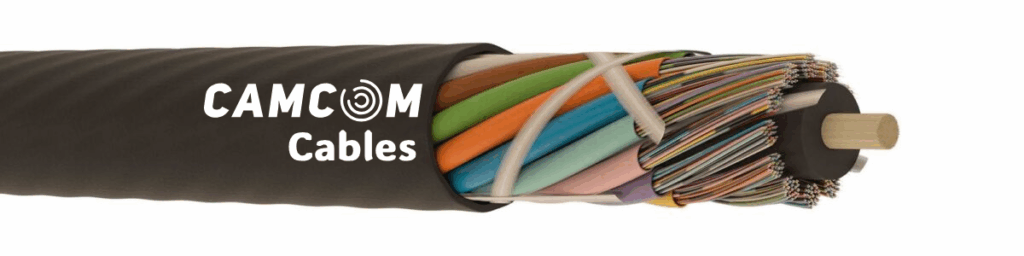

A-DQ2Y Fiber Optic Cable
Product Code: mdMLT-SJ-(D)
| 1 – Optical fiber core ¹ |
| 2 – Waterproof thixotropic jelly |
| 3 – PBT Tube |
| 4 – Non-metallic central strength member (FRP) |
| 5 – Water-swellable yarn |
| 6 – Ripcord |
| 7 – UV resistant polyethylene (HDPE) black outer jacket |
| Part Number | Core Type | Fiber Count | Tube Count | Filler Count | Tube Diameter (mm) | FRP Diameter (mm) | Cable Diameter (mm) | Cable Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 3.229.0.6.1.0900.0.0012 | SM G.652.D | 12 | 1 | 5 | 1,6 | 1,65 | 6 | 31 |
| 3.229.0.6.1.0900.0.0024 | SM G.652.D | 24 | 2 | 4 | 1,6 | 1,65 | 6 | 31 |
| 3.229.0.6.1.0900.0.0036 | SM G.652.D | 36 | 3 | 3 | 1,6 | 1,65 | 6 | 30 |
| 3.229.0.6.1.0900.0.0048 | SM G.652.D | 48 | 4 | 2 | 1,6 | 1,65 | 6 | 30 |
| 3.229.0.6.1.0900.0.0060 | SM G.652.D | 60 | 5 | 1 | 1,6 | 1,65 | 6 | 30 |
| 3.229.0.6.1.0900.0.0072 | SM G.652.D | 72 | 6 | 0 | 1,6 | 1,65 | 6 | 29 |
| 3.229.0.6.1.0900.0.0096 | SM G.652.D | 96 | 8 | 0 | 1,6 | 2,2 | 7,2 | 38 |
| 3.229.0.6.1.0900.0.0120 | SM G.652.D | 120 | 10 | 0 | 1,6 | 2,2 | 8,3 | 49 |
| 3.229.0.6.1.0900.1.0144 | SM G.652.D | 144 | 6 | 0 | 2,3 | 2,5 | 8,3 | 50 |
| 3.229.0.6.1.0900.0.0144 | SM G.652.D | 144 | 12 | 0 | 1,5 | 2,2 | 8,6 | 53 |
| 3.229.0.6.1.0900.1.0192 | SM G.652.D | 192 | 8 | 0 | 2,3 | 2,5 | 9,8 | 68 |
| 3.229.0.6.1.0900.0.0288 | SM G.652.D | 288 | 12 | 0 | 2,3 | 2,5 | 13 | 119 |
| Test Standard | Specified Value | Acceptance Criteria | |
|---|---|---|---|
| Maximum Installation Tension ² | IEC 60794-1-2-E1 | Maks. 650 N (96 FO, 144 FO Maks. 1000 N) | Fiber strainı ≤ 0.33% |
| Maximum Operation Tension | Maks. 200 N | Δα ≤ 0.05 dB, No fiber strain | |
| Crush Strength | IEC 60794-1-2-E3 | 700 N / 100 mm, maks. 15 min | Δα ≤ 0.05 dB, No damage |
| Impact | IEC 60794-1-2-E4 | 10 Nm, 3 impacts, R= 300 mm | Δα ≤ 0.05 dB after the test |
| Torsion | IEC 60794-1-2-E7 | 1 m, 100N, +/- 180°, 10 cycles | Δα ≤ 0.05 dB, No damage |
| Repeated Bending | IEC 60794-1-2-E6 | R=20x D, 100 N, 35 cycles | No damage |
| Bending Radius | IEC 60794-1-2-E11 | R=20x D, 4 turns, 3 cycles | Δα ≤ 0.05 dB, No damage |
| Temperature Cycling | IEC 60794-1-2-F1 | -20°C to +70°C | Δα ≤ 0.05 dB/km |
| Waterproofness | IEC 60794-1-2-F5B | Sample= 3 m, water column= 1 m | No water leakage in 24 hours. |
| Minimum Bending Radius | |
|---|---|
| Operation | 20 x cable Ø |
| Fixed | 15 x cable Ø |
| Temperature Range | |||
|---|---|---|---|
| Storage | -40°C to + 70°C | Installation | -30°C to +60°C |
| Transport | -40°C to + 70°C | Operating | -30°C to +60°C |
| Marking | Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking |
|---|---|
| Packing | Wooden drum with protection |
| Delivery Lengths | 2 km, 4 km ± %5 tolerance |
