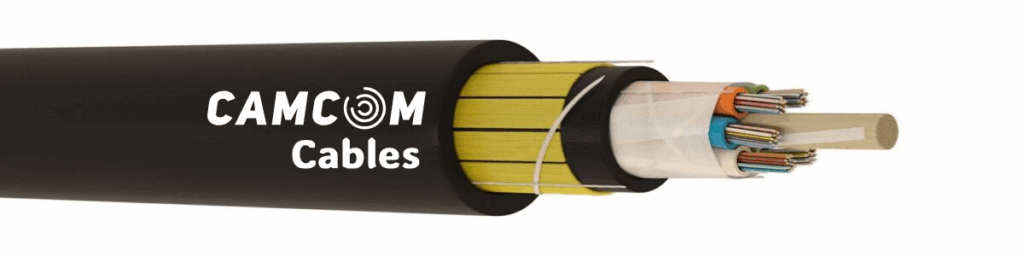

1 – Optical fiber core ¹
2 – Waterproof thixotropic jelly
3 – PBT Tube
4 – Non-metallic central strength member (FRP)
5 – Water-swellable yarn
6 – Core Wrapping (Water-swellable Tape)
7 – Ripcord
8 – UV resistant polyethylene (LLDPE) black inner jacket.
9 – Non-metallic strength member (Aramid yarn)
10- Ripcord
11- UV resistant polyethylene (HDPE) black outer jacket
| Part Number |
Core Type |
Count Fiber |
Count Tube |
Count Filler |
Diameter Tube(mm) |
FRP Diameter (mm) |
Cable Diameter (mm) |
Cable Weight(kg/km) |
| 3.231.1.6.1.1900.0.0002 |
SM G.652.D |
2 |
1 |
5 |
2,05 |
2,2 |
12,6 |
112 |
| 3.231.1.6.1.1900.1.0004 |
SM G.652.D |
4 |
1 |
5 |
2,05 |
2,2 |
12,6 |
112 |
| 3.231.1.6.1.1900.0.0004 |
SM G.652.D |
4 |
2 |
4 |
2,05 |
2,2 |
12,6 |
113 |
| 3.231.1.6.1.1900.1.0006 |
SM G.652.D |
6 |
1 |
5 |
2,05 |
2,2 |
12,6 |
112 |
| 3.231.1.6.1.1900.0.0006 |
SM G.652.D |
6 |
3 |
3 |
2,05 |
2,2 |
12,6 |
113 |
| 3.231.1.6.1.1900.1.0008 |
SM G.652.D |
8 |
1 |
5 |
2,05 |
2,2 |
12,6 |
112 |
| 3.231.1.6.1.1900.2.0008 |
SM G.652.D |
8 |
2 |
4 |
2,05 |
2,2 |
12,6 |
113 |
| 3.231.1.6.1.1900.0.0008 |
SM G.652.D |
8 |
4 |
2 |
2,05 |
2,2 |
12,6 |
114 |
| 3.231.1.6.1.1900.1.0012 |
SM G.652.D |
12 |
1 |
5 |
2,25 |
2,2 |
13,3 |
124 |
| 3.231.1.6.1.1900.2.0012 |
SM G.652.D |
12 |
3 |
3 |
2,05 |
2,2 |
12,6 |
113 |
| 3.231.1.6.1.1900.0.0012 |
SM G.652.D |
12 |
6 |
0 |
2,05 |
2,2 |
12,6 |
115 |
| 3.231.1.6.1.1900.1.0016 |
SM G.652.D |
16 |
2 |
4 |
2,05 |
2,2 |
12,6 |
112 |
| 3.231.1.6.1.1900.0.0016 |
SM G.652.D |
16 |
4 |
2 |
2,05 |
2,2 |
12,6 |
114 |
| 3.231.1.6.1.1900.0.0020 |
SM G.652.D |
20 |
5 |
1 |
2,05 |
2,2 |
12,6 |
114 |
| 3.231.1.6.1.1900.1.0024 |
SM G.652.D |
24 |
2 |
4 |
2,25 |
2,2 |
13,3 |
124 |
| 3.231.1.6.1.1900.3.0024 |
SM G.652.D |
24 |
3 |
3 |
2,05 |
2,2 |
12,6 |
112 |
| 3.231.1.6.1.1900.2.0024 |
SM G.652.D |
24 |
4 |
2 |
2,05 |
2,2 |
12,6 |
113 |
| 3.231.1.6.1.1900.0.0024 |
SM G.652.D |
24 |
6 |
0 |
2,05 |
2,2 |
12,6 |
115 |
| 3.231.1.6.1.1900.0.0032 |
SM G.652.D |
32 |
4 |
2 |
2,05 |
2,2 |
12,6 |
113 |
| 3.231.1.6.1.1900.1.0036 |
SM G.652.D |
36 |
3 |
3 |
2,25 |
2,2 |
13,3 |
124 |
| 3.231.1.6.1.1900.0.0036 |
SM G.652.D |
36 |
6 |
0 |
2,05 |
2,2 |
12,6 |
114 |
| 3.231.1.6.1.1900.1.0048 |
SM G.652.D |
48 |
4 |
2 |
2,25 |
2,2 |
13,3 |
125 |
| 3.231.1.6.1.1900.0.0048 |
SM G.652.D |
48 |
6 |
0 |
2,05 |
2,2 |
12,6 |
114 |
| 3.231.1.6.1.1900.0.0060 |
SM G.652.D |
60 |
5 |
1 |
2,25 |
2,5 |
13,3 |
125 |
| 3.231.1.6.1.1900.0.0064 |
SM G.652.D |
64 |
8 |
0 |
2,05 |
2,7 |
14,4 |
147 |
| 3.231.1.6.1.1900.0.0072 |
SM G.652.D |
72 |
6 |
0 |
2,25 |
2,5 |
13,3 |
125 |
| 3.231.1.6.1.1900.0.0096 |
SM G.652.D |
96 |
8 |
0 |
2,25 |
2,7 |
14,8 |
156 |
| 3.231.1.6.1.1900.0.0120 |
SM G.652.D |
120 |
10 |
0 |
2,25 |
2,7 |
16,2 |
185 |
| 3.231.1.6.1.1900.0.0144 |
SM G.652.D |
144 |
12 |
0 |
2,25 |
2,7 |
17,8 |
222 |
| 3.231.1.6.1.1900.0.0192 |
SM G.652.D |
192 |
16 |
2 |
2,25 |
2,5 |
17,9 |
215 |
| 3.231.1.6.1.1900.0.0216 |
SM G.652.D |
216 |
18 |
0 |
2,25 |
2,5 |
17,9 |
216 |
|
Test Standard |
Specified Value |
Acceptance Criteria |
| Maximum Installation Tension ² |
IEC 60794-1-2-E1 |
1.5 x W(N), min. 2700 N |
Fiber strain ≤ 0.33% |
| Maximum Operation Tension |
IEC 60794-1-2-E1 |
0.5 x W(N), min. 900 N |
Δα ≤ 0.05 dB, No fiber strain |
| Crush Strength |
IEC 60794-1-2-E3 |
4000 N / 100 mm, max. 15 min. |
Δα ≤ 0.05 dB, No damage |
| Impact |
IEC 60794-1-2-E4 |
10 Nm, 3 impacts, R= 300 mm |
Δα ≤ 0.05 dB after the test |
| Torsion |
IEC 60794-1-2-E7 |
1 m. 100N, +/- 180°, 10 cycles |
Δα ≤ 0.05 dB, No damage |
| Repeated Bending |
IEC 60794-1-2-E6 |
R=20x D, 100 N, 35 cycles |
No damage |
| Bending Radius |
IEC 60794-1-2-E11 |
R=20x D, 4 turns, 3 cycles |
Δα ≤ 0.05 dB, No damage |
| Temperature Cycling |
IEC 60794-1-2-F1 |
-20°C to +70°C |
Δα ≤ 0.05 dB/km |
| Waterproofness |
IEC 60794-1-2-F5B |
Sample= 3 m, water column= 1 m |
No water leakage in 24 hours. |
| Minimum Bending Radius |
| Operation |
20 x cable Ø |
| Fixed |
15 x cable Ø |
|
Temperature Range |
| Storage |
-40°C to + 70°C |
Installation |
-30°C to +60°C |
| Transport |
-40°C to + 70°C |
Operating |
-20°C to +70°C |
| Marking |
Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking |
| Packing |
Wooden drum with protection |
| Delivery Lengths |
2 km, 4 km ± %5 tolerance |
