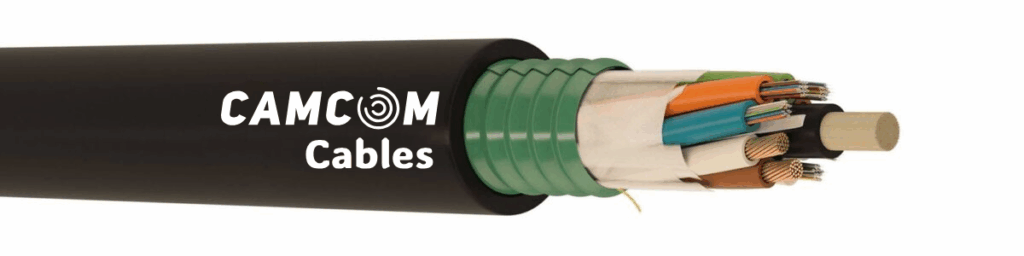

A-DQ(ZN)(SR)2Y Composite (Stranded Copper) Fiber Optic Cable

Product Code:

1 – Optical fiber core ¹

2 – Waterproof thixotropic jelly

3 – PBT Tube

4 – Non-metallic central strength member (FRP)

5 – Power cable

6 – Water-swellable yarn

7 – Core Wrapping (Water-swellable Tape)

8 – Non-metallic strength member (Glass yarn).

9 – Ripcord

10- Corrugated steel tape

11- UV resistant polyethylene (HDPE) black outer jacket

Part Number	Core Type	Fiber Count	Tube Count	Filler Count	Tube Diameter (mm)	FRP Diameter (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
3.294.2.6.1.0900.0.0002	SM G.652.D	2	1	5	2,25	2,5	13,2	203
3.294.2.6.1.0900.1.0004	SM G.652.D	4	1	5	2,25	2,5	13,2	202
3.294.2.6.1.0900.1.0006	SM G.652.D	6	1	5	2,25	2,5	13,2	202
3.294.2.6.1.0900.1.0008	SM G.652.D	8	1	5	2,25	2,5	13,2	202
3.294.2.6.1.0900.1.0012	SM G.652.D	12	1	5	2,25	2,5	13,2	202
3.294.2.6.1.0900.1.0016	SM G.652.D	16	2	4	2,25	2,5	13,2	204
3.294.2.6.1.0900.1.0024	SM G.652.D	24	2	4	2,25	2,5	13,2	203
3.294.2.6.1.0900.3.0024	SM G.652.D	24	3	3	2,25	2,5	13,2	205
3.294.2.6.1.0900.1.0036	SM G.652.D	36	3	3	2,25	2,5	13,2	204
3.294.2.6.1.0900.1.0048	SM G.652.D	48	4	2	2,25	2,5	13,2	206
3.294.2.6.1.0900.0.0060	SM G.652.D	60	5	1	2,25	2,7	14,6	235
3.294.2.6.1.0900.0.0072	SM G.652.D	72	6	0	2,25	2,7	14,6	239

	Test Standard	Specified Value	Acceptance Criteria
Maximum Installation Tension ²	IEC 60794-1-2-E1	1.5 x W(N), min. 2700 N	Fiber strainı ≤ 0.33%
Maximum Operation Tension	IEC 60794-1-2-E1	0.5 x W(N), min. 900 N	Δα ≤ 0.05 dB, No fiber strain
Crush Strength	IEC 60794-1-2-E3	3000 N / 100 mm, maks. 15 min	Δα ≤ 0.05 dB, No damage
Impact	IEC 60794-1-2-E4	10 Nm, 3 impacts, R= 300 mm	Δα ≤ 0.05 dB after the test
Torsion	IEC 60794-1-2-E7	1 m, 100N, +/- 180°, 10 cycles	Δα ≤ 0.05 dB, No damage
Repeated Bending	IEC 60794-1-2-E6	R=20x D, 100 N, 35 cycles	No damage
Bending Radius	IEC 60794-1-2-E11	R=20x D, 4 turns, 3 cycles	Δα ≤ 0.05 dB, No damage
Temperature Cycling	IEC 60794-1-2-F1	-20°C to +70°C	Δα ≤ 0.05 dB/km
Waterproofness	IEC 60794-1-2-F5B	Sample= 3 m, water column= 1 m	No water leakage in 24 hours.

	Minimum Bending Radius
Operation	20 x cable Ø
Fixed	15 x cable Ø

	Temperature Range
Storage	-40°C to + 70°C	Installation	-30°C to +60°C
Transport	-40°C to + 70°C	Operating	-40°C to +70°C

Marking	Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance
