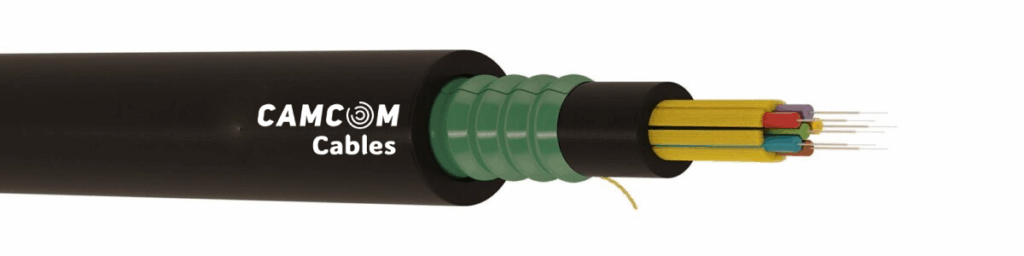

A-V(ZN)H(SR)2Y Fiber Optic Cable

Product Code: TB-SA-DJ

1 – Optical fiber core ¹
2 – HFFR insulated tight-buffered fiber of 900 μm diameter
3 – Non-metallic strength member (Glass yarn or aramid yarn)
4 – UV resistant halogen-free (LSOH) black inner jacket.
5 – Ripcord
6 – Corrugated steel tape
7 – UV resistant halogen-free (LSOH) outer jacket

Part Number	Core Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)
4.295.0.3.1.0900.0.0002	SM G.652.D	2	10,8	113
4.295.0.3.1.0900.0.0004	SM G.652.D	4	11,2	122
4.295.0.3.1.0900.0.0006	SM G.652.D	6	11,7	132
4.295.0.3.1.0900.0.0008	SM G.652.D	8	12,2	144
4.295.0.3.1.0900.0.0012	SM G.652.D	12	12,9	156
4.295.0.3.1.0900.0.0024	SM G.652.D	24	14	195

Part Number	Core Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)
4.295.0.3.1.0625.0.0002	OM1	2	10,8	113
4.295.0.3.1.0625.0.0004	OM1	4	11,2	122
4.295.0.3.1.0625.0.0006	OM1	6	11,7	132
4.295.0.3.1.0625.0.0008	OM1	8	12,2	144
4.295.0.3.1.0625.0.0012	OM1	12	12,9	156
4.295.0.3.1.0625.0.0024	OM1	24	14	195

Part Number	Core Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)
4.295.0.3.1.0502.0.0002	OM2	2	10,8	113
4.295.0.3.1.0502.0.0004	OM2	4	11,2	122
4.295.0.3.1.0502.0.0006	OM2	6	11,7	132
4.295.0.3.1.0502.0.0008	OM2	8	12,2	144
4.295.0.3.1.0502.0.0012	OM2	12	12,9	156
4.295.0.3.1.0502.0.0024	OM2	24	14	195

Part Number	Core Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)
4.295.0.3.1.0503.0.0002	OM3	2	10,8	113
4.295.0.3.1.0503.0.0004	OM3	4	11,2	122
4.295.0.3.1.0503.0.0006	OM3	6	11,7	132
4.295.0.3.1.0503.0.0008	OM3	8	12,2	144
4.295.0.3.1.0503.0.0012	OM3	12	12,9	156
4.295.0.3.1.0503.0.0024	OM3	24	14	195

	Test Standard	Specified Value	Acceptance Criteria
Maximum Installation Tension ²	IEC 60794-1-2-E1	1.0 x W(N), min. 1200 N	Fiber strainı ≤ 0.33%
Maximum Operation Tension	IEC 60794-1-2-E1	0.5 x W(N), min. 600 N	Δα ≤ 0.05 dB, No fiber strain
Crush Strength	IEC 60794-1-2-E3	1000 N / 100 mm, maks. 10 min	Δα ≤ 0.05 dB, No damage
Impact	IEC 60794-1-2-E4	10 Nm, 3 impacts, R= 300 mm	Δα ≤ 0.05 dB after the test
Torsion	IEC 60794-1-2-E7	1 m, 100N, +/- 180°, 10 cycles	Δα ≤ 0.05 dB, No damage
Repeated Bending	IEC 60794-1-2-E6	R=20x D, 100 N, 35 cycles	No damage
Bending Radius	IEC 60794-1-2-E11	R=20x D, 4 turns, 3 cycles	Δα ≤ 0.05 dB, No damage
Temperature Cycling	IEC 60794-1-2-F1	-20°C to +70°C	Δα ≤ 0.05 dB/km
Waterproofness

	Minimum Bending Radius
Operation	20 x cable Ø
Fixed	15 x cable Ø

	Temperature Range
Storage	-40°C to + 70°C	Installation	-30°C to +60°C
Transport	-40°C to + 70°C	Operating	-40°C to +70°C

Marking	Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance
