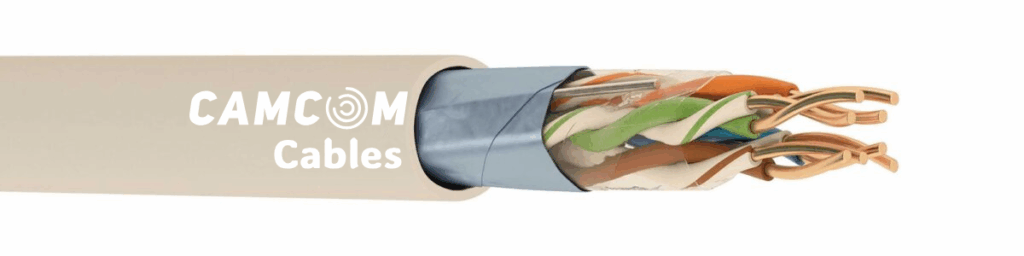

Cat 5e F/UTP PVC Ethernet Cable

Product Code: Cat 5e F/UTP PVC

1 – Conductor	:	Electrolytic solid copper conductor
2 – Insulation	:	Solid polyethylene insulation
3 – Stranding	:	Insulations are stranded into pairs and all pairs are stranded together
4 – Wrapping	:	Polyester tape
5 – Screen	:	Tinned copper earthing wire, Al/PET tape
6 – Outer Jacket	:	UV resistant PVC outer jacket

Conductor Resistance Ω/km (20 °C)	Insulation Resistance MΩ/km (20 °C)	Mutual Capacitance nF/km	Resistance Unbalance	Propagation Velocity	Characteristic Impedance Ω (1-100 MHz)	Operating Voltage V DC	Test Voltage V (DC. 1 minute)
Max. 94	5000	Max. 56	%2	%67-69	100 ±%5	250	1200

Conductor Resistance
Ω/km
(20 °C)

Insulation Resistance
MΩ/km
(20 °C)

Mutual Capacitance

nF/km

Resistance
Unbalance

Propagation
Velocity

Characteristic
Impedance
Ω
(1-100 MHz)

Operating Voltage
V DC

Test
Voltage
V
(DC. 1 minute)

Max. 94

5000

Max. 56

%67-69

100 ±%5

250

1200

Manufacturing	Flame Retardancy Test
ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801	IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2

Cat 5e F-UTP PVC (Pair)

Part Number	Pair Count	Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)	Packing Lengths (m)
3.425.2.1.2.0051.0.0004	4	0,51	5,6	17,2	39	100/500/1000

Bending Radius	Temperature Range Operating
8.0xD mm	-20°C ~ +60°C

Frequency MHz	Insertion Loss dB/100m (Max.)	Near-end Crosstalk (NEXT) dB (Min.)	Power-sum Near-end Crosstalk (PSNEXT) dB (Min.)	Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.)	Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.)	Return Loss (RL) dB (Min.)
1	2	65,3	62,3	63,8	63,8	23
4	4.1	56,3	53,3	51,8	51,8	23
8	5.8	51,8	48,8	45,7	45,7	23
10	6.5	50,3	47,3	43,8	43,8	23
16	8.2	47,2	44,2	39,7	39,7	23
20	9.3	45,8	42,8	37,8	37,8	23
25	10.4	44,3	41,3	35,8	35,8	22
31.25	11.7	42,9	39,9	33,9	33,9	21
62.5	17	38,4	35,4	27,9	27,9	18
100	22	35,3	32,3	23,8	23,8	16
