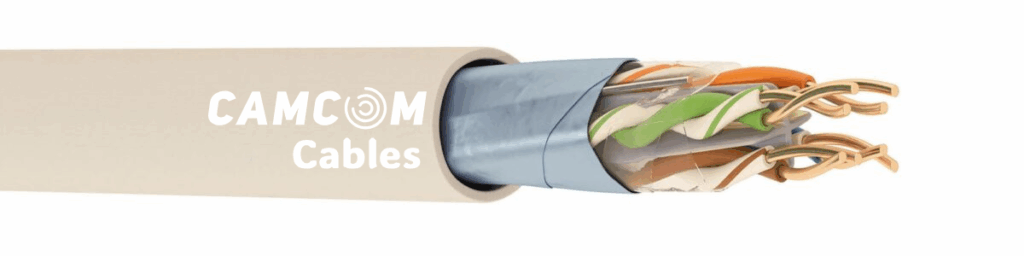

Cat 6 F/UTP LSOH Ethernet Cable
Product Code: Cat 6 F/UTP LSOH
| 1 – Conductor | : | Electrolytic solid copper conductor |
| 2 – Insulation | : | Solid polyethylene insulation |
| 3 – Stranding | : | Insulations are stranded into pairs |
| 4 – Seperator | : | Pairs are stranded together with star shaped separator |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Outer Jacket | : | UV resistant halogen-free outer jacket |
| Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km (20 °C) |
Mutual Capacitance
nF/km |
Resistance Unbalance |
Propagation Velocity |
Characteristic Impedance Ω (1-250 MHz) |
Operating Voltage V DC |
Test Voltage V (DC. 1 minute) |
|---|---|---|---|---|---|---|---|
| Max. 94 | 5000 | Max. 56 | %2 | %67-69 | 100 ±%5 | 250 | 120 |
| Manufacturing | Smoke Density Test | Flame Retardancy Test | Corrosive Gas Test | Halogen-free Test |
|---|---|---|---|---|
| ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801 |
IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 |
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 |
IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 |
Cat 6 F-UTP LSOH (Pair)
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.426.2.1.3.0057.0.0004 | 4 | 0,57 | 6,6 | 21,1 | 50 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 8.0xD mm | -20°C ~ +60°C |
| Frequency
MHz |
Insertion Loss dB/100m (Max.) |
Near-end Crosstalk (NEXT) dB (Min.) |
Power-sum Near-end Crosstalk (PSNEXT) dB (Min.) |
Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.) |
Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.) |
Return Loss (RL) dB (Min.) |
|---|---|---|---|---|---|---|
| 1 | 2 | 74.3 | 72.3 | 67.8 | 64.8 | 20 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6 | 59.3 | 57.3 | 47.8 | 44.8 | 25 |
| 16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25 |
| 20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 24.3 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 23.6 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 21.5 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 20.1 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 18 |
| 200 | 29 | 39.8 | 37.8 | 21.8 | 18.8 | 17.3 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 16.8 |
