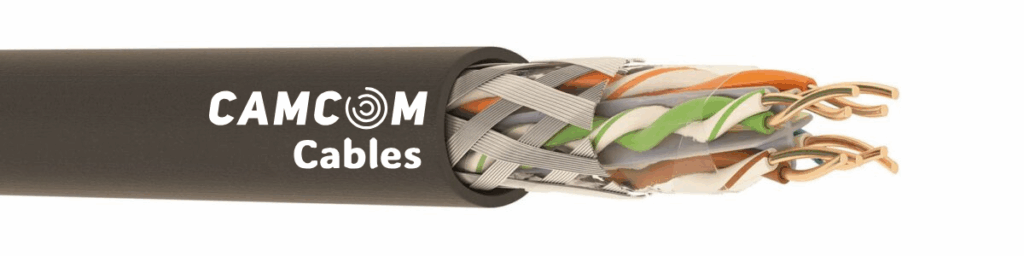

Cat 6 S/UTP PE Ethernet Cable

Product Code: Cat 6 S/UTP PE

1 – Conductor	:	Electrolytic solid copper conductor
2 – Insulation	:	Solid polyethylene insulation
3 – Stranding	:	Insulations are stranded into pairs
4 – Seperator	:	Pairs are stranded together with star shaped separator
5 – Wrapping	:	Polyester tape
6 – Screen	:	Tinned copper braiding
7 – Outer Jacket	:	UV resistant polyethylene outer jacket

Conductor Resistance Ω/km (20 °C)	Insulation Resistance MΩ/km (20 °C)	Mutual Capacitance nF/km	Resistance Unbalance	Propagation Velocity	Characteristic Impedance Ω (1-250 MHz)	Operating Voltage V DC	Test Voltage V (DC. 1 minute)
Max. 94	5000	Max. 56	%2	%67-69	100 ±%5	250	1200

Conductor Resistance
Ω/km
(20 °C)

Insulation Resistance
MΩ/km
(20 °C)

Mutual Capacitance

nF/km

Resistance
Unbalance

Propagation
Velocity

Characteristic
Impedance
Ω
(1-250 MHz)

Operating Voltage
V DC

Test
Voltage
V
(DC. 1 minute)

Max. 94

5000

Max. 56

%67-69

100 ±%5

250

1200

Manufacturing
ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801

Cat 6 S-UTP PE (Pair)

Part Number	Pair Count	Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)	Packing Lengths (m)
3.436.2.1.1.0057.0.0004	4	0,57	6,6	36	56	100/500/1000

Bending Radius	Temperature Range Operating
8.0xD mm	-20°C ~ +60°C

Frequency MHz	Insertion Loss dB/100m (Max.)	Near-end Crosstalk (NEXT) dB (Min.)	Power-sum Near-end Crosstalk (PSNEXT) dB (Min.)	Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.)	Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.)	Return Loss (RL) dB (Min.)
1	2	74.3	72.3	67.8	64.8	20
4	3.8	65.3	63.3	55.8	52.8	23
8	5.3	60.8	58.8	49.7	46.7	24.5
10	6	59.3	57.3	47.8	44.8	25
16	7.6	56.2	54.2	43.7	40.7	25
20	8.5	54.8	52.8	41.8	38.8	24.3
25	9.5	53.3	51.3	39.8	36.8	23.6
31.25	10.7	51.9	49.9	37.9	34.9	21.5
62.5	15.4	47.4	45.4	31.9	28.9	20.1
100	19.8	44.3	42.3	27.8	24.8	18
200	29	39.8	37.8	21.8	18.8	17.3
250	32.8	38.3	36.3	19.8	16.8	16.8
