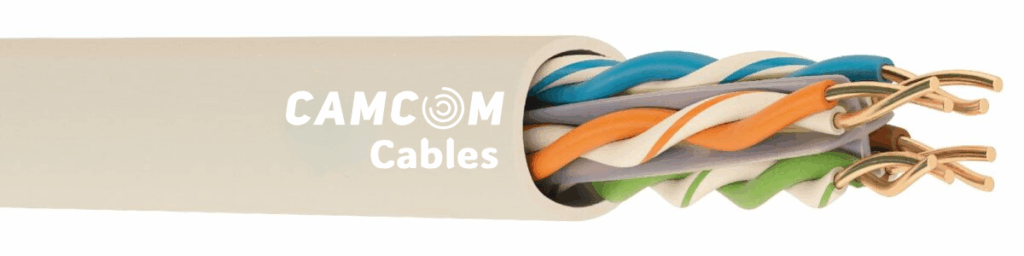

Cat 6A U/UTP PVC Ethernet Cable
Product Code: Cat 6A U/UTP PVC
| 1 – Conductor | : | Electrolytic solid copper conductor |
| 2 – Insulation | : | Solid polyethylene insulation |
| 3 – Stranding | : | Insulations are stranded into pairs |
| 4 – Seperator | : | Pairs are stranded together with star shaped separator |
| 5 – Outer Jacket | : | UV resistant PVC outer jacket |
| Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km (20 °C) |
Mutual Capacitance
nF/km |
Resistance Unbalance |
Propagation Velocity |
Characteristic Impedance Ω (1-250 MHz) |
Operating Voltage V DC |
Test Voltage V (DC. 1 minute) |
|---|---|---|---|---|---|---|---|
| Max. 94 | 5000 | Max. 56 | %2 | %67-69 | 100 ±%5 | 250 | 1200 |
| Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km (20 °C) |
Mutual Capacitance
nF/km |
Resistance Unbalance |
Propagation Velocity |
Characteristic Impedance Ω (1-500 MHz) |
Operating Voltage V DC |
Test Voltage V (DC. 1 minute) |
|---|---|---|---|---|---|---|---|
| Max. 94 | 5000 | Max. 56 | %2 | %78-80 | 100 ±%5 | 125 | 1200 |
| Part Number | Pair Count | Conductor Diameter (AWG) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.46A00.02.1.0.0.2|0.A1Db.04 | 4 | 23 | 6.0 | 18.9 | 43 | 305/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 8.0xD mm | -20°C ~ +60°C |
| Frequency
MHz |
Insertion Loss dB/100m (Max.) |
Near-end Crosstalk (NEXT) dB (Min.) |
Power-sum Near-end Crosstalk (PSNEXT) dB (Min.) |
Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.) |
Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.) |
Return Loss (RL) dB (Min.) |
|---|---|---|---|---|---|---|
| 1 | 2.1 | 74.3 | 72.3 | 67.8 | 64.8 | 20 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 5.9 | 59.3 | 57.3 | 47.8 | 44.8 | 25 |
| 16 | 7.5 | 56.2 | 54.2 | 43.7 | 40.7 | 25 |
| 20 | 8.4 | 54.8 | 52.8 | 41.8 | 38.8 | 25 |
| 25 | 9.4 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.5 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15 | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 |
| 100 | 19.1 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
| 200 | 27.6 | 39.8 | 37.8 | 21.8 | 18.8 | 18 |
| 250 | 31.1 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
| 300 | 34.3 | 37.1 | 35.1 | 18.3 | 15.3 | 16.8 |
| 400 | 40.1 | 35.3 | 33.3 | 15.8 | 12.8 | 15.9 |
| 500 | 45.3 | 33.8 | 31.8 | 13.8 | 10.8 | 15.2 |
