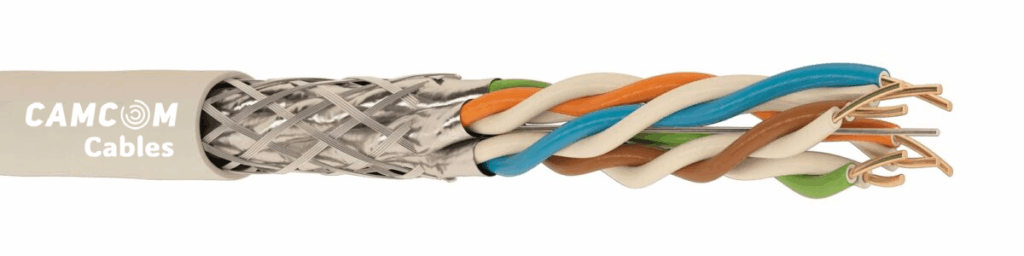

Cat 7A S/FTP PVC Ethernet Cable

Product Code:

1 – Conductor	:	Electrolytic solid copper conductor
2 – Insulation	:	Foamed polyethylene cladded with solid polyethylene
3 – Indv. Stranding	:	Insulations are stranded into pairs
4 – Indv. Screen	:	Al/PET tape
5 – Screen Wire	:	A tinned copper earthing wire between screened pairs
6 – Ovrl. Stranding	:	In layers
7 – Ovrl. Screen	:	Tinned copper braiding
8 – Outer Jacket	:	UV resistant PVC outer jacket

Conductor Resistance Ω/km (20 °C)	Insulation Resistance MΩ/km (20 °C)	Mutual Capacitance nF/km	Resistance Unbalance	Propagation Velocity	Characteristic Impedance Ω (1-1200 MHz)	Operating Voltage V DC	Test Voltage V (DC. 1 minute)
Max. 94	5000	Max. 56	%2	%78-80	100 ±%5	125	1200

Conductor Resistance
Ω/km
(20 °C)

Insulation Resistance
MΩ/km
(20 °C)

Mutual Capacitance

nF/km

Resistance
Unbalance

Propagation
Velocity

Characteristic
Impedance
Ω
(1-1200 MHz)

Operating Voltage
V DC

Test
Voltage
V
(DC. 1 minute)

Max. 94

5000

Max. 56

%78-80

100 ±%5

125

1200

Manufacturing	Flame Retardancy Test
ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801	IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2

Bending Radius	Temperature Range Operating
8.0xD mm	-20°C ~ +60°C

Frequency MHz	Insertion Loss dB/100m (Max.)	Near-end Crosstalk (NEXT) dB (Min.)	Power-sum Near-end Crosstalk (PSNEXT) dB (Min.)	Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.)	Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.)	Return Loss (RL) dB (Min.)
1	NS	78.0	75.0	78.0	75.0	20.0
4	3.74	78.0	75.0	78.0	75.0	23.0
10	5.86	78.0	75.0	74.0	71.0	25.0
20	8.29	78.0	75.0	68.0	65.0	25.0
31.25	10.41	78.0	75.0	64.1	61.1	23.6
62.5	14.88	75.5	72.5	58.0	55.1	21.5
100	18.02	72.4	69.4	54.0	51.0	20.1
200	23.56	69.8	66.8	50.0	47.5	18.9
300	30.97	66.4	63.4	46.0	43.0	17.3
400	34.19	65.2	62.2	44.5	41.5	17.3
500	45.26	61.9	58.9	40.0	37.0	17.3
600	50.10	60.7	57.7	38.4	35.4	17.3
800	58.92	58.9	55.9	35.9	32.9	16.1
1000	66.93	57.4	54.4	34.0	31.0	15.1
1200	74.36	56.2	53.2	32.4	29.4	14.3
