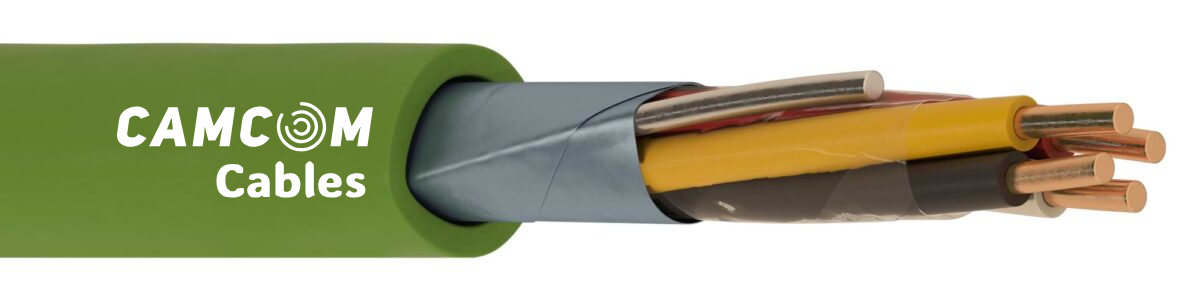

EIB-Y(St)Y BUS Cable

Product Code: EIB-Y(St)Y

1 – Conductor	:	Class 1 electrolytic solid copper (IEC 60228, DIN VDE 0295, EN 60228)
2 – Insulation	:	PVC compound (VDE 0815, EN 50290-2-21)
3 – Stranding	:	Two pairs are stranded into a star-quad, above two pairs are stranded together in layers
4 – Wrapping	:	Polyester tape
5 – Screen	:	Tinned copper earthing wire, Al/PET tape
6 – Outer Jacket	:	UV resistant PVC outer jacket. RAL 6018 (Green)

Conductor Diameter	Conductor Resistance Ω/km (20 °C)	Insulation Resistance (@500V DC) MΩ/km	Mutual Capacitance nF/km	Operating Voltage V DC	Test Voltage (@ 1 minute) V DC
0.60 mm	130.0	100	100	300	800
0.80 mm	73.2	100	100	300	800
1.00 mm	44.6	100	100	300	1000
1.50 mm²	24.6	100	100	300	1000
2.50 mm²	15.1	100	100	300	1000

Flame Retardancy Test
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2

Bending Radius	Temperature Range Operating
10xD mm	-30°C ~ +70°C
