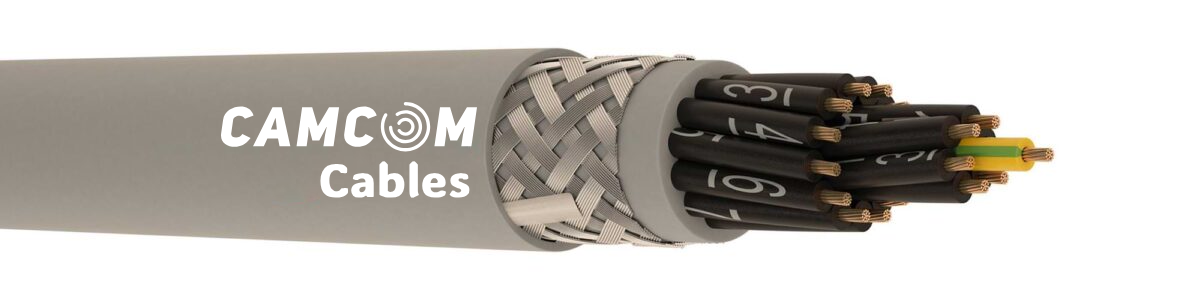

Flex-CH-JZ 0.6/1kV Control Cable
Product Code: Flex-CH-JZ 0.6/1kV
1 – Conductor : Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : Halogen-free (DIN VDE 0207, EN 50363-3, TS EN 50290-2-26 TI2), Black insulation, white number coded (DIN VDE 0293, TS EN 50334)
3 – Stranding : In layers
4 – Inner Jacket : UV resistant halogen-free inner jacket (TS EN 50290-2-27). RAL 7001 (Grey)
5 – Screen : Tinned copper braiding
6 – Outer Jacket : UV resistant halogen-free outer jacket (TS EN 50290-2-27). RAL 7001 (Grey)
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km |
Current Carrying Capacity A |
Test Voltage V (DC, 1 minute) |
Operating Voltage V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 9 | 4000 | 600/1000 |
| 0.75 mm² | 26.0 | 20 | 12 | 4000 | 600/1000 |
| 1.00 mm² | 19.5 | 20 | 15 | 4000 | 600/1000 |
| 1.5 mm² | 13.3 | 20 | 18 | 4000 | 600/1000 |
| 2.5 mm² | 7.98 | 20 | 26 | 4000 | 600/1000 |
| 4.0 mm² | 4.95 | 20 | 34 | 4000 | 600/1000 |
| 6.0 mm² | 3.30 | 20 | 44 | 4000 | 600/1000 |
| 10.0 mm² | 1.91 | 20 | 61 | 4000 | 600/1000 |
| 16.0 mm² | 1.21 | 20 | 82 | 4000 | 600/1000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|
| IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 EN 60332-1-2 VDE 0482-332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.0050.1.0002 | 2 | 0,5 | 8,2 | 21,8 | 96 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0003 | 3 | 0,5 | 8,7 | 27,3 | 112 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0004 | 4 | 0,5 | 9,5 | 33 | 130 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0005 | 5 | 0,5 | 10,4 | 39 | 155 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0006 | 6 | 0,5 | 11,3 | 44,7 | 181 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0007 | 7 | 0,5 | 11,3 | 49,1 | 190 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0008 | 8 | 0,5 | 12,2 | 55,9 | 209 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0009 | 9 | 0,5 | 14,3 | 67,9 | 255 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0010 | 10 | 0,5 | 14,3 | 72,2 | 259 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0012 | 12 | 0,5 | 14,7 | 83,5 | 284 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0014 | 14 | 0,5 | 15,4 | 93,1 | 314 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0016 | 16 | 0,5 | 16,2 | 102,7 | 349 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0018 | 18 | 0,5 | 17,2 | 115,3 | 390 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0020 | 20 | 0,5 | 18 | 125,3 | 420 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0024 | 24 | 0,5 | 20 | 148,3 | 490 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0025 | 25 | 0,5 | 20 | 152,7 | 512 | 100/500/1000 |
| 3.607.2.3.3.0050.2.0027 | 27 | 0,5 | 20,5 | 166,5 | 533 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.0075.1.0002 | 2 | 0,75 | 8,7 | 27,2 | 111 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0003 | 3 | 0,75 | 9,3 | 34,6 | 129 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0004 | 4 | 0,75 | 10,2 | 42,6 | 153 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0005 | 5 | 0,75 | 11 | 51,1 | 180 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0006 | 6 | 0,75 | 12 | 59,1 | 210 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0007 | 7 | 0,75 | 12 | 65,7 | 221 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0008 | 8 | 0,75 | 13 | 74,1 | 244 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0009 | 9 | 0,75 | 15,2 | 90,7 | 298 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0010 | 10 | 0,75 | 15,2 | 97,2 | 303 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0012 | 12 | 0,75 | 15,6 | 110,9 | 332 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0014 | 14 | 0,75 | 16,4 | 124,8 | 369 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0016 | 16 | 0,75 | 17,4 | 141,8 | 417 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0018 | 18 | 0,75 | 18,3 | 156,2 | 460 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0020 | 20 | 0,75 | 19,2 | 170,7 | 496 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0024 | 24 | 0,75 | 21,3 | 207,5 | 583 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0025 | 25 | 0,75 | 21,3 | 214 | 610 | 100/500/1000 |
| 3.607.2.3.3.0075.2.0027 | 27 | 0,75 | 21,9 | 228,3 | 636 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.0100.1.0002 | 2 | 1 | 9,2 | 31,3 | 124 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0003 | 3 | 1 | 9,8 | 40,7 | 146 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0004 | 4 | 1 | 10,6 | 50,1 | 170 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0005 | 5 | 1 | 11,7 | 60,5 | 204 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0006 | 6 | 1 | 12,7 | 70,6 | 238 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0007 | 7 | 1 | 12,7 | 78,8 | 252 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0008 | 8 | 1 | 13,7 | 89,3 | 278 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0009 | 9 | 1 | 16,1 | 106,4 | 336 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0010 | 10 | 1 | 16,1 | 114,6 | 342 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0012 | 12 | 1 | 16,6 | 134,1 | 379 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0014 | 14 | 1 | 17,5 | 151,8 | 426 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0016 | 16 | 1 | 18,4 | 169,5 | 474 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0018 | 18 | 1 | 19,5 | 187,6 | 528 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0020 | 20 | 1 | 20,6 | 212,7 | 582 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0024 | 24 | 1 | 22,8 | 249,5 | 676 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0025 | 25 | 1 | 22,8 | 257,7 | 707 | 100/500/1000 |
| 3.607.2.3.3.0100.2.0027 | 27 | 1 | 23,2 | 275 | 726 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.0150.1.0002 | 2 | 1,5 | 9,8 | 41,7 | 145 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0003 | 3 | 1,5 | 10,5 | 55,5 | 173 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0004 | 4 | 1,5 | 11,4 | 69,6 | 206 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0005 | 5 | 1,5 | 12,6 | 85,1 | 247 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0006 | 6 | 1,5 | 13,5 | 100,1 | 283 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0007 | 7 | 1,5 | 13,5 | 112,9 | 300 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0008 | 8 | 1,5 | 14,7 | 133,4 | 341 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0009 | 9 | 1,5 | 17,3 | 151,8 | 409 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0010 | 10 | 1,5 | 17,3 | 164,5 | 419 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0012 | 12 | 1,5 | 17,8 | 190,9 | 464 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0014 | 14 | 1,5 | 18,7 | 217,7 | 518 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0016 | 16 | 1,5 | 19,8 | 247,6 | 586 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0018 | 18 | 1,5 | 20,9 | 279,3 | 652 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0020 | 20 | 1,5 | 22,1 | 307,2 | 717 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0024 | 24 | 1,5 | 24,6 | 362,8 | 839 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0025 | 25 | 1,5 | 24,6 | 375,6 | 879 | 100/500/1000 |
| 3.607.2.3.3.0150.2.0027 | 27 | 1,5 | 25,1 | 402,1 | 906 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.0250.1.0002 | 2 | 2,5 | 10,9 | 60,1 | 186 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0003 | 3 | 2,5 | 11,6 | 83,4 | 225 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0004 | 4 | 2,5 | 12,7 | 106,6 | 270 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0005 | 5 | 2,5 | 14 | 130,3 | 324 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0006 | 6 | 2,5 | 15,2 | 159,4 | 382 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0007 | 7 | 2,5 | 15,2 | 180,8 | 408 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0008 | 8 | 2,5 | 16,4 | 203,4 | 451 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0009 | 9 | 2,5 | 19,2 | 231,2 | 532 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0010 | 10 | 2,5 | 19,2 | 252,6 | 549 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0012 | 12 | 2,5 | 20 | 299,1 | 627 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0014 | 14 | 2,5 | 21 | 347,8 | 707 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0016 | 16 | 2,5 | 22,2 | 392,7 | 797 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0018 | 18 | 2,5 | 23,4 | 437,4 | 883 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0020 | 20 | 2,5 | 24,9 | 482,8 | 977 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0024 | 24 | 2,5 | 27,6 | 579,4 | 1144 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0025 | 25 | 2,5 | 27,6 | 600,7 | 1199 | 100/500/1000 |
| 3.607.2.3.3.0250.2.0027 | 27 | 2,5 | 28,1 | 644,6 | 1240 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.0400.1.0002 | 2 | 4 | 13 | 89,7 | 266 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0003 | 3 | 4 | 14 | 126,1 | 328 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0004 | 4 | 4 | 15,2 | 168,1 | 397 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0005 | 5 | 4 | 16,6 | 206,3 | 474 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0006 | 6 | 4 | 18,3 | 242,7 | 560 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0007 | 7 | 4 | 18,3 | 276,8 | 601 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0008 | 8 | 4 | 19,9 | 316 | 673 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0009 | 9 | 4 | 23,4 | 360,7 | 798 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0010 | 10 | 4 | 23,4 | 399,7 | 829 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0012 | 12 | 4 | 24,3 | 464,8 | 939 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0014 | 14 | 4 | 25,6 | 539,8 | 1059 | 100/500/1000 |
| 3.607.2.3.3.0400.2.0016 | 16 | 4 | 27,2 | 618,6 | 1199 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.0600.1.0002 | 2 | 6 | 14,3 | 129,3 | 335 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0003 | 3 | 6 | 15,2 | 185,1 | 415 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0004 | 4 | 6 | 16,5 | 237,7 | 497 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0005 | 5 | 6 | 18,3 | 293,8 | 607 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0006 | 6 | 6 | 20 | 350,3 | 715 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0007 | 7 | 6 | 20 | 401,5 | 770 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0008 | 8 | 6 | 21,9 | 460,3 | 871 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0009 | 9 | 6 | 25,7 | 518,5 | 1022 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0010 | 10 | 6 | 25,7 | 569,7 | 1062 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0012 | 12 | 6 | 26,8 | 680 | 1227 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0014 | 14 | 6 | 28,1 | 795,3 | 1386 | 100/500/1000 |
| 3.607.2.3.3.0600.2.0016 | 16 | 6 | 29,7 | 977,7 | 1588 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.1000.1.0002 | 2 | 10 | 17,7 | 214,3 | 524 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0003 | 3 | 10 | 18,2 | 303,5 | 652 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0004 | 4 | 10 | 20 | 397,4 | 800 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0005 | 5 | 10 | 22 | 494 | 978 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0006 | 6 | 10 | 24,2 | 586,5 | 1156 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0007 | 7 | 10 | 24,2 | 675,1 | 1250 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0008 | 8 | 10 | 26,4 | 767,8 | 1405 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0009 | 9 | 10 | 31,2 | 872,5 | 1643 | 100/500/1000 |
| 3.607.2.3.3.1000.2.0010 | 10 | 10 | 31,2 | 961,1 | 1715 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.607.2.3.3.1600.1.0002 | 2 | 16 | 21,1 | 321,1 | 755 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0003 | 3 | 16 | 20,7 | 467,2 | 967 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0004 | 4 | 16 | 22,8 | 610,4 | 1185 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0005 | 5 | 16 | 25,1 | 754,3 | 1443 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0006 | 6 | 16 | 30,1 | 910,2 | 1698 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0007 | 7 | 16 | 30,1 | 1049,7 | 1845 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0008 | 8 | 16 | 33 | 1195,4 | 2081 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0009 | 9 | 16 | 38,5 | 1347,9 | 2356 | 100/500/1000 |
| 3.607.2.3.3.1600.2.0010 | 10 | 16 | 38,5 | 1487,5 | 2488 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -30°C~+70°C |
