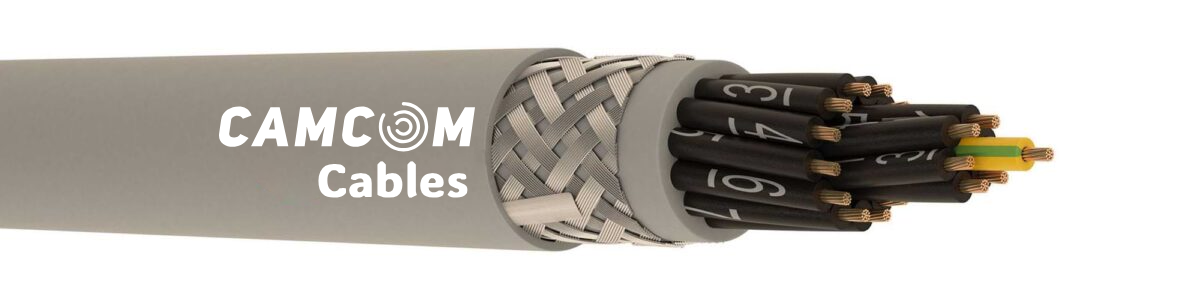

Flex-CY-JZ 0.6/1kV Control Cable

Product Code: Flex-CY-JZ 0.6/1kV

  • Cable Construction
  • Technical Data
  • Standards
  • Types
  • Mechanical Characteristics

1 – Conductor : Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : PVC (DIN VDE 0207, EN 50363-3, TS EN 50290-2-21 TI2), Black insulation, white number coded (DIN VDE 0293, TS EN 50334)
3 – Stranding : In layers
4 – Inner Jacket : UV resistant PVC inner jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey)
5 – Screen : Tinned copper braiding
6 – Outer Jacket : UV resistant PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey) or Transparent

Cross
Section		 Conductor Resistance
Ω/km (20 °C)		 Insulation Resistance
MΩ/km		 Current Carrying Capacity
A		 Test Voltage
V (DC, 1 minute)		 Operating Voltage
V DC
0.50 mm² 39.0 20 9 4000 600/1000
0.75 mm² 26.0 20 12 4000 600/1000
1.00 mm² 19.5 20 15 4000 600/1000
1.5 mm² 13.3 20 18 4000 600/1000
2.5 mm² 7.98 20 26 4000 600/1000
4.0 mm² 4.95 20 34 4000 600/1000
6.0 mm² 3.30 20 44 4000 600/1000
10.0 mm² 1.91 20 61 4000 600/1000
16.0 mm² 1.21 20 82 4000 600/1000
Flame Retardancy Test
IEC 60332-1-2
EN 60332-1-2
VDE 0482-332-1-2
Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.0050.1.0002 2 0,5 8,2 21,8 101 100/500/1000
3.607.2.2.2.0050.2.0003 3 0,5 8,7 27,2 118 100/500/1000
3.607.2.2.2.0050.2.0004 4 0,5 9,5 32,9 137 100/500/1000
3.607.2.2.2.0050.2.0005 5 0,5 10,4 38,9 165 100/500/1000
3.607.2.2.2.0050.2.0006 6 0,5 11,3 44,6 193 100/500/1000
3.607.2.2.2.0050.2.0007 7 0,5 11,3 49 202 100/500/1000
3.607.2.2.2.0050.2.0008 8 0,5 12,2 55,8 223 100/500/1000
3.607.2.2.2.0050.2.0009 9 0,5 14,3 67,8 272 100/500/1000
3.607.2.2.2.0050.2.0010 10 0,5 14,3 72,2 275 100/500/1000
3.607.2.2.2.0050.2.0012 12 0,5 14,7 83,5 303 100/500/1000
3.607.2.2.2.0050.2.0014 14 0,5 15,4 93 336 100/500/1000
3.607.2.2.2.0050.2.0016 16 0,5 16,2 102,7 373 100/500/1000
3.607.2.2.2.0050.2.0018 18 0,5 17,2 115,2 419 100/500/1000
3.607.2.2.2.0050.2.0020 20 0,5 18 125,2 451 100/500/1000
3.607.2.2.2.0050.2.0024 24 0,5 20 148,3 525 100/500/1000
3.607.2.2.2.0050.2.0025 25 0,5 20 152,7 551 100/500/1000
3.607.2.2.2.0050.2.0027 27 0,5 20,5 166,5 572 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.0075.1.0002 2 0,75 8,7 27,2 116 100/500/1000
3.607.2.2.2.0075.2.0003 3 0,75 9,3 34,6 136 100/500/1000
3.607.2.2.2.0075.2.0004 4 0,75 10,2 42,5 161 100/500/1000
3.607.2.2.2.0075.2.0005 5 0,75 11 51,1 191 100/500/1000
3.607.2.2.2.0075.2.0006 6 0,75 12 59 223 100/500/1000
3.607.2.2.2.0075.2.0007 7 0,75 12 65,6 236 100/500/1000
3.607.2.2.2.0075.2.0008 8 0,75 13 74 259 100/500/1000
3.607.2.2.2.0075.2.0009 9 0,75 15,2 90,6 316 100/500/1000
3.607.2.2.2.0075.2.0010 10 0,75 15,2 97,2 321 100/500/1000
3.607.2.2.2.0075.2.0012 12 0,75 15,6 110,8 353 100/500/1000
3.607.2.2.2.0075.2.0014 14 0,75 16,4 124,7 393 100/500/1000
3.607.2.2.2.0075.2.0016 16 0,75 17,4 141,8 445 100/500/1000
3.607.2.2.2.0075.2.0018 18 0,75 18,3 156,1 491 100/500/1000
3.607.2.2.2.0075.2.0020 20 0,75 19,2 170,6 530 100/500/1000
3.607.2.2.2.0075.2.0024 24 0,75 21,3 207,4 622 100/500/1000
3.607.2.2.2.0075.2.0025 25 0,75 21,3 214 653 100/500/1000
3.607.2.2.2.0075.2.0027 27 0,75 21,9 228,2 680 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.0100.1.0002 2 1 9,2 31,3 130 100/500/1000
3.607.2.2.2.0100.2.0003 3 1 9,8 40,7 153 100/500/1000
3.607.2.2.2.0100.2.0004 4 1 10,6 50,1 179 100/500/1000
3.607.2.2.2.0100.2.0005 5 1 11,7 60,5 216 100/500/1000
3.607.2.2.2.0100.2.0006 6 1 12,7 70,5 253 100/500/1000
3.607.2.2.2.0100.2.0007 7 1 12,7 78,7 268 100/500/1000
3.607.2.2.2.0100.2.0008 8 1 13,7 89,2 295 100/500/1000
3.607.2.2.2.0100.2.0009 9 1 16,1 106,3 357 100/500/1000
3.607.2.2.2.0100.2.0010 10 1 16,1 114,5 363 100/500/1000
3.607.2.2.2.0100.2.0012 12 1 16,6 134 403 100/500/1000
3.607.2.2.2.0100.2.0014 14 1 17,5 151,8 453 100/500/1000
3.607.2.2.2.0100.2.0016 16 1 18,4 169,5 506 100/500/1000
3.607.2.2.2.0100.2.0018 18 1 19,5 187,5 564 100/500/1000
3.607.2.2.2.0100.2.0020 20 1 20,6 212,6 621 100/500/1000
3.607.2.2.2.0100.2.0024 24 1 22,8 249,5 720 100/500/1000
3.607.2.2.2.0100.2.0025 25 1 22,8 257,7 757 100/500/1000
3.607.2.2.2.0100.2.0027 27 1 23,2 274,9 775 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.0150.1.0002 2 1,5 9,8 41,7 152 100/500/1000
3.607.2.2.2.0150.2.0003 3 1,5 10,5 55,5 181 100/500/1000
3.607.2.2.2.0150.2.0004 4 1,5 11,4 69,6 216 100/500/1000
3.607.2.2.2.0150.2.0005 5 1,5 12,6 85,1 260 100/500/1000
3.607.2.2.2.0150.2.0006 6 1,5 13,5 100 299 100/500/1000
3.607.2.2.2.0150.2.0007 7 1,5 13,5 112,8 318 100/500/1000
3.607.2.2.2.0150.2.0008 8 1,5 14,7 133,3 360 100/500/1000
3.607.2.2.2.0150.2.0009 9 1,5 17,3 151,7 432 100/500/1000
3.607.2.2.2.0150.2.0010 10 1,5 17,3 164,5 442 100/500/1000
3.607.2.2.2.0150.2.0012 12 1,5 17,8 190,8 491 100/500/1000
3.607.2.2.2.0150.2.0014 14 1,5 18,7 217,6 548 100/500/1000
3.607.2.2.2.0150.2.0016 16 1,5 19,8 247,5 621 100/500/1000
3.607.2.2.2.0150.2.0018 18 1,5 20,9 279,2 692 100/500/1000
3.607.2.2.2.0150.2.0020 20 1,5 22,1 307,1 760 100/500/1000
3.607.2.2.2.0150.2.0024 24 1,5 24,6 362,7 889 100/500/1000
3.607.2.2.2.0150.2.0025 25 1,5 24,6 375,5 934 100/500/1000
3.607.2.2.2.0150.2.0027 27 1,5 25,1 402 961 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.0250.1.0002 2 2,5 10,9 60,1 193 100/500/1000
3.607.2.2.2.0250.2.0003 3 2,5 11,6 83,4 235 100/500/1000
3.607.2.2.2.0250.2.0004 4 2,5 12,7 106,5 282 100/500/1000
3.607.2.2.2.0250.2.0005 5 2,5 14 130,3 341 100/500/1000
3.607.2.2.2.0250.2.0006 6 2,5 15,2 159,4 402 100/500/1000
3.607.2.2.2.0250.2.0007 7 2,5 15,2 180,8 429 100/500/1000
3.607.2.2.2.0250.2.0008 8 2,5 16,4 203,4 474 100/500/1000
3.607.2.2.2.0250.2.0009 9 2,5 19,2 231,2 560 100/500/1000
3.607.2.2.2.0250.2.0010 10 2,5 19,2 252,5 576 100/500/1000
3.607.2.2.2.0250.2.0012 12 2,5 20 299 659 100/500/1000
3.607.2.2.2.0250.2.0014 14 2,5 21 347,7 743 100/500/1000
3.607.2.2.2.0250.2.0016 16 2,5 22,2 392,7 839 100/500/1000
3.607.2.2.2.0250.2.0018 18 2,5 23,4 437,4 931 100/500/1000
3.607.2.2.2.0250.2.0020 20 2,5 24,9 482,7 1030 100/500/1000
3.607.2.2.2.0250.2.0024 24 2,5 27,6 579,4 1204 100/500/1000
3.607.2.2.2.0250.2.0025 25 2,5 27,6 600,7 1266 100/500/1000
3.607.2.2.2.0250.2.0027 27 2,5 28,1 644,6 1306 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.0400.1.0002 2 4 13 89,7 278 100/500/1000
3.607.2.2.2.0400.2.0003 3 4 14 126 343 100/500/1000
3.607.2.2.2.0400.2.0004 4 4 15,2 168 415 100/500/1000
3.607.2.2.2.0400.2.0005 5 4 16,6 206,2 499 100/500/1000
3.607.2.2.2.0400.2.0006 6 4 18,3 242,6 591 100/500/1000
3.607.2.2.2.0400.2.0007 7 4 18,3 276,7 633 100/500/1000
3.607.2.2.2.0400.2.0008 8 4 19,9 315,9 708 100/500/1000
3.607.2.2.2.0400.2.0009 9 4 23,4 360,6 840 100/500/1000
3.607.2.2.2.0400.2.0010 10 4 23,4 399,7 870 100/500/1000
3.607.2.2.2.0400.2.0012 12 4 24,3 464,8 987 100/500/1000
3.607.2.2.2.0400.2.0014 14 4 25,6 539,8 1114 100/500/1000
3.607.2.2.2.0400.2.0016 16 4 27,2 618,6 1260 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.0600.1.0002 2 6 14,3 129,3 348 100/500/1000
3.607.2.2.2.0600.2.0003 3 6 15,2 185 432 100/500/1000
3.607.2.2.2.0600.2.0004 4 6 16,5 237,7 518 100/500/1000
3.607.2.2.2.0600.2.0005 5 6 18,3 293,8 634 100/500/1000
3.607.2.2.2.0600.2.0006 6 6 20 350,3 750 100/500/1000
3.607.2.2.2.0600.2.0007 7 6 20 401,5 807 100/500/1000
3.607.2.2.2.0600.2.0008 8 6 21,9 460,2 912 100/500/1000
3.607.2.2.2.0600.2.0009 9 6 25,7 518,4 1071 100/500/1000
3.607.2.2.2.0600.2.0010 10 6 25,7 569,6 1108 100/500/1000
3.607.2.2.2.0600.2.0012 12 6 26,8 679,9 1282 100/500/1000
3.607.2.2.2.0600.2.0014 14 6 28,1 795,3 1448 100/500/1000
3.607.2.2.2.0600.2.0016 16 6 29,7 977,7 1657 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.1000.1.0002 2 10 17,7 214,3 545 100/500/1000
3.607.2.2.2.1000.2.0003 3 10 18,8 304,4 679 100/500/1000
3.607.2.2.2.1000.2.0004 4 10 20,8 398,8 834 100/500/1000
3.607.2.2.2.1000.2.0005 5 10 23 495,5 1023 100/500/1000
3.607.2.2.2.1000.2.0006 6 10 25,2 588,2 1212 100/500/1000
3.607.2.2.2.1000.2.0007 7 10 25,2 676,8 1310 100/500/1000
3.607.2.2.2.1000.2.0008 8 10 27,5 769,7 1470 100/500/1000
3.607.2.2.2.1000.2.0009 9 10 32,4 875,2 1721 100/500/1000
3.607.2.2.2.1000.2.0010 10 10 32,4 963,8 1790 100/500/1000



Part Number Conductor Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.607.2.2.2.1600.1.0002 2 16 21,1 321,1 785 100/500/1000
3.607.2.2.2.1600.2.0003 3 16 22,7 470,7 1007 100/500/1000
3.607.2.2.2.1600.2.0004 4 16 25 614,5 1235 100/500/1000
3.607.2.2.2.1600.2.0005 5 16 27,6 758,9 1509 100/500/1000
3.607.2.2.2.1600.2.0006 6 16 30,1 910,2 1781 100/500/1000
3.607.2.2.2.1600.2.0007 7 16 30,1 1049,7 1931 100/500/1000
3.607.2.2.2.1600.2.0008 8 16 33 1195,4 2175 100/500/1000
3.607.2.2.2.1600.2.0009 9 16 38,5 1347,9 2463 100/500/1000
3.607.2.2.2.1600.2.0010 10 16 38,5 1487,5 2596 100/500/1000
Bending Radius Temperature Range
Operating
10xD mm -30°C~+70°C
