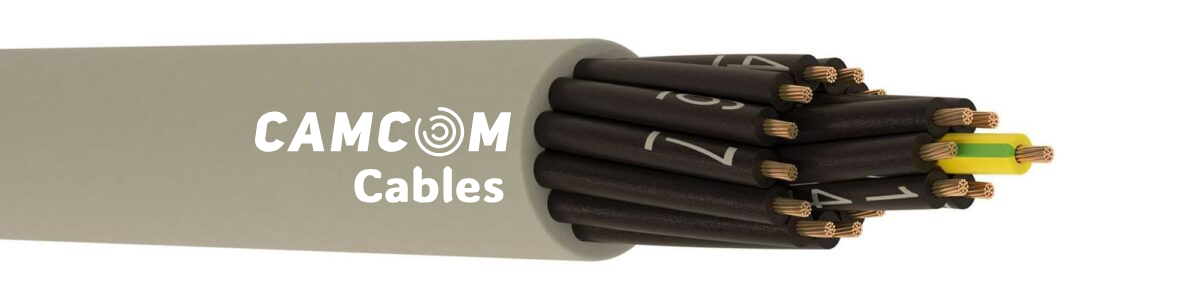

Flex-H-JZ 0.6/1kV Control Cable
Product Code: Flex-H-JZ 0.6/1kV
1 – Conductor :Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : Halogen-free (DIN VDE 0207, EN 50363-3, TS EN 50290-2-26 TI2), Black insulation, white number coded (DIN VDE 0293, TS EN 50334)
3 – Outer Jacket : UV resistant halogen-free outer jacket (TS EN 50290-2-27). RAL 7001 (Grey)
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km |
Current Carrying Capacity A |
Test Voltage V (DC, 1 minute) |
Operating Voltage V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 9 | 4000 | 600/1000 |
| 0.75 mm² | 26.0 | 20 | 12 | 4000 | 600/1000 |
| 1.00 mm² | 19.5 | 20 | 15 | 4000 | 600/1000 |
| 1.5 mm² | 13.3 | 20 | 18 | 4000 | 600/1000 |
| 2.5 mm² | 7.98 | 20 | 26 | 4000 | 600/1000 |
| 4.0 mm² | 4.95 | 20 | 34 | 4000 | 600/1000 |
| 6.0 mm² | 3.30 | 20 | 44 | 4000 | 600/1000 |
| 10.0 mm² | 1.91 | 20 | 61 | 4000 | 600/1000 |
| 16.0 mm² | 1.21 | 20 | 82 | 4000 | 600/1000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|
| IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 EN 60332-1-2 VDE 0482-332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.0050.1.0002 | 2 | 0,5 | 6,7 | 8,8 | 56 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0003 | 3 | 0,5 | 7,1 | 13,2 | 65 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0004 | 4 | 0,5 | 7,8 | 17,6 | 79 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0005 | 5 | 0,5 | 8,6 | 22 | 94 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0006 | 6 | 0,5 | 9,4 | 26,4 | 111 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0007 | 7 | 0,5 | 9,4 | 30,8 | 118 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0008 | 8 | 0,5 | 10,3 | 35,2 | 137 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0009 | 9 | 0,5 | 12,2 | 39,6 | 161 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0010 | 10 | 0,5 | 12,2 | 44 | 168 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0012 | 12 | 0,5 | 12,6 | 52,8 | 190 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0014 | 14 | 0,5 | 13,3 | 61,6 | 216 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0016 | 16 | 0,5 | 14,1 | 70,4 | 239 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0018 | 18 | 0,5 | 14,9 | 79,2 | 270 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0020 | 20 | 0,5 | 15,8 | 88 | 305 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0024 | 24 | 0,5 | 17,9 | 105,6 | 362 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0025 | 25 | 0,5 | 17,9 | 110 | 377 | 100/500/1000 |
| 3.606.2.3.3.0050.2.0027 | 27 | 0,5 | 18,3 | 118,8 | 393 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.0075.1.0002 | 2 | 0,75 | 7,1 | 13,2 | 65 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0003 | 3 | 0,75 | 7,5 | 19,8 | 76 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0004 | 4 | 0,75 | 8,3 | 26,4 | 94 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0005 | 5 | 0,75 | 9,2 | 33 | 114 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0006 | 6 | 0,75 | 10,1 | 39,6 | 135 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0007 | 7 | 0,75 | 10,1 | 46,2 | 144 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0008 | 8 | 0,75 | 10,9 | 52,8 | 164 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0009 | 9 | 0,75 | 13 | 59,4 | 193 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0010 | 10 | 0,75 | 12,8 | 66 | 195 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0012 | 12 | 0,75 | 13,5 | 79,2 | 232 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0014 | 14 | 0,75 | 14,2 | 92,4 | 261 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0016 | 16 | 0,75 | 15,1 | 105,6 | 294 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0018 | 18 | 0,75 | 16 | 118,8 | 331 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0020 | 20 | 0,75 | 17,1 | 132 | 378 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0024 | 24 | 0,75 | 19,3 | 158,5 | 447 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0025 | 25 | 0,75 | 19,3 | 165,1 | 466 | 100/500/1000 |
| 3.606.2.3.3.0075.2.0027 | 27 | 0,75 | 19,7 | 178,3 | 487 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.0100.1.0002 | 2 | 1 | 7,5 | 16,5 | 73 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0003 | 3 | 1 | 8,1 | 24,8 | 89 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0004 | 4 | 1 | 8,8 | 33 | 107 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0005 | 5 | 1 | 9,7 | 41,3 | 131 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0006 | 6 | 1 | 10,7 | 49,5 | 155 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0007 | 7 | 1 | 10,7 | 57,8 | 165 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0008 | 8 | 1 | 11,7 | 66 | 192 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0009 | 9 | 1 | 13,9 | 74,3 | 224 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0010 | 10 | 1 | 13,9 | 82,5 | 235 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0012 | 12 | 1 | 14,5 | 99 | 270 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0014 | 14 | 1 | 15,2 | 115,5 | 304 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0016 | 16 | 1 | 16,1 | 132 | 343 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0018 | 18 | 1 | 17,2 | 148,5 | 391 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0020 | 20 | 1 | 18,4 | 165,1 | 445 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0024 | 24 | 1 | 20,7 | 198,1 | 525 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0025 | 25 | 1 | 20,7 | 206,3 | 548 | 100/500/1000 |
| 3.606.2.3.3.0100.2.0027 | 27 | 1 | 21,1 | 222,8 | 573 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.0150.1.0002 | 2 | 1,5 | 8,1 | 25,7 | 89 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0003 | 3 | 1,5 | 8,6 | 38,6 | 109 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0004 | 4 | 1,5 | 9,5 | 51,4 | 134 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0005 | 5 | 1,5 | 10,5 | 64,3 | 164 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0006 | 6 | 1,5 | 11,6 | 77,2 | 199 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0007 | 7 | 1,5 | 11,6 | 90 | 209 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0008 | 8 | 1,5 | 12,6 | 102,9 | 242 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0009 | 9 | 1,5 | 15 | 115,7 | 282 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0010 | 10 | 1,5 | 15 | 128,6 | 297 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0012 | 12 | 1,5 | 15,6 | 154,3 | 343 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0014 | 14 | 1,5 | 16,4 | 180 | 388 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0016 | 16 | 1,5 | 17,5 | 205,7 | 442 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0018 | 18 | 1,5 | 18,7 | 231,5 | 502 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0020 | 20 | 1,5 | 19,9 | 257,2 | 570 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0024 | 24 | 1,5 | 22,4 | 308,6 | 671 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0025 | 25 | 1,5 | 22,4 | 321,5 | 701 | 100/500/1000 |
| 3.606.2.3.3.0150.2.0027 | 27 | 1,5 | 23,1 | 347,2 | 746 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.0250.1.0002 | 2 | 2,5 | 9,1 | 42,9 | 120 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0003 | 3 | 2,5 | 9,7 | 64,3 | 148 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0004 | 4 | 2,5 | 10,7 | 85,7 | 185 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0005 | 5 | 2,5 | 11,8 | 107,2 | 229 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0006 | 6 | 2,5 | 13 | 128,6 | 270 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0007 | 7 | 2,5 | 13 | 150 | 291 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0008 | 8 | 2,5 | 14,2 | 171,5 | 339 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0009 | 9 | 2,5 | 17,1 | 192,9 | 400 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0010 | 10 | 2,5 | 17,1 | 214,3 | 420 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0012 | 12 | 2,5 | 17,7 | 257,2 | 483 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0014 | 14 | 2,5 | 18,8 | 300 | 557 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0016 | 16 | 2,5 | 20 | 342,9 | 633 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0018 | 18 | 2,5 | 20,2 | 383,9 | 656 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0020 | 20 | 2,5 | 22,9 | 428,6 | 823 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0024 | 24 | 2,5 | 25,7 | 514,4 | 966 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0025 | 25 | 2,5 | 25,7 | 535,8 | 1014 | 100/500/1000 |
| 3.606.2.3.3.0250.2.0027 | 27 | 2,5 | 26,4 | 578,7 | 1073 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.0400.1.0002 | 2 | 4 | 11,1 | 68,6 | 179 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0003 | 3 | 4 | 11,8 | 102,9 | 224 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0004 | 4 | 4 | 13 | 137,2 | 280 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0005 | 5 | 4 | 14,6 | 171,5 | 351 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0006 | 6 | 4 | 16 | 205,7 | 412 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0007 | 7 | 4 | 16 | 240 | 447 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0008 | 8 | 4 | 17,6 | 274,3 | 523 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0009 | 9 | 4 | 21,3 | 308,6 | 622 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0010 | 10 | 4 | 16,7 | 342,9 | 675 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0012 | 12 | 4 | 22,2 | 411,5 | 766 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0014 | 14 | 4 | 23,5 | 480,1 | 880 | 100/500/1000 |
| 3.606.2.3.3.0400.2.0016 | 16 | 4 | 25,3 | 548,7 | 1010 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.0600.1.0002 | 2 | 6 | 12,2 | 102,9 | 230 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0003 | 3 | 6 | 13 | 154,3 | 293 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0004 | 4 | 6 | 14,5 | 205,7 | 371 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0005 | 5 | 6 | 16 | 257,2 | 461 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0006 | 6 | 6 | 17,9 | 308,6 | 559 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0007 | 7 | 6 | 17,9 | 360,1 | 605 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0008 | 8 | 6 | 19,7 | 411,5 | 709 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0009 | 9 | 6 | 23,9 | 462,9 | 846 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0010 | 10 | 6 | 23,9 | 514,4 | 892 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0012 | 12 | 6 | 24,7 | 617,2 | 1029 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0014 | 14 | 6 | 26,4 | 720,1 | 1195 | 100/500/1000 |
| 3.606.2.3.3.0600.2.0016 | 16 | 6 | 28 | 823 | 1354 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.1000.1.0002 | 2 | 10 | 15,5 | 178 | 376 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0003 | 3 | 10 | 16,8 | 267 | 490 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0004 | 4 | 10 | 18,6 | 356 | 621 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0005 | 5 | 10 | 20,9 | 445 | 786 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0006 | 6 | 10 | 23,2 | 534 | 943 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0007 | 7 | 10 | 23,2 | 623 | 1026 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0008 | 8 | 10 | 25,7 | 712 | 1208 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0009 | 9 | 10 | 30,5 | 801 | 1394 | 100/500/1000 |
| 3.606.2.3.3.1000.2.0010 | 10 | 10 | 30,5 | 890 | 1477 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.606.2.3.3.1600.1.0002 | 2 | 16 | 19,1 | 280,4 | 576 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0003 | 3 | 16 | 20,6 | 420,6 | 751 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0004 | 4 | 16 | 23 | 560,9 | 962 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0005 | 5 | 16 | 25,7 | 701,1 | 1211 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0006 | 6 | 16 | 28,5 | 841,3 | 1456 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0007 | 7 | 16 | 28,5 | 981,5 | 1576 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0008 | 8 | 16 | 31 | 1121,7 | 1827 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0009 | 9 | 16 | 36,5 | 1261,9 | 2062 | 100/500/1000 |
| 3.606.2.3.3.1600.2.0010 | 10 | 16 | 36,5 | 1402,1 | 2182 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -30°C~+70°C |
