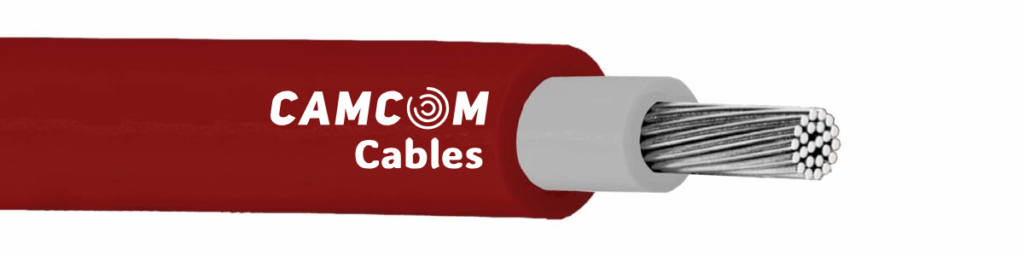

H1Z2Z2-K Solar Cable

Product Code: H1Z2Z2-K

1 – Conductor	:	Stranded electrolytic tinned copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295).
2 – Insulation	:	Cross-linked (XL) HFFR (EN 60811, EN 60216-1-2).
3 – Outer Jacket	:	Cross-linked (XL) HFFR outer jacket. RAL 9005 (Black) or RAL 3000 (Red)

Cross Section	Conductor Resistance Ω/km (20 °C)	Operating Voltage V DC	Test Voltage V DC (1 minute)
1.50 mm²	13.70	300/500	1500
2.50 mm²	8.21	300/500	1500
4.00 mm²	5.09	300/500	1500
6.00 mm²	3.39	300/500	1500
10.00 mm²	1.95	300/500	1500
16.00 mm²	1.24	300/500	1500
25.00 mm²	0.795	300/500	1500
35.00 mm²	0.565	300/500	1500

Smoke Density Test	Corrosive Gas Test	Halogen-free Test	Flame Retardancy Test	Flame Propagation Test
IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2, BS EN 61034-2	IEC 60754-2, VDE 0482-754-2, EN 60754-2, BS EN 60754-2	IEC 60754-1, VDE 0482-754-1, EN 60754-1, BS EN 60754-1	IEC 60332-1-2, VDE 0482-332-1-2, EN 60332-1-2, BS EN 60332-1-2	IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-3-24, BS EN 60332-3-24

Bending Radius	Temperature Range Operating
8xD mm	-40°C ~ +90°C
