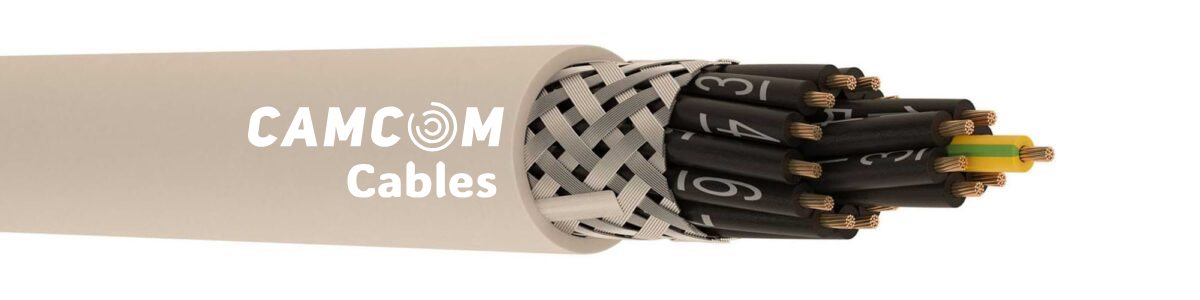

HSLCH-JZ 0.45/0.75kV Control Cable
Product Code: NHSLCH-JZ
1 – Conductor : Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : Halogen-free (DIN VDE 0207, EN 50363-3, TS EN 50290-2-26 TI2), Black insulation, white number coded (DIN VDE 0293, TS EN 50334)
3 – Stranding : In layers
4 – Wrapping : Polyester tape
5 – Screen : Tinned copper braiding
6 – Outer Jacket : UV resistant halogen-free outer jacket (TS EN 50290-2-27). RAL 7001 (Grey)
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km |
Current Carrying Capacity A |
Test Voltage V (DC, 1 minute) |
Operating Voltage V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 9 | 2500 | 450/750 |
| 0.75 mm² | 26.0 | 20 | 12 | 2500 | 450/750 |
| 1.00 mm² | 19.5 | 20 | 15 | 2500 | 450/750 |
| 1.5 mm² | 13.3 | 20 | 18 | 2500 | 450/750 |
| 2.5 mm² | 7.98 | 20 | 26 | 2500 | 450/750 |
| 4.0 mm² | 4.95 | 20 | 34 | 2500 | 450/750 |
| 6.0 mm² | 3.30 | 20 | 44 | 2500 | 450/750 |
| 10.0 mm² | 1.91 | 20 | 61 | 2500 | 450/750 |
| 16.0 mm² | 1.21 | 20 | 82 | 2500 | 450/750 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|
| IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 EN 60332-1-2 VDE 0482-332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.0050.0.0002 | 2 | 0,5 | 6,5 | 25,4 | 64 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0003 | 3 | 0,5 | 7 | 30 | 76 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0004 | 4 | 0,5 | 7,5 | 36,3 | 89 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0005 | 5 | 0,5 | 8,3 | 42,4 | 105 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0006 | 6 | 0,5 | 9,1 | 51,5 | 120 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0007 | 7 | 0,5 | 9,1 | 55,9 | 131 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0008 | 8 | 0,5 | 9,8 | 60,5 | 149 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0009 | 9 | 0,5 | 11,6 | 69,8 | 170 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0010 | 10 | 0,5 | 11,6 | 74,2 | 173 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0012 | 12 | 0,5 | 12 | 83,6 | 193 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0014 | 14 | 0,5 | 12,7 | 96,8 | 221 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0016 | 16 | 0,5 | 13,4 | 108,7 | 247 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0018 | 18 | 0,5 | 14,1 | 118,7 | 275 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0020 | 20 | 0,5 | 15 | 139,2 | 306 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0024 | 24 | 0,5 | 16,8 | 164,1 | 368 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0025 | 25 | 0,5 | 16,8 | 168,5 | 387 | 100/500/1000 |
| 3.611.3.3.3.0050.0.0027 | 27 | 0,5 | 17,2 | 178,2 | 397 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.0075.0.0002 | 2 | 0,75 | 6,9 | 30 | 69 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0003 | 3 | 0,75 | 7,3 | 37,5 | 83 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0004 | 4 | 0,75 | 8 | 45,5 | 99 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0005 | 5 | 0,75 | 8,7 | 56,4 | 123 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0006 | 6 | 0,75 | 9,5 | 64,7 | 141 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0007 | 7 | 0,75 | 9,5 | 71,3 | 147 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0008 | 8 | 0,75 | 10,4 | 79,4 | 171 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0009 | 9 | 0,75 | 12,3 | 94,1 | 203 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0010 | 10 | 0,75 | 12,3 | 100,7 | 209 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0012 | 12 | 0,75 | 12,7 | 114,5 | 233 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0014 | 14 | 0,75 | 13,4 | 130,7 | 265 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0016 | 16 | 0,75 | 14,1 | 145,1 | 292 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0018 | 18 | 0,75 | 15 | 170 | 346 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0020 | 20 | 0,75 | 15,9 | 184,9 | 365 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0024 | 24 | 0,75 | 17,9 | 219,3 | 443 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0025 | 25 | 0,75 | 17,9 | 225,9 | 466 | 100/500/1000 |
| 3.611.3.3.3.0075.0.0027 | 27 | 0,75 | 18,3 | 240,1 | 480 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.0100.0.0002 | 2 | 1 | 7,3 | 34,2 | 77 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0003 | 3 | 1 | 7,7 | 43,6 | 94 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0004 | 4 | 1 | 8,5 | 53,6 | 113 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0005 | 5 | 1 | 9,3 | 66,3 | 143 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0006 | 6 | 1 | 10,2 | 75 | 163 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0007 | 7 | 1 | 10,2 | 83,3 | 169 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0008 | 8 | 1 | 11,2 | 94,4 | 199 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0009 | 9 | 1 | 13,1 | 112,2 | 233 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0010 | 10 | 1 | 13,1 | 120,4 | 240 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0012 | 12 | 1 | 13,6 | 137,7 | 273 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0014 | 14 | 1 | 14,3 | 162,5 | 311 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0016 | 16 | 1 | 15,2 | 183,6 | 350 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0018 | 18 | 1 | 16,1 | 201,8 | 393 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0020 | 20 | 1 | 17,2 | 224,4 | 432 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0024 | 24 | 1 | 19,3 | 262,2 | 520 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0025 | 25 | 1 | 19,3 | 270,4 | 547 | 100/500/1000 |
| 3.611.3.3.3.0100.0.0027 | 27 | 1 | 19,7 | 288 | 564 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.0150.0.0002 | 2 | 1,5 | 7,7 | 44,5 | 91 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0003 | 3 | 1,5 | 8,2 | 58,9 | 114 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0004 | 4 | 1,5 | 9,1 | 76,5 | 142 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0005 | 5 | 1,5 | 9,9 | 89,6 | 171 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0006 | 6 | 1,5 | 10,8 | 105,3 | 198 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0007 | 7 | 1,5 | 10,8 | 118,1 | 209 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0008 | 8 | 1,5 | 11,8 | 133,4 | 244 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0009 | 9 | 1,5 | 14 | 155 | 286 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0010 | 10 | 1,5 | 14 | 167,9 | 297 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0012 | 12 | 1,5 | 14,6 | 201,6 | 346 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0014 | 14 | 1,5 | 15,3 | 231,9 | 391 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0016 | 16 | 1,5 | 16,2 | 259,4 | 437 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0018 | 18 | 1,5 | 17,3 | 291,1 | 500 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0020 | 20 | 1,5 | 18,4 | 319,4 | 545 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0024 | 24 | 1,5 | 20,7 | 376,1 | 655 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0025 | 25 | 1,5 | 20,7 | 388,9 | 688 | 100/500/1000 |
| 3.611.3.3.3.0150.0.0027 | 27 | 1,5 | 21,2 | 415,8 | 725 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.0250.0.0002 | 2 | 2,5 | 9,3 | 67,8 | 134 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0003 | 3 | 2,5 | 9,9 | 89,6 | 166 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0004 | 4 | 2,5 | 10,8 | 113,8 | 204 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0005 | 5 | 2,5 | 12 | 137,9 | 256 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0006 | 6 | 2,5 | 13,2 | 166,6 | 300 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0007 | 7 | 2,5 | 13,2 | 188 | 317 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0008 | 8 | 2,5 | 14,5 | 218,6 | 380 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0009 | 9 | 2,5 | 17,2 | 252,4 | 446 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0010 | 10 | 2,5 | 17,2 | 273,8 | 463 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0012 | 12 | 2,5 | 18 | 318,2 | 535 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0014 | 14 | 2,5 | 18,9 | 363,5 | 602 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0016 | 16 | 2,5 | 20,1 | 409,2 | 679 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0018 | 18 | 2,5 | 21,6 | 455 | 781 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0020 | 20 | 2,5 | 23 | 501,2 | 851 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0024 | 24 | 2,5 | 25,7 | 593,9 | 1019 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0025 | 25 | 2,5 | 25,7 | 612,7 | 1056 | 100/500/1000 |
| 3.611.3.3.3.0250.0.0027 | 27 | 2,5 | 26,5 | 659,8 | 1125 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.0400.0.0002 | 2 | 4 | 10,7 | 95,4 | 180 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0003 | 3 | 4 | 11,5 | 132,9 | 233 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0004 | 4 | 4 | 12,6 | 172,3 | 290 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0005 | 5 | 4 | 13,9 | 210,7 | 365 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0006 | 6 | 4 | 15,3 | 257,6 | 431 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0007 | 7 | 4 | 15,3 | 291,9 | 458 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0008 | 8 | 4 | 17 | 331,7 | 544 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0009 | 9 | 4 | 20,4 | 375,2 | 644 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0010 | 10 | 4 | 20,4 | 409,5 | 671 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0012 | 12 | 4 | 21,1 | 480 | 766 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0014 | 14 | 4 | 22,4 | 551,9 | 875 | 100/500/1000 |
| 3.611.3.3.3.0400.0.0016 | 16 | 4 | 23,7 | 660,7 | 1036 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.0600.0.0002 | 2 | 6 | 12,5 | 137,8 | 251 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0003 | 3 | 6 | 13,4 | 192,5 | 326 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0004 | 4 | 6 | 14,8 | 256,5 | 398 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0005 | 5 | 6 | 16,3 | 311 | 505 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0006 | 6 | 6 | 18,2 | 370,3 | 615 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0007 | 7 | 6 | 18,2 | 421,7 | 656 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0008 | 8 | 6 | 20 | 477,4 | 768 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0009 | 9 | 6 | 24,2 | 538,7 | 898 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0010 | 10 | 6 | 24,2 | 590,1 | 954 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0012 | 12 | 6 | 25,2 | 695,3 | 1105 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0014 | 14 | 6 | 26,7 | 813,7 | 1270 | 100/500/1000 |
| 3.611.3.3.3.0600.0.0016 | 16 | 6 | 28,4 | 949,7 | 1462 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.1000.0.0002 | 2 | 10 | 15,1 | 229,5 | 387 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0003 | 3 | 10 | 16,2 | 320,6 | 506 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0004 | 4 | 10 | 18,2 | 417,5 | 646 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0005 | 5 | 10 | 20,4 | 511,5 | 806 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0006 | 6 | 10 | 22,4 | 605,7 | 943 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0007 | 7 | 10 | 22,4 | 694,7 | 1035 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0008 | 8 | 10 | 24,8 | 789,3 | 1202 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0009 | 9 | 10 | 29,6 | 891 | 1402 | 100/500/1000 |
| 3.611.3.3.3.1000.0.0010 | 10 | 10 | 29,6 | 980 | 1494 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.611.3.3.3.1600.0.0002 | 2 | 16 | 18 | 319,6 | 540 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0003 | 3 | 16 | 19,4 | 485,3 | 744 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0004 | 4 | 16 | 21,7 | 630,7 | 945 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0005 | 5 | 16 | 24,2 | 777,1 | 1171 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0006 | 6 | 16 | 26,9 | 962,8 | 1422 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0007 | 7 | 16 | 26,9 | 1103,4 | 1570 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0008 | 8 | 16 | 29,4 | 1252,3 | 1794 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0009 | 9 | 16 | 34,5 | 1431,3 | 2049 | 100/500/1000 |
| 3.611.3.3.3.1600.0.0010 | 10 | 16 | 34,5 | 1571,6 | 2196 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C~+70°C |
