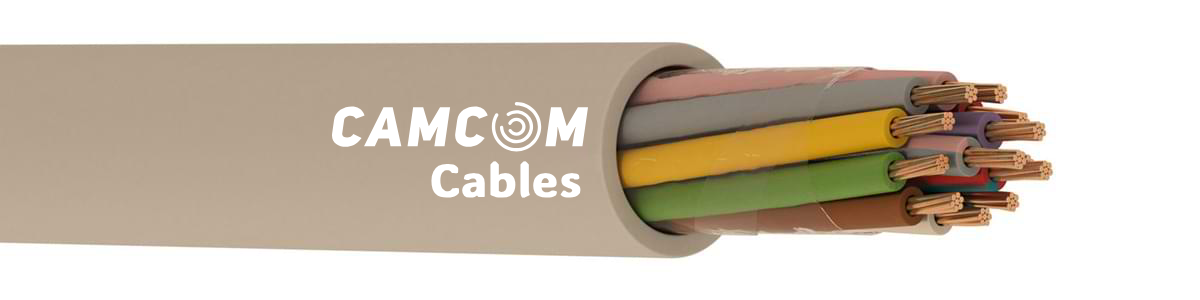

Intercom Cable (DT)

Product Code: Intercom Cable (DT)

1 – Conductor	:	Stranded copper conductor
2 – Insulation	:	PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100), halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Wrapping	:	Polyester tape
4 – Outer Jacket	:	UV resistant PVC outer jacket RAL 9001 (White), UV resistant halogen-free outer jacket RAL 7035 (Grey)

Inner Conductor Resistance (20°C)	Insulation Resistance MΩxkm	Operating Voltage V	Test Voltage V
<92.0 km=”” –92=”” 0–=””>	>200	300/500	1200

Smoke Density Test	Corrosive Gas Test	Halogen-free Test	Flame Retardancy Test
IEC 61034-2 VDE 0482-1034-2 EN 61034-2	IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3	IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1	IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2

PartNumber	Conductor Count	Conductor Diameter(mm²)	Approx. Cable Diameter(mm)	Copper Weight(kg/km)	Approx. Weight(kg/km)	Packing Lengths(m)
3.620.2.2.2.0014.0.0004	4	0.14	3,8	5,5	19	100
3.620.2.2.2.0014.0.0006	6	0.14	4,6	8,2	29	100
3.620.2.2.2.0014.0.0008	8	0.14	5,2	11	37	100
3.620.2.2.2.0014.0.0012	12	0.14	6,2	16,4	51	100
3.620.2.2.2.0014.0.0016	16	0.14	6,9	21,9	65	100
3.620.2.2.2.0014.0.0020	20	0.14	7,7	27,4	79	100

PartNumber	Conductor Count	Conductor Diameter(mm²)	Approx. Cable Diameter(mm)	Copper Weight(kg/km)	Approx. Weight(kg/km)	Packing Lengths(m)
3.620.2.2.2.0022.0.0004	4	0.22	4	8,6	23	100
3.620.2.2.2.0022.0.0006	6	0.22	4,9	12,9	35	100
3.620.2.2.2.0022.0.0008	8	0.22	5,5	17,1	46	100
3.620.2.2.2.0022.0.0012	12	0.22	6,6	25,7	63	100
3.620.2.2.2.0022.0.0016	16	0.22	7,4	34,2	80	100
3.620.2.2.2.0022.0.0020	20	0.22	8,2	42,7	98	100

PartNumber	Conductor Count	Conductor Diameter(mm²)	Approx. Cable Diameter(mm)	Copper Weight(kg/km)	Approx. Weight(kg/km)	Packing Lengths(m)
3.620.2.3.2.0014.0.0004	4	0.14	3,8	5,5	18	100
3.620.2.3.2.0014.0.0006	6	0.14	4,6	8,2	28	100
3.620.2.3.2.0014.0.0008	8	0.14	5,2	11	36	100
3.620.2.3.2.0014.0.0012	12	0.14	6,2	16,4	49	100
3.620.2.3.2.0014.0.0016	16	0.14	6,9	21,9	62	100
3.620.2.3.2.0014.0.0020	20	0.14	7,7	27,4	77	100

PartNumber	Conductor Count	Conductor Diameter(mm²)	Approx. Cable Diameter(mm)	Copper Weight(kg/km)	Approx. Weight(kg/km)	Packing Lengths(m)
3.620.2.3.2.0022.0.0004	4	0.22	4	8,6	22	100
3.620.2.3.2.0022.0.0006	6	0.22	4,9	12,9	34	100
3.620.2.3.2.0022.0.0008	8	0.22	5,5	17,1	44	100
3.620.2.3.2.0022.0.0012	12	0.22	6,6	25,7	60	100
3.620.2.3.2.0022.0.0016	16	0.22	7,4	34,2	77	100
3.620.2.3.2.0022.0.0020	20	0.22	8,2	42,7	96	100

Bending Radius	Temperature Range Operating
10xD mm	-30°C~+70°C
