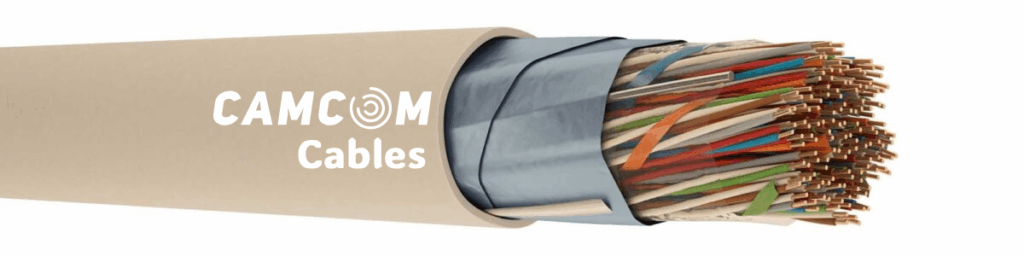

J-02Y(St)Y Indoor Telephone Cable
Product Code: PD-APV
| 1 – Conductor | : | Class 1 electrolytic solid copper (IEC 60228, DIN VDE 0295, EN 60228) |
| 2 – Insulation | : | Color coded foam skin polyethylene cladded with solid polyethylene (TS EN 60708) |
| 3 – Stranding | : | In layers up to 10 pairs, 20 pairs to 100 pairs consist of stranding of 10 pair groups wrapped with polypropylene identification tape |
| 4 – Wrapping | : | A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically. (More than 10 pairs) |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Conductor Diameter |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance (@500V DC) MΩ/km |
Mutual Capacitance
nF/km |
Capacitance UnbalancepF/500 m |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.40 mm | 146.6 | 5000 | 56 | 400 | 1000 |
| 0.50 mm | 93.0 | 5000 | 56 | 400 | 1000 |
| 0.60 mm | 64.6 | 5000 | 51 | 400 | 1000 |
| 0.65 mm | 60.0 | 5000 | 51 | 400 | 1000 |
| 0.80 mm | 37.0 | 5000 | 51 | 400 | 1000 |
| 0.90 mm | 28.8 | 5000 | 51 | 400 | 1000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.340.1.5.2.0040.0.0001 | 1 | 0,4 | 2,9 | 4,3 | 12 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0002 | 2 | 0,4 | 3,4 | 6,7 | 17 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0003 | 3 | 0,4 | 4,3 | 9 | 24 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0004 | 4 | 0,4 | 4,3 | 11,4 | 26 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0005 | 5 | 0,4 | 4,6 | 13,8 | 31 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0006 | 6 | 0,4 | 5,3 | 16,1 | 36 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0007 | 7 | 0,4 | 5,4 | 18,5 | 41 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0008 | 8 | 0,4 | 5,5 | 20,9 | 44 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0009 | 9 | 0,4 | 5,7 | 23,3 | 48 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0010 | 10 | 0,4 | 5,7 | 25,6 | 51 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0012 | 12 | 0,4 | 6,2 | 30,4 | 59 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0014 | 14 | 0,4 | 7,2 | 35,1 | 72 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0015 | 15 | 0,4 | 6,6 | 37,5 | 69 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0016 | 16 | 0,4 | 6,8 | 39,8 | 73 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0020 | 20 | 0,4 | 7,4 | 49,3 | 88 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0030 | 30 | 0,4 | 9,8 | 73 | 127 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0050 | 50 | 0,4 | 11,9 | 120,4 | 196 | 100/500/1000 |
| 3.340.1.5.2.0040.0.0100 | 100 | 0,4 | 16,4 | 243,5 | 376 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.340.1.5.2.0050.0.0001 | 1 | 0,5 | 3.1 | 5,6 | 15 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0002 | 2 | 0,5 | 3.7 | 9,3 | 21 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0003 | 3 | 0,5 | 4,7 | 13 | 29 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0004 | 4 | 0,5 | 4,9 | 16,7 | 35 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0005 | 5 | 0,5 | 5 | 20,4 | 40 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0006 | 6 | 0,5 | 5,9 | 24,1 | 47 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0007 | 7 | 0,5 | 6 | 27,8 | 53 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0008 | 8 | 0,5 | 6,1 | 31,5 | 57 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0009 | 9 | 0,5 | 6,2 | 35,2 | 62 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0010 | 10 | 0,5 | 6,3 | 39 | 68 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0012 | 12 | 0,5 | 6,8 | 46,4 | 79 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0014 | 14 | 0,5 | 7,2 | 53,8 | 89 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0015 | 15 | 0,5 | 7,4 | 57,5 | 94 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0016 | 16 | 0,5 | 7,6 | 61,2 | 99 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0020 | 20 | 0,5 | 8,3 | 76 | 121 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0030 | 30 | 0,5 | 11,1 | 113 | 176 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0050 | 50 | 0,5 | 13,8 | 187 | 282 | 100/500/1000 |
| 3.340.1.5.2.0050.0.0100 | 100 | 0,5 | 18,8 | 379,4 | 534 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -30°C ~ +70°C |
