J-V(ZN)H Fiber Optic Cable

Product Code: Simplex Zipcord

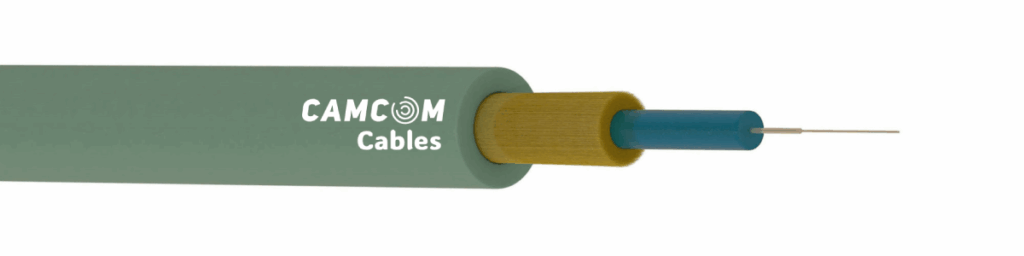

1 – Optical fiber core ¹
2 – HFFR insulated tight-buffered fiber of 900 μm diameter
3 – Non-metallic strength member (Aramid yarn)
4 – UV resistant halogen-free (LSOH) outer jacket

Part Number	Core Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)
4.291.0.3.3.0900.0.0001	SM G.652.D	1	2	6
4.291.0.3.3.0625.0.0001	OM1	1	2	6
4.291.0.3.3.0502.0.0001	OM2	1	2	6
4.291.0.3.3.0503.0.0001	OM3	1	2	6
4.291.0.3.3.0504.0.0001	OM4	1	2	6
4.291.0.3.3.0900.1.0001	SM G.652.D	1	2,8	9
4.291.0.3.3.0625.1.0001	OM1	1	2,8	9
4.291.0.3.3.0502.1.0001	OM2	1	2,8	9
4.291.0.3.3.0503.1.0001	OM3	1	2,8	9
4.291.0.3.3.0504.1.0001	OM4	1	2,8	9

	Test Standard	Specified Value	Acceptance Criteria
Maximum Installation Tension ²	IEC 60794-1-2-E1	Maks. 200 N	Fiber strainı ≤ 0.33%
Maximum Operation Tension			Δα ≤ 0.05 dB, No fiber strain
Crush Strength	IEC 60794-1-2-E3	1000 N / 100 mm, maks. 10 min	Δα ≤ 0.05 dB, No damage
Impact	IEC 60794-1-2-E4	10 Nm, 3 impacts, R= 300 mm	Δα ≤ 0.05 dB after the test
Torsion	IEC 60794-1-2-E7	1 m, 100N, +/- 180°, 10 cycles	Δα ≤ 0.05 dB, No damage
Repeated Bending	IEC 60794-1-2-E6	R=20x D, 100 N, 35 cycles	No damage
Bending Radius	IEC 60794-1-2-E11	R=20x D, 4 turns, 3 cycles	Δα ≤ 0.05 dB, No damage
Temperature Cycling	IEC 60794-1-2-F1	-20°C to +70°C	Δα ≤ 0.05 dB/km

Minimum Bending Radius
Operation	20 x cable Ø
Fixed	15 x cable Ø

	Temperature Range
Storage	-40°C to + 70°C	Installation	-30°C to +60°C
Transport	-40°C to + 70°C	Operating	-40°C to +70°C

Marking	Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance
