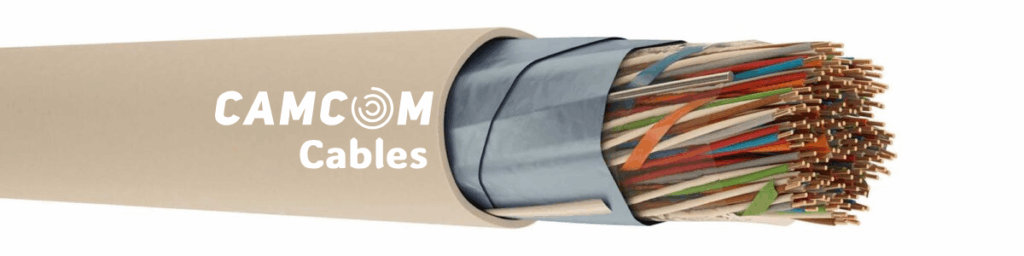

J-Y(St)Y Indoor Telephone Cable
Product Code: VB-APV
| 1 – Conductor | : | Class 1 electrolytic solid copper (IEC 60228, DIN VDE 0295, EN 60228) |
| 2 – Insulation | : | PVC (TS IEC 60189-2) |
| 3 – Stranding | : | In layers up to 10 pairs, 20 pairs to 100 pairs consist of stranding of 10 pair groups wrapped with polypropylene identification tape |
| 4 – Wrapping | : | A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically. (More than 10 pairs) |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Conductor Diameter |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance (@500V DC) MΩ/km |
Mutual Capacitance
nF/km |
Capacitance UnbalancepF/500 m |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.40 mm | 146.6 | 500 | 120 | 400 | 1000 |
| 0.50 mm | 93.0 | 500 | 120 | 400 | 1000 |
| 0.60 mm | 64.6 | 500 | 110 | 400 | 1000 |
| 0.65 mm | 60.0 | 500 | 110 | 400 | 1000 |
| 0.80 mm | 37.0 | 500 | 100 | 400 | 1000 |
| 0.90 mm | 28.8 | 500 | 100 | 400 | 1000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.340.1.2.2.0040.0.0001 | 1 | 0,4 | 3,2 | 4,2 | 13 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0002 | 2 | 0,4 | 3,9 | 6,6 | 19 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0003 | 3 | 0,4 | 4,4 | 9 | 24 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0004 | 4 | 0,4 | 5 | 11,3 | 30 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0005 | 5 | 0,4 | 5,3 | 13,7 | 35 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0006 | 6 | 0,4 | 5,5 | 16 | 39 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0007 | 7 | 0,4 | 6 | 18,4 | 45 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0008 | 8 | 0,4 | 6,2 | 20,8 | 49 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0009 | 9 | 0,4 | 6,5 | 23,1 | 54 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0010 | 10 | 0,4 | 6,7 | 25,5 | 57 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0012 | 12 | 0,4 | 7,2 | 30,2 | 67 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0014 | 14 | 0,4 | 7,6 | 34,9 | 75 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0015 | 15 | 0,4 | 7,8 | 37,3 | 79 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0016 | 16 | 0,4 | 8 | 39,6 | 82 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0020 | 20 | 0,4 | 7,7 | 49,3 | 97 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0025 | 25 | 0,4 | 9,5 | 60,8 | 118 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0030 | 30 | 0,4 | 10,3 | 73 | 141 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0040 | 40 | 0,4 | 11,5 | 96,7 | 182 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0050 | 50 | 0,4 | 12,6 | 120,4 | 219 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0060 | 60 | 0,4 | 13,9 | 144,1 | 265 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0070 | 70 | 0,4 | 14,6 | 167,8 | 303 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0080 | 80 | 0,4 | 15,6 | 191,4 | 340 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0100 | 100 | 0,4 | 17,1 | 243,5 | 417 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0120 | 120 | 0,4 | 18,2 | 291,8 | 487 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0150 | 150 | 0,4 | 21,4 | 364,4 | 603 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0200 | 200 | 0,4 | 23,5 | 485,3 | 769 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0250 | 250 | 0,4 | 26,7 | 606,1 | 979 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0300 | 300 | 0,4 | 28,8 | 727 | 1153 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0400 | 400 | 0,4 | 32,3 | 968,6 | 1493 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0500 | 500 | 0,4 | 36,8 | 1210,3 | 1840 | 100/500/1000 |
| 3.340.1.2.2.0040.0.0600 | 600 | 0,4 | 39,9 | 1452 | 2177 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.340.1.2.2.0050.0.0001 | 1 | 0,5 | 3,4 | 5,6 | 16 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0002 | 2 | 0,5 | 4,2 | 9,3 | 23 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0003 | 3 | 0,5 | 4,8 | 12,9 | 31 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0004 | 4 | 0,5 | 5,6 | 16,7 | 38 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0005 | 5 | 0,5 | 5,9 | 20,3 | 45 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0006 | 6 | 0,5 | 6,1 | 24 | 51 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0007 | 7 | 0,5 | 6,6 | 27,7 | 57 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0008 | 8 | 0,5 | 6,9 | 31,4 | 64 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0009 | 9 | 0,5 | 7,2 | 35 | 70 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0010 | 10 | 0,5 | 7,5 | 38,7 | 76 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0012 | 12 | 0,5 | 8,1 | 46,1 | 89 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0014 | 14 | 0,5 | 8,6 | 53,5 | 100 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0015 | 15 | 0,5 | 8,8 | 57,2 | 106 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0016 | 16 | 0,5 | 9 | 60,8 | 111 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0020 | 20 | 0,5 | 8,8 | 75,9 | 133 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0025 | 25 | 0,5 | 10,8 | 94 | 162 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0030 | 30 | 0,5 | 11,8 | 113 | 195 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0040 | 40 | 0,5 | 13,2 | 150 | 253 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0050 | 50 | 0,5 | 14,7 | 187 | 313 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0060 | 60 | 0,5 | 16 | 224 | 370 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0070 | 70 | 0,5 | 16,8 | 261,1 | 425 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0080 | 80 | 0,5 | 17,9 | 298,1 | 478 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0100 | 100 | 0,5 | 19,7 | 379,3 | 590 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0120 | 120 | 0,5 | 21 | 454,8 | 693 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0150 | 150 | 0,5 | 24,8 | 568,3 | 860 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0200 | 200 | 0,5 | 27,7 | 757,2 | 1132 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0250 | 250 | 0,5 | 30,7 | 946 | 1388 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0300 | 300 | 0,5 | 33,4 | 1134,8 | 1657 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0400 | 400 | 0,5 | 37,5 | 1512,4 | 2159 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0500 | 500 | 0,5 | 42,8 | 1890,1 | 2668 | 100/500/1000 |
| 3.340.1.2.2.0050.0.0600 | 600 | 0,5 | 46,5 | 2267,7 | 3167 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.340.1.2.2.0060.0.0001 | 1 | 0,6 | 4 | 7,2 | 21 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0002 | 2 | 0,6 | 5,1 | 12,5 | 32 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0003 | 3 | 0,6 | 5,8 | 17,8 | 43 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0004 | 4 | 0,6 | 6,8 | 23,1 | 53 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0005 | 5 | 0,6 | 7,1 | 28,5 | 63 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0006 | 6 | 0,6 | 7,5 | 33,7 | 72 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0007 | 7 | 0,6 | 8 | 39 | 81 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0008 | 8 | 0,6 | 8,4 | 44,3 | 91 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0009 | 9 | 0,6 | 8,8 | 49,6 | 100 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0010 | 10 | 0,6 | 9,1 | 54,9 | 106 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0012 | 12 | 0,6 | 9,8 | 65,6 | 124 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0014 | 14 | 0,6 | 10,5 | 76,2 | 141 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0015 | 15 | 0,6 | 10,7 | 81,5 | 149 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0016 | 16 | 0,6 | 11 | 86,8 | 158 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0020 | 20 | 0,6 | 10,7 | 108,5 | 191 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0025 | 25 | 0,6 | 13,3 | 134,5 | 232 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0030 | 30 | 0,6 | 14,7 | 161,8 | 281 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0040 | 40 | 0,6 | 16,4 | 215,1 | 365 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0050 | 50 | 0,6 | 18,2 | 268,5 | 445 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0060 | 60 | 0,6 | 19,8 | 321,8 | 532 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0070 | 70 | 0,6 | 20,9 | 375,1 | 618 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0080 | 80 | 0,6 | 22,4 | 428,4 | 697 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0100 | 100 | 0,6 | 24,7 | 545,4 | 864 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0120 | 120 | 0,6 | 26,4 | 654,1 | 1017 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0150 | 150 | 0,6 | 31,1 | 817,6 | 1258 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0200 | 200 | 0,6 | 34,7 | 1089,5 | 1652 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0250 | 250 | 0,6 | 39 | 1361,4 | 2070 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0300 | 300 | 0,6 | 42,3 | 1633,3 | 2452 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0400 | 400 | 0,6 | 47,5 | 2177,1 | 3204 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0500 | 500 | 0,6 | 54,5 | 2720,9 | 3968 | 100/500/1000 |
| 3.340.1.2.2.0060.0.0600 | 600 | 0,6 | 59,2 | 3264,7 | 4716 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.340.1.2.2.0080.0.0001 | 1 | 0,8 | 4,7 | 11,3 | 29 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0002 | 2 | 0,8 | 6 | 20,8 | 47 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0003 | 3 | 0,8 | 6,9 | 30,2 | 63 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0004 | 4 | 0,8 | 8,2 | 39,6 | 81 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0005 | 5 | 0,8 | 8,6 | 49,1 | 96 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0006 | 6 | 0,8 | 9 | 58,5 | 110 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0007 | 7 | 0,8 | 9,7 | 67,9 | 125 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0008 | 8 | 0,8 | 10,2 | 77,3 | 141 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0009 | 9 | 0,8 | 10,7 | 86,8 | 155 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0010 | 10 | 0,8 | 11,1 | 96,2 | 166 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0012 | 12 | 0,8 | 11,9 | 115,1 | 192 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0014 | 14 | 0,8 | 12,8 | 133,9 | 223 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0015 | 15 | 0,8 | 13,2 | 143,4 | 237 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0016 | 16 | 0,8 | 13,5 | 152,8 | 250 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0020 | 20 | 0,8 | 13,3 | 191,4 | 310 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0025 | 25 | 0,8 | 16,5 | 237,7 | 377 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0030 | 30 | 0,8 | 18,8 | 286,2 | 476 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0040 | 40 | 0,8 | 20,7 | 381 | 607 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0050 | 50 | 0,8 | 22,9 | 475,8 | 741 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0060 | 60 | 0,8 | 24,8 | 570,6 | 874 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0070 | 70 | 0,8 | 26 | 665,3 | 1007 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0080 | 80 | 0,8 | 27,9 | 760,1 | 1140 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0100 | 100 | 0,8 | 30,9 | 968,2 | 1428 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0120 | 120 | 0,8 | 33,1 | 1161,4 | 1687 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0150 | 150 | 0,8 | 39,2 | 1452 | 2110 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0200 | 200 | 0,8 | 43,8 | 1935,4 | 2774 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0250 | 250 | 0,8 | 48,7 | 2418,8 | 3423 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0300 | 300 | 0,8 | 52,9 | 2902,1 | 4067 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0400 | 400 | 0,8 | 59,6 | 3868,9 | 5342 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0500 | 500 | 0,8 | 68,4 | 4835,6 | 6631 | 100/500/1000 |
| 3.340.1.2.2.0080.0.0600 | 600 | 0,8 | 74,4 | 5802,4 | 7900 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -30°C ~ +70°C |
