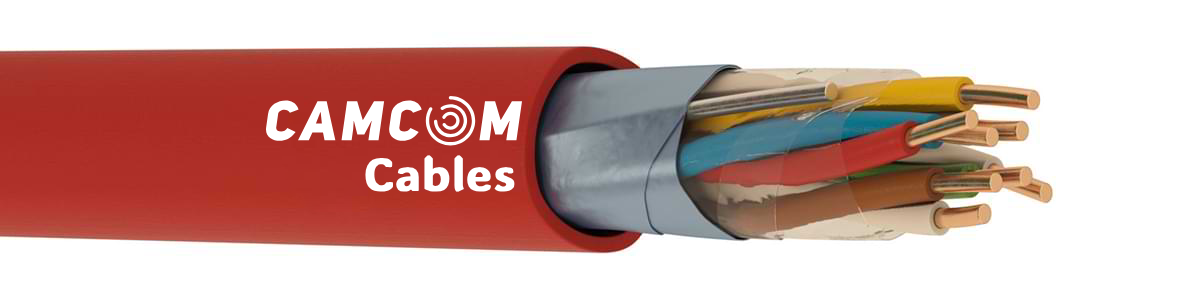

J-Y(St)Y Lg Fire Alarm Cable

Product Code: J-Y(St)Y Lg

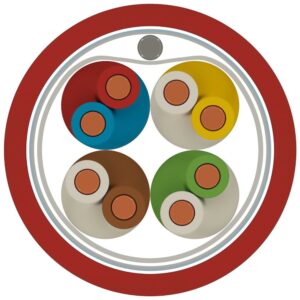

  • Cable Construction
  • Technical Data
  • Standards
  • Types
  • Mechanical Characteristics
1 – Conductor : Class 1 electrolytic solid copper (IEC 60228, DIN VDE 0295, EN 60228)
2 – Insulation : PVC compound (VDE 0815, EN 50290-2-26)
3 – Stranding : Two pairs are stranded into a star-quad, above two pairs are stranded together in layers
4 – Wrapping : Polyester tape
5 – Screen : Tinned copper earthing wire, Al/PET tape
6 – Outer Jacket : Ultraviolet-resistant PVC outer sheath. RAL 3000 (Red)
Conductor
Diameter		 Conductor Resistance
Ω/km
(20 °C)		 Insulation
Resistance
(@500V DC)
MΩ/km		 Mutual Capacitance

nF/km

 Operating
Voltage

V DC

 Test Voltage

(@ 1 minute)
V DC
0.60 mm 130.0 100 100 300 800
0.80 mm 73.2 100 100 300 800
1.00 mm 44.6 100 100 300 1000
1.50 mm² 24.6 100 100 300 1000
2.50 mm² 15.1 100 100 300 1000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part
Number		 Pair
Count		 Conductor Diameter
(mm)		 Cross-section
(mm²)		 Average Cable Diameter
(mm)		 Copper Weight
(kg/km)		 Average Weight
(kg/km)		 Packaging Lengths
(m)
3.640.1.2.2.0060.0.0001 1 0,6 – 4,1 7,2 21 100/500/1000
3.640.1.2.2.0060.0.0002 2 0,6 – 4,7 12,5 31 100/500/1000
3.640.1.2.2.0060.0.0003 3 0,6 – 6,1 17,8 45 100/500/1000
3.640.1.2.2.0060.0.0004 4 0,6 – 7,2 23,1 57 100/500/1000
3.640.1.2.2.0060.0.0005 5 0,6 – 7,5 28,4 67 100/500/1000
3.640.1.2.2.0060.0.0006 6 0,6 – 9,1 33,7 82 100/500/1000
3.640.1.2.2.0060.0.0008 8 0,6 – 9,3 44,3 98 100/500/1000
3.640.1.2.2.0060.0.0010 10 0,6 – 9,7 54,9 116 100/500/1000
3.640.1.2.2.0060.0.0012 12 0,6 – 10,4 65,6 134 100/500/1000
3.640.1.2.2.0060.0.0014 14 0,6 – 11,3 76,2 157 100/500/1000
3.640.1.2.2.0060.0.0016 16 0,6 – 11,9 86,8 175 100/500/1000
3.640.1.2.2.0060.0.0020 20 0,6 – 13,3 108 211 100/500/1000
3.640.1.2.2.0060.0.0024 24 0,6 – 14,3 129,2 251 100/500/1000
3.640.1.2.2.0060.0.0025 25 0,6 – 14,5 134,5 260 100/500/1000
3.640.1.2.2.0060.0.0030 30 0,6 – 18,8 161,1 329 100/500/1000
3.640.1.2.2.0060.0.0040 40 0,6 – 20,8 214,1 415 100/500/1000
3.640.1.2.2.0060.0.0050 50 0,6 – 23 267,2 502 100/500/1000
3.640.1.2.2.0060.0.0060 60 0,6 – 25,1 320,2 601 100/500/1000
3.640.1.2.2.0060.0.0080 80 0,6 – 28,1 426,3 768 100/500/1000
3.640.1.2.2.0060.0.0100 100 0,6 – 32,1 532,4 956 100/500/1000



Part
Number		 Pair
Count		 Conductor Diameter
(mm)		 Cross-section
(mm²)		 Average Cable Diameter
(mm)		 Copper Weight
(kg/km)		 Average Weight
(kg/km)		 Packaging Lengths
(m)
3.640.1.2.2.0080.0.0001 1 0,8 – 4,6 11,3 28 100/500/1000
3.640.1.2.2.0080.0.0002 2 0,8 – 5,3 20,7 43 100/500/1000
3.640.1.2.2.0080.0.0003 3 0,8 – 6,9 30,2 63 100/500/1000
3.640.1.2.2.0080.0.0004 4 0,8 – 8,1 39,6 80 100/500/1000
3.640.1.2.2.0080.0.0005 5 0,8 – 8,6 49,1 96 100/500/1000
3.640.1.2.2.0080.0.0006 6 0,8 – 10,4 58,5 116 100/500/1000
3.640.1.2.2.0080.0.0008 8 0,8 – 10,7 77,3 141 100/500/1000
3.640.1.2.2.0080.0.0010 10 0,8 – 11,1 96,2 169 100/500/1000
3.640.1.2.2.0080.0.0012 12 0,8 – 11,9 115,1 197 100/500/1000
3.640.1.2.2.0080.0.0014 14 0,8 – 12,8 133,9 228 100/500/1000
3.640.1.2.2.0080.0.0016 16 0,8 – 13,5 152,8 255 100/500/1000
3.640.1.2.2.0080.0.0020 20 0,8 – 15,2 190,5 311 100/500/1000
3.640.1.2.2.0080.0.0024 24 0,8 – 16,2 228,3 370 100/500/1000
3.640.1.2.2.0080.0.0025 25 0,8 – 16,5 237,7 384 100/500/1000
3.640.1.2.2.0080.0.0030 30 0,8 – 21,3 284,8 470 100/500/1000
3.640.1.2.2.0080.0.0040 40 0,8 – 23,8 379,2 613 100/500/1000
3.640.1.2.2.0080.0.0050 50 0,8 – 26,4 473,5 748 100/500/1000
3.640.1.2.2.0080.0.0060 60 0,8 – 28,8 567,8 896 100/500/1000
3.640.1.2.2.0080.0.0080 80 0,8 – 32,3 756,4 1156 100/500/1000
3.640.1.2.2.0080.0.0100 100 0,8 – 36,8 945,1 1423 100/500/1000



Part
Number		 Pair
Count		 Conductor Diameter
(mm)		 Cross-section
(mm²)		 Average Cable Diameter
(mm)		 Copper Weight
(kg/km)		 Average Weight
(kg/km)		 Packaging Lengths
(m)
3.640.1.2.2.0100.0.0001 1 1 – 5,5 19,6 41 100/500/1000
3.640.1.2.2.0100.0.0002 2 1 – 6,3 34,4 64 100/500/1000
3.640.1.2.2.0100.0.0003 3 1 – 8,1 49,5 90 100/500/1000
3.640.1.2.2.0100.0.0004 4 1 – 9,6 64,3 115 100/500/1000
3.640.1.2.2.0100.0.0005 5 1 – 10,1 79,2 137 100/500/1000
3.640.1.2.2.0100.0.0006 6 1 – 12,3 94,1 166 100/500/1000
3.640.1.2.2.0100.0.0008 8 1 – 12,7 123,9 207 100/500/1000
3.640.1.2.2.0100.0.0010 10 1 – 13,1 153,6 243 100/500/1000
3.640.1.2.2.0100.0.0012 12 1 – 14,1 183,4 286 100/500/1000
3.640.1.2.2.0100.0.0014 14 1 – 15,2 213,1 331 100/500/1000
3.640.1.2.2.0100.0.0016 16 1 – 16,1 242,9 372 100/500/1000
3.640.1.2.2.0100.0.0020 20 1 – 18 302,4 454 100/500/1000



Part
Number		 Pair
Count		 Conductor Diameter
(mm)		 Cross-section
(mm²)		 Average Cable Diameter
(mm)		 Copper Weight
(kg/km)		 Average Weight
(kg/km)		 Packaging Lengths
(m)
3.640.1.2.2.0150.0.0001 1 – 1,5 6,8 32,2 63 100/500/1000
3.640.1.2.2.0150.0.0002 2 – 1,5 7,8 59,6 102 100/500/1000
3.640.1.2.2.0150.0.0003 3 – 1,5 10,2 87,4 147 100/500/1000
3.640.1.2.2.0150.0.0004 4 – 1,5 12,5 114,9 197 100/500/1000
3.640.1.2.2.0150.0.0005 5 – 1,5 13,1 142,4 233 100/500/1000
3.640.1.2.2.0150.0.0006 6 – 1,5 16,2 170 290 100/500/1000
3.640.1.2.2.0150.0.0008 8 – 1,5 16,9 225 368 100/500/1000
3.640.1.2.2.0150.0.0010 10 – 1,5 17,4 280 438 100/500/1000



Part
Number		 Pair
Count		 Conductor Diameter
(mm)		 Cross-section
(mm²)		 Average Cable Diameter
(mm)		 Copper Weight
(kg/km)		 Average Weight
(kg/km)		 Packaging Lengths
(m)
3.640.1.2.2.0250.0.0001 1 – 2,5 7,8 49,6 88 100/500/1000
3.640.1.2.2.0250.0.0002 2 – 2,5 9 94,4 148 100/500/1000
3.640.1.2.2.0250.0.0003 3 – 2,5 11,9 140 215 100/500/1000
3.640.1.2.2.0250.0.0004 4 – 2,5 14,5 185 283 100/500/1000
3.640.1.2.2.0250.0.0005 5 – 2,5 15,1 230,1 339 100/500/1000
3.640.1.2.2.0250.0.0006 6 – 2,5 18,9 275,1 419 100/500/1000
3.640.1.2.2.0250.0.0008 8 – 2,5 19,7 365,2 537 100/500/1000
3.640.1.2.2.0250.0.0010 10 – 2,5 20,3 455,3 647 100/500/1000
Bending Radius Temperature Range
Operating
10xD mm -30°C ~ +70°C
