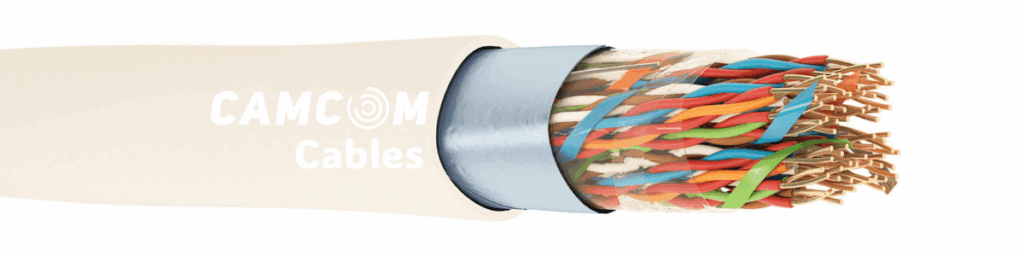

JE-2Y(St)Y xDSL Telecom Cable

Product Code:

1 – Conductor : Electrolytic solid copper conductor.

2 – Insulation : Solid polyethylene insulation

3 – Stranding : Pair stranding, pairs are stranded into groups

4 – Wrapping : Polyester tape

5 – Screen : Tinned copper earthing wire, Al/PET tape

6 – Outer Jacket : EN 50290-2-22. UV resistant PVC outer jacket. RAL 7035 (Grey)

Conductor Diameter Ω/km	Insulation Resistance MΩxkm (500 V DC)	Mutual Capacitance nF/km	Capacitance Unbalance	Dielectric Strength V	Operating Voltage V	Test Voltage V	Capacitance Unbalance pF/500m	Characteristic Impedance Ω
146	2000	56	%2	1000	250	1200	200	100±10

Flame Retardancy Test
IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2

Bending Radius	Temperature Range Operating
10xD mm	-40°C~+70°C

Frequency MHz	Insertion Loss dB/100m (Max.)	Near-end Crosstalk (NEXT) Loss dB (Min.)	Propagation Delay 5 n/m
1	≤30	≥55	≤6
10	≤100	≥45	≤5.7
16	≤110	≥40
20	≤120	≥38
30	≤160	≥35
