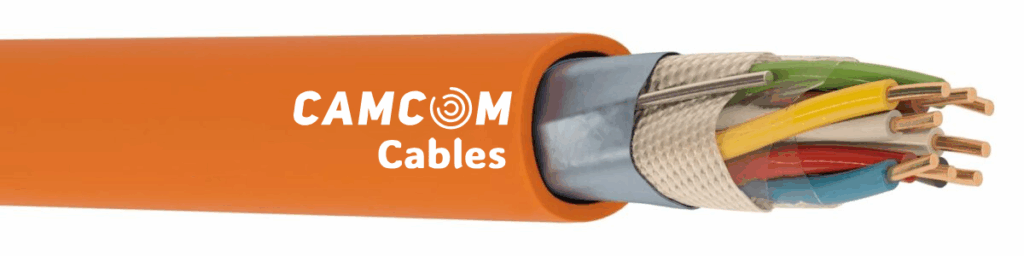

JE-H(St)H…Bd FE180 / E30-E60-E90 / PH120 Fire Resistant Cable
Product Code: JE-H(St)H...Bd FE180 / E30-E60-E90 / PH120
| 1 – Conductor | : | Class 1 electrolytic solid copper (IEC 60228, DIN VDE 0295, EN 60228) |
| 2 – Insulation | : | Cross-linked polymer compound in ceramic form (VDE 0815) |
| 3 – Stranding | : | Insulations are stranded into pairs, four pairs are stranded together into groups, groups are stranded in layers. |
| 4 – Wrapping | : | Polyester tape, glass yarn tape |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 2008 (Orange) |
| Conductor Diameter |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance (@500V DC) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.60 mm | 130.0 | 100 | 100 | 300 | 1000 |
| 0.80 mm | 73.2 | 100 | 100 | 300 | 1000 |
| 1.00 mm | 44.6 | 100 | 100 | 300 | 1000 |
| 1.50 mm² | 24.6 | 100 | 100 | 300 | 1000 |
| 2.50 mm² | 15.1 | 100 | 100 | 300 | 1000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|
| IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 |
IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 |
IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 |
IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 |
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Circuit Integrity Test (FE180) |
Circuit Integrity with Shock Test (PH120) |
Cable System Circuit Integrity Test (E30 / E60 / E90) |
|---|---|---|
| IEC 60331-21 | EN 50200, VDE 0482-200, BS EN 50200 |
DIN 4102-12 E30 / E60 / E90 |
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.650.1.4.3.1080.0.0001 | 1 | 0,8 | 5.4 | 14.3 | 38 | 100/500/1000 |
| 3.650.1.4.3.1080.0.0002 | 2 | 0,8 | 6.2 | 23.8 | 54 | 100/500/1000 |
| 3.650.1.4.3.1080.0.0003 | 3 | 0,8 | 7.9 | 33.4 | 80 | 100/500/1000 |
| 3.650.1.4.3.1080.0.0004 | 4 | 0,8 | 9.5 | 42.9 | 103 | 100/500/1000 |
| 3.650.1.4.3.1080.0.0005 | 5 | 0,8 | 9.8 | 52.4 | 119 | 100/500/1000 |
| 3.650.1.4.3.1080.0.0006 | 6 | 0,8 | 11.9 | 62 | 144 | 100/500/1000 |
| 3.650.1.4.3.1080.0.0008 | 8 | 0,8 | 12.3 | 81 | 178 | 100/500/1000 |
| 3.650.1.4.3.1080.0.0010 | 10 | 0,8 | 12.8 | 100.1 | 208 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -40°C ~ +70°C |
