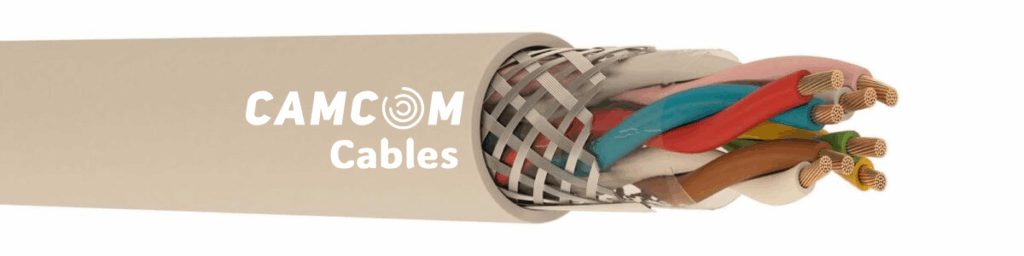

LI2YCH-TP/TT Signal Control Cable
Product Code: I2YCH-TP/TT
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100) |
| 3 – Stranding | : | Insulations are stranded into pairs or triads and all pairs or triads are stranded together. |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 5000 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 5000 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 5000 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 5000 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 5000 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 5000 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 5000 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 5000 | 150 | 300/500 | 2000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|
| IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 |
IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 |
IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 |
IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 |
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0022.0.0002 | – | 2 | 0,22 | 4,9 | 15,1 | 31 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0003 | – | 3 | 0,22 | 5,7 | 20,8 | 41 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0004 | – | 4 | 0,22 | 6,9 | 26,5 | 53 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0005 | – | 5 | 0,22 | 7,4 | 32,3 | 63 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0006 | – | 6 | 0,22 | 8,2 | 36,7 | 73 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0007 | – | 7 | 0,22 | 8,3 | 42 | 81 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0008 | – | 8 | 0,22 | 9 | 50,3 | 94 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0009 | – | 9 | 0,22 | 10,5 | 54,6 | 106 | 100/500/1000 |
| 3.521.2.2.2.0022.0.0010 | – | 10 | 0,22 | 10,6 | 59 | 114 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0025.0.0002 | – | 2 | 0,25 | 5,2 | 17,5 | 34 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0003 | – | 3 | 0,25 | 6,1 | 22,9 | 45 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0004 | – | 4 | 0,25 | 7,4 | 29,9 | 61 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0005 | – | 5 | 0,25 | 8 | 35 | 70 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0006 | – | 6 | 0,25 | 8,8 | 41 | 83 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0007 | – | 7 | 0,25 | 8,9 | 46,7 | 92 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0008 | – | 8 | 0,25 | 9,7 | 55,3 | 106 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0009 | – | 9 | 0,25 | 11,4 | 59,6 | 119 | 100/500/1000 |
| 3.521.2.2.2.0025.0.0010 | – | 10 | 0,25 | 11,5 | 64,5 | 128 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0034.0.0002 | – | 2 | 0,34 | 5,8 | 21,5 | 41 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0003 | – | 3 | 0,34 | 6,8 | 30,7 | 57 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0004 | – | 4 | 0,34 | 8,3 | 38,2 | 75 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0005 | – | 5 | 0,34 | 9 | 46,3 | 88 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0006 | – | 6 | 0,34 | 9,9 | 56,9 | 106 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0007 | – | 7 | 0,34 | 9,9 | 63,1 | 114 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0008 | – | 8 | 0,34 | 10,9 | 70,4 | 130 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0009 | – | 9 | 0,34 | 12,8 | 77,3 | 147 | 100/500/1000 |
| 3.521.2.2.2.0034.0.0010 | – | 10 | 0,34 | 12,9 | 84,9 | 160 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0050.0.0002 | – | 2 | 0,5 | 6,4 | 27,9 | 57 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0003 | – | 3 | 0,5 | 7,5 | 37,3 | 67 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0004 | – | 4 | 0,5 | 9,2 | 51,8 | 94 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0005 | – | 5 | 0,5 | 10,1 | 60,6 | 108 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0006 | – | 6 | 0,5 | 11 | 69,3 | 126 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0007 | – | 7 | 0,5 | 11,1 | 78,3 | 140 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0008 | – | 8 | 0,5 | 12,1 | 88,7 | 158 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0009 | – | 9 | 0,5 | 14,2 | 98,8 | 179 | 100/500/1000 |
| 3.521.2.2.2.0050.0.0010 | – | 10 | 0,5 | 14,3 | 108 | 195 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0075.0.0002 | – | 2 | 0,75 | 7 | 37,6 | 70 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0003 | – | 3 | 0,75 | 9 | 51,9 | 88 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0004 | – | 4 | 0,75 | 10,1 | 70,3 | 116 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0005 | – | 5 | 0,75 | 11 | 82,7 | 135 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0006 | – | 6 | 0,75 | 12,1 | 96,7 | 159 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0007 | – | 7 | 0,75 | 12,2 | 111,1 | 180 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0008 | – | 8 | 0,75 | 13,3 | 125,8 | 202 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0009 | – | 9 | 0,75 | 15,6 | 140,7 | 230 | 100/500/1000 |
| 3.521.2.2.2.0075.0.0010 | – | 10 | 0,75 | 15,7 | 154,5 | 250 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0100.0.0002 | – | 2 | 1 | 7,6 | 44,5 | 81 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0003 | – | 3 | 1 | 9,7 | 66 | 103 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0004 | – | 4 | 1 | 10,9 | 82,6 | 134 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0005 | – | 5 | 1 | 12 | 100,1 | 160 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0006 | – | 6 | 1 | 13,2 | 118,8 | 189 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0007 | – | 7 | 1 | 13,3 | 137,1 | 214 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0008 | – | 8 | 1 | 14,5 | 154,4 | 240 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0009 | – | 9 | 1 | 17,1 | 177,5 | 278 | 100/500/1000 |
| 3.521.2.2.2.0100.0.0010 | – | 10 | 1 | 17,2 | 196,8 | 305 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0150.0.0002 | – | 2 | 1,5 | 8,4 | 63,8 | 107 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0003 | – | 3 | 1,5 | 10,9 | 95 | 140 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0004 | – | 4 | 1,5 | 12,2 | 120,4 | 178 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0005 | – | 5 | 1,5 | 13,4 | 148,5 | 215 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0006 | – | 6 | 1,5 | 14,8 | 176,2 | 255 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0007 | – | 7 | 1,5 | 14,9 | 202,9 | 289 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0008 | – | 8 | 1,5 | 16,3 | 235,4 | 331 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0009 | – | 9 | 1,5 | 19,3 | 264,1 | 376 | 100/500/1000 |
| 3.521.2.2.2.0150.0.0010 | – | 10 | 1,5 | 19,4 | 290,8 | 412 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.521.2.2.2.0250.0.0002 | – | 2 | 2,5 | 10,8 | 102,5 | 175 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0003 | – | 3 | 2,5 | 13,9 | 148,6 | 229 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0004 | – | 4 | 2,5 | 15,5 | 198,4 | 298 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0005 | – | 5 | 2,5 | 17,1 | 246,5 | 360 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0006 | – | 6 | 2,5 | 18,8 | 291 | 424 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0007 | – | 7 | 2,5 | 18,9 | 338,3 | 481 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0008 | – | 8 | 2,5 | 20,6 | 383,1 | 541 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0009 | – | 9 | 2,5 | 24,4 | 430,6 | 622 | 100/500/1000 |
| 3.521.2.2.2.0250.0.0010 | – | 10 | 2,5 | 24,4 | 475,2 | 673 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
