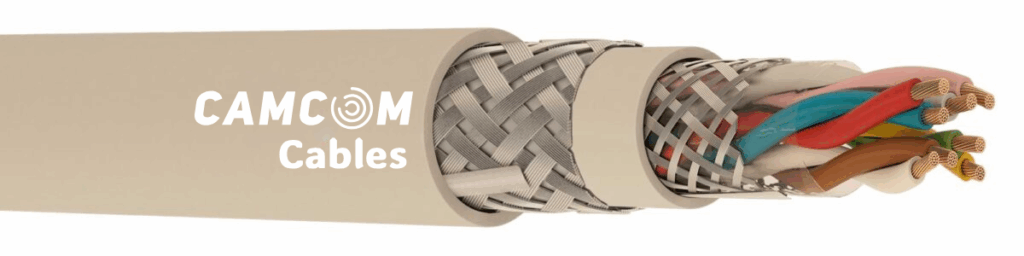

LI2YCHSWBH-TP/TT Signal Control Cable

Product Code: LI2YCHSWBH-TP/TT

1 – Conductor	:	Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation	:	Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100)
3 – Stranding	:	Insulations are stranded into pairs or triads and all pairs or triads are stranded together.
4 – Wrapping	:	Polyester tape
5 – Screen	:	Tinned copper braiding
6 – Inner Jacket	:	UV resistant halogen-free inner jacket. RAL 7035 (Grey)
7 – Armor	:	Galvanized steel wire braiding
8 – Outer Jacket	:	UV resistant halogen-free outer jacket. RAL 7035 (Grey)

Cross Section	Conductor Resistance (20 °C) Ω/km	Insulation Resistance (20 °C) MΩ/km	Mutual Capacitance nF/km	Operating VoltageV DC	Test Voltage (@ 1 minute) V DC
0.22 mm²	85.0	5000	110	250	1200
0.25 mm²	77.8	5000	110	250	1200
0.34 mm²	56.0	5000	110	250	1200
0.50 mm²	39.0	5000	120	300/500	2000
0.75 mm²	26.0	5000	120	300/500	2000
1.00 mm²	19.5	5000	130	300/500	2000
1.50 mm²	13.3	5000	140	300/500	2000
2.50 mm²	7.98	5000	150	300/500	2000

Smoke Density Test	Corrosive Gas Test	Halogen-free Test	Flame Propagation Test	Flame Retardancy Test
IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2	IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3	IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1	IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24	IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2
