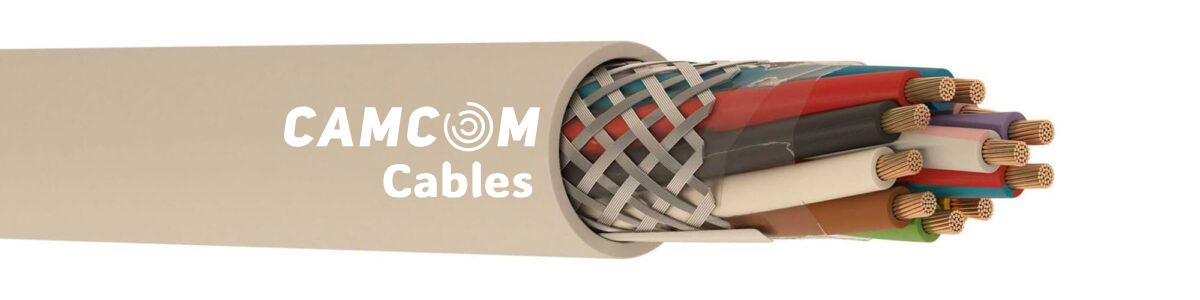

LI2YCY Signal Control Cable
Product Code: LI2YCY
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100) |
| 3 – Stranding | : | In layers |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating Voltage V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 5000 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 5000 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 5000 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 5000 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 5000 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 5000 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 5000 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 5000 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0022.0.0002 | 2 | – | 0,22 | 3,7 | 9,7 | 19 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0003 | 3 | – | 0,22 | 3,9 | 11,8 | 23 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0004 | 4 | – | 0,22 | 4,2 | 15,2 | 28 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0005 | 5 | – | 0,22 | 4,7 | 17,5 | 34 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0006 | 6 | – | 0,22 | 5,1 | 20,9 | 39 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0007 | 7 | – | 0,22 | 5,1 | 23 | 42 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0008 | 8 | – | 0,22 | 5,7 | 25,5 | 49 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0009 | 9 | – | 0,22 | 6 | 28,7 | 54 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0010 | 10 | – | 0,22 | 6,5 | 30,8 | 59 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0012 | 12 | – | 0,22 | 6,8 | 35,9 | 67 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0014 | 14 | – | 0,22 | 7,2 | 40,8 | 76 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0016 | 16 | – | 0,22 | 7,5 | 45,8 | 84 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0018 | 18 | – | 0,22 | 8 | 50,7 | 94 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0019 | 19 | – | 0,22 | 8 | 52,8 | 97 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0020 | 20 | – | 0,22 | 8,3 | 55,7 | 102 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0021 | 21 | – | 0,22 | 8,3 | 57,8 | 105 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0024 | 24 | – | 0,22 | 9,3 | 68,8 | 124 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0025 | 25 | – | 0,22 | 9,3 | 71 | 127 | 100/500/1000 |
| 3.520.2.2.2.0022.0.0027 | 27 | – | 0,22 | 9,5 | 76,3 | 134 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0025.0.0002 | 2 | – | 0,25 | 3,9 | 11,5 | 22 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0003 | 3 | – | 0,25 | 4,1 | 13,9 | 26 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0004 | 4 | – | 0,25 | 4,6 | 16,3 | 32 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0005 | 5 | – | 0,25 | 5,1 | 20,1 | 39 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0006 | 6 | – | 0,25 | 5,5 | 23 | 44 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0007 | 7 | – | 0,25 | 5,5 | 24,9 | 47 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0008 | 8 | – | 0,25 | 6,1 | 28,7 | 56 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0009 | 9 | – | 0,25 | 6,5 | 31,3 | 61 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0010 | 10 | – | 0,25 | 7 | 34 | 66 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0012 | 12 | – | 0,25 | 7,3 | 39,7 | 76 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0014 | 14 | – | 0,25 | 7,7 | 45,8 | 87 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0016 | 16 | – | 0,25 | 8,1 | 51,4 | 96 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0018 | 18 | – | 0,25 | 8,5 | 56,3 | 104 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0019 | 19 | – | 0,25 | 8,5 | 58,7 | 107 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0020 | 20 | – | 0,25 | 9 | 61,4 | 115 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0021 | 21 | – | 0,25 | 9 | 63,8 | 118 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0024 | 24 | – | 0,25 | 10 | 76,7 | 141 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0025 | 25 | – | 0,25 | 10 | 79,1 | 144 | 100/500/1000 |
| 3.520.2.2.2.0025.0.0027 | 27 | – | 0,25 | 10,2 | 84,1 | 151 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0034.0.0002 | 2 | – | 0,34 | 4,5 | 13,4 | 27 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0003 | 3 | – | 0,34 | 4,7 | 16,7 | 33 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0004 | 4 | – | 0,34 | 5,1 | 21,4 | 40 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0005 | 5 | – | 0,34 | 5,6 | 25 | 47 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0006 | 6 | – | 0,34 | 6,1 | 29,7 | 54 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0007 | 7 | – | 0,34 | 6,1 | 33 | 59 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0008 | 8 | – | 0,34 | 6,7 | 37 | 67 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0009 | 9 | – | 0,34 | 7,7 | 40,9 | 76 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0010 | 10 | – | 0,34 | 7,8 | 45 | 83 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0012 | 12 | – | 0,34 | 8 | 53 | 94 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0014 | 14 | – | 0,34 | 8,5 | 62,7 | 109 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0016 | 16 | – | 0,34 | 9 | 71 | 122 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0018 | 18 | – | 0,34 | 9,6 | 77,8 | 137 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0019 | 19 | – | 0,34 | 9,6 | 81,2 | 142 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0020 | 20 | – | 0,34 | 10,2 | 85,9 | 152 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0021 | 21 | – | 0,34 | 10,2 | 89,3 | 157 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0024 | 24 | – | 0,34 | 11,3 | 98,3 | 177 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0025 | 25 | – | 0,34 | 11,3 | 101,7 | 181 | 100/500/1000 |
| 3.520.2.2.2.0034.0.0027 | 27 | – | 0,34 | 11,5 | 108,4 | 192 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0050.0.0002 | 2 | – | 0,5 | 5,1 | 16,9 | 35 | 100/500/1000 |
| 3.520.2.2.2.0050.0.0003 | 3 | – | 0,5 | 5,4 | 21,3 | 42 | 100/500/1000 |
| 3.520.2.2.2.0050.0.0004 | 4 | – | 0,5 | 5,8 | 26 | 50 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0005 | 5 | – | 0,5 | 6,4 | 31,5 | 61 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0006 | 6 | – | 0,5 | 6,9 | 37,6 | 71 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0007 | 7 | – | 0,5 | 6,9 | 42 | 75 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0008 | 8 | – | 0,5 | 7,6 | 46,9 | 90 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0009 | 9 | – | 0,5 | 8,8 | 51,9 | 101 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0010 | 10 | – | 0,5 | 8,8 | 57,1 | 105 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0012 | 12 | – | 0,5 | 9,2 | 69,5 | 124 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0014 | 14 | – | 0,5 | 9,7 | 80,5 | 142 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0016 | 16 | – | 0,5 | 10,2 | 89,7 | 156 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0018 | 18 | – | 0,5 | 10,7 | 96,7 | 171 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0019 | 19 | – | 0,5 | 10,7 | 101,1 | 175 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0020 | 20 | – | 0,5 | 11,4 | 106,4 | 191 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0021 | 21 | – | 0,5 | 11,4 | 110,8 | 193 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0024 | 24 | – | 0,5 | 12,6 | 125,5 | 220 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0025 | 25 | – | 0,5 | 12,6 | 129,9 | 231 | 100/500/1000 |
| 3.520.3.2.2.0050.0.0027 | 27 | – | 0,5 | 12,8 | 140,1 | 241 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0075.0.0002 | 2 | – | 0,75 | 5,5 | 21,6 | 42 | 100/500/1000 |
| 3.520.2.2.2.0075.0.0003 | 3 | – | 0,75 | 5,8 | 28,2 | 51 | 100/500/1000 |
| 3.520.2.2.2.0075.0.0004 | 4 | – | 0,75 | 6,3 | 35,9 | 62 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0005 | 5 | – | 0,75 | 6,9 | 43,4 | 76 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0006 | 6 | – | 0,75 | 7,5 | 51,9 | 89 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0007 | 7 | – | 0,75 | 7,5 | 58,9 | 95 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0008 | 8 | – | 0,75 | 8,3 | 65,9 | 113 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0009 | 9 | – | 0,75 | 9,6 | 76,1 | 130 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0010 | 10 | – | 0,75 | 9,6 | 83,7 | 137 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0012 | 12 | – | 0,75 | 10 | 98,3 | 158 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0014 | 14 | – | 0,75 | 10,6 | 109,3 | 177 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0016 | 16 | – | 0,75 | 11,1 | 123,9 | 197 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0018 | 18 | – | 0,75 | 11,8 | 138,3 | 223 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0019 | 19 | – | 0,75 | 11,8 | 144,9 | 229 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0020 | 20 | – | 0,75 | 12,6 | 156,9 | 253 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0021 | 21 | – | 0,75 | 12,6 | 163,5 | 257 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0024 | 24 | – | 0,75 | 13,8 | 185,2 | 292 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0025 | 25 | – | 0,75 | 13,8 | 191,8 | 304 | 100/500/1000 |
| 3.520.3.2.2.0075.0.0027 | 27 | – | 0,75 | 14,2 | 206,7 | 321 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0100.0.0002 | 2 | – | 1 | 5,9 | 25,1 | 47 | 100/500/1000 |
| 3.520.2.2.2.0100.0.0003 | 3 | – | 1 | 6,2 | 34,2 | 59 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0004 | 4 | – | 1 | 6,6 | 43,3 | 72 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0005 | 5 | – | 1 | 7,5 | 52,2 | 90 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0006 | 6 | – | 1 | 8,2 | 66,1 | 110 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0007 | 7 | – | 1 | 8,2 | 74,4 | 117 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0008 | 8 | – | 1 | 9,1 | 83,6 | 139 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0009 | 9 | – | 1 | 10,5 | 91 | 155 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0010 | 10 | – | 1 | 10,5 | 99,3 | 161 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0012 | 12 | – | 1 | 10,9 | 116,5 | 187 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0014 | 14 | – | 1 | 11,6 | 134 | 213 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0016 | 16 | – | 1 | 12,2 | 151,8 | 238 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0018 | 18 | – | 1 | 12,9 | 173,6 | 273 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0019 | 19 | – | 1 | 12,9 | 181,8 | 280 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0020 | 20 | – | 1 | 13,6 | 191,6 | 301 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0021 | 21 | – | 1 | 13,6 | 199,9 | 305 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0024 | 24 | – | 1 | 15,1 | 227,3 | 349 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0025 | 25 | – | 1 | 15,1 | 235,6 | 366 | 100/500/1000 |
| 3.520.3.2.2.0100.0.0027 | 27 | – | 1 | 15,4 | 254,5 | 384 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0150.0.0002 | 2 | – | 1,5 | 6,6 | 35,7 | 62 | 100/500/1000 |
| 3.520.2.2.2.0150.0.0003 | 3 | – | 1,5 | 7 | 48,5 | 78 | 100/500/1000 |
| 3.520.2.2.2.0150.0.0004 | 4 | – | 1,5 | 7,7 | 62,7 | 99 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0005 | 5 | – | 1,5 | 8,5 | 77,2 | 122 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0006 | 6 | – | 1,5 | 9,2 | 94,8 | 146 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0007 | 7 | – | 1,5 | 9,2 | 107,7 | 157 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0008 | 8 | – | 1,5 | 10,1 | 119,6 | 184 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0009 | 9 | – | 1,5 | 11,8 | 132,6 | 207 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0010 | 10 | – | 1,5 | 11,8 | 146,8 | 219 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0012 | 12 | – | 1,5 | 12,3 | 173,7 | 255 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0014 | 14 | – | 1,5 | 13 | 204,9 | 296 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0016 | 16 | – | 1,5 | 13,7 | 232,1 | 331 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0018 | 18 | – | 1,5 | 14,4 | 259,8 | 371 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0019 | 19 | – | 1,5 | 14,4 | 272,7 | 382 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0020 | 20 | – | 1,5 | 15,3 | 286,2 | 413 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0021 | 21 | – | 1,5 | 15,3 | 299 | 420 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0024 | 24 | – | 1,5 | 17,1 | 341,3 | 486 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0025 | 25 | – | 1,5 | 17,1 | 354,1 | 509 | 100/500/1000 |
| 3.520.3.2.2.0150.0.0027 | 27 | – | 1,5 | 17,5 | 380,3 | 533 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0250.0.0002 | 2 | – | 2,5 | 7,8 | 58,8 | 91 | 100/500/1000 |
| 3.520.2.2.2.0250.0.0003 | 3 | – | 2,5 | 8,3 | 80,2 | 117 | 100/500/1000 |
| 3.520.2.2.2.0250.0.0004 | 4 | – | 2,5 | 9,3 | 103,4 | 151 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0005 | 5 | – | 2,5 | 10,3 | 123,9 | 186 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0006 | 6 | – | 2,5 | 11,2 | 148,1 | 221 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0007 | 7 | – | 2,5 | 11,2 | 169,5 | 238 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0008 | 8 | – | 2,5 | 12,3 | 192,4 | 282 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0009 | 9 | – | 2,5 | 14,5 | 219,2 | 327 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0010 | 10 | – | 2,5 | 14,5 | 242,5 | 346 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0012 | 12 | – | 2,5 | 15,1 | 285,9 | 401 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0014 | 14 | – | 2,5 | 16 | 332 | 461 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0016 | 16 | – | 2,5 | 16,8 | 378,5 | 519 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0018 | 18 | – | 2,5 | 17,8 | 422,7 | 586 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0019 | 19 | – | 2,5 | 17,8 | 444,1 | 603 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0020 | 20 | – | 2,5 | 18,8 | 466,7 | 647 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0021 | 21 | – | 2,5 | 18,8 | 488,4 | 659 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0024 | 24 | – | 2,5 | 20,9 | 555,8 | 753 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0025 | 25 | – | 2,5 | 20,9 | 577,2 | 792 | 100/500/1000 |
| 3.520.3.2.2.0250.0.0027 | 27 | – | 2,5 | 21,4 | 620,8 | 830 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.2.2.2.0400.0.0002 | 2 | – | 4 | 8,9 | 86 | 131 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0003 | 3 | – | 4 | 9,5 | 120,3 | 164 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0004 | 4 | – | 4 | 10,8 | 154 | 217 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0005 | 5 | – | 4 | 11,8 | 190,8 | 267 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0006 | 6 | – | 4 | 12,8 | 232,3 | 318 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0007 | 7 | – | 4 | 12,8 | 266,6 | 346 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0008 | 8 | – | 4 | 14,1 | 303 | 408 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0009 | 9 | – | 4 | 16,5 | 339,9 | 461 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0010 | 10 | – | 4 | 16,5 | 375 | 490 | 100/500/1000 |
| 3.520.3.2.2.0400.0.0012 | 12 | – | 4 | 17,2 | 444,6 | 573 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.3.2.2.0600.0.0002 | 2 | – | 6 | 10,5 | 121,3 | 179 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0003 | 3 | – | 6 | 11,2 | 172,7 | 228 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0004 | 4 | – | 6 | 12,4 | 225,7 | 296 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0005 | 5 | – | 6 | 13,9 | 284 | 378 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0006 | 6 | – | 6 | 15,2 | 341,1 | 453 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0007 | 7 | – | 6 | 15,2 | 392,5 | 495 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0008 | 8 | – | 6 | 16,8 | 447,7 | 585 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0009 | 9 | – | 6 | 19,7 | 500,5 | 659 | 100/500/1000 |
| 3.520.3.2.2.0600.0.0010 | 10 | – | 6 | 19,7 | 553,2 | 702 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.3.2.2.1000.0.0002 | 2 | – | 10 | 12,5 | 204,5 | 270 | 100/500/1000 |
| 3.520.3.2.2.1000.0.0003 | 3 | – | 10 | 13,4 | 293,5 | 358 | 100/500/1000 |
| 3.520.3.2.2.1000.0.0004 | 4 | – | 10 | 14,9 | 385,4 | 467 | 100/500/1000 |
| 3.520.3.2.2.1000.0.0005 | 5 | – | 10 | 16,6 | 478,2 | 580 | 100/500/1000 |
| 3.520.3.2.2.1000.0.0006 | 6 | – | 10 | 18,2 | 573,6 | 710 | 100/500/1000 |
| 3.520.3.2.2.1000.0.0007 | 7 | – | 10 | 18,2 | 662,6 | 782 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.520.3.2.2.1600.0.0002 | 2 | – | 16 | 16,9 | 314,5 | 442 | 100/500/1000 |
| 3.520.3.2.2.1600.0.0003 | 3 | – | 16 | 18,1 | 454,7 | 588 | 100/500/1000 |
| 3.520.3.2.2.1600.0.0004 | 4 | – | 16 | 20,1 | 601,2 | 768 | 100/500/1000 |
| 3.520.3.2.2.1600.0.0005 | 5 | – | 16 | 22,4 | 748,7 | 978 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
