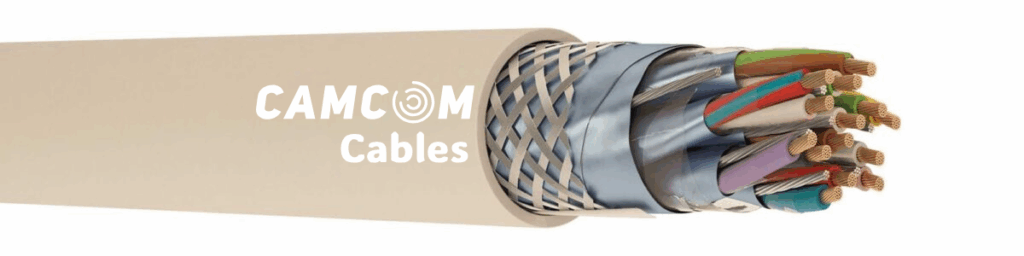

LI2Y(St)CH-PiMF/TiMF Signal Control Cable
Product Code: LI2Y(St)CH-PiMF/TiMF
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100) |
| 3 – Stranding | : | Screened pairs or triads are stranded in layers. |
| 4 – Individual Wrapping | : | Polyester tape |
| 5 – Individual Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Wrapping | : | Polyester tape |
| 7 – Screen | : | Al/PET tape, tinned copper braiding |
| 8 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 5000 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 5000 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 5000 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 5000 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 5000 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 5000 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 5000 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 5000 | 150 | 300/500 | 2000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|
| IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 |
IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 |
IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 |
IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 |
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0022.0.0002 | – | 2 | 0,22 | 7,2 | 26,6 | 52 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0003 | – | 3 | 0,22 | 7,7 | 33,8 | 64 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0004 | – | 4 | 0,22 | 8,6 | 42 | 81 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0005 | – | 5 | 0,22 | 9,4 | 49,4 | 94 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0006 | – | 6 | 0,22 | 11 | 57,9 | 110 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0007 | – | 7 | 0,22 | 11 | 64,3 | 122 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0008 | – | 8 | 0,22 | 12 | 72,1 | 135 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0009 | – | 9 | 0,22 | 13 | 81,8 | 155 | 100/500/1000 |
| 3.550.2.1.3.0022.0.0010 | – | 10 | 0,22 | 14 | 88,3 | 167 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0025.0.0002 | – | 2 | 0,25 | 7,6 | 28,4 | 55 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0003 | – | 3 | 0,25 | 8,1 | 36,2 | 69 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0004 | – | 4 | 0,25 | 9,2 | 44,5 | 87 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0005 | – | 5 | 0,25 | 9,9 | 53,3 | 102 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0006 | – | 6 | 0,25 | 11 | 62,3 | 119 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0007 | – | 7 | 0,25 | 11 | 69,3 | 132 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0008 | – | 8 | 0,25 | 12 | 77,6 | 146 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0009 | – | 9 | 0,25 | 14 | 88,7 | 169 | 100/500/1000 |
| 3.550.2.1.3.0025.0.0010 | – | 10 | 0,25 | 14 | 95,7 | 182 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0034.0.0002 | – | 2 | 0,34 | 8,6 | 33,2 | 66 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0003 | – | 3 | 0,34 | 9,2 | 43,2 | 83 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0004 | – | 4 | 0,34 | 11 | 53,8 | 103 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0005 | – | 5 | 0,34 | 12 | 64 | 123 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0006 | – | 6 | 0,34 | 13 | 75 | 141 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0007 | – | 7 | 0,34 | 13 | 83,9 | 156 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0008 | – | 8 | 0,34 | 14 | 94,6 | 175 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0009 | – | 9 | 0,34 | 16 | 113,7 | 210 | 100/500/1000 |
| 3.550.2.1.3.0034.0.0010 | – | 10 | 0,34 | 16 | 122,6 | 226 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0050.0.0002 | – | 2 | 0,5 | 9,8 | 48,4 | 88 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0003 | – | 3 | 0,5 | 11 | 63,1 | 112 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0004 | – | 4 | 0,5 | 12 | 78,2 | 140 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0005 | – | 5 | 0,5 | 13 | 94,6 | 165 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0006 | – | 6 | 0,5 | 14 | 110,7 | 193 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0007 | – | 7 | 0,5 | 14 | 124,4 | 214 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0008 | – | 8 | 0,5 | 16 | 145,9 | 245 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0009 | – | 9 | 0,5 | 18 | 165,5 | 285 | 100/500/1000 |
| 3.550.2.1.3.0050.0.0010 | – | 10 | 0,5 | 18 | 179,2 | 303 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0075.0.0002 | – | 2 | 0,75 | 11 | 58,3 | 105 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0003 | – | 3 | 0,75 | 12 | 77,7 | 134 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0004 | – | 4 | 0,75 | 13 | 98,4 | 172 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0005 | – | 5 | 0,75 | 14 | 119 | 202 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0006 | – | 6 | 0,75 | 16 | 145 | 242 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0007 | – | 7 | 0,75 | 16 | 163,1 | 268 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0008 | – | 8 | 0,75 | 17 | 182,7 | 299 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0009 | – | 9 | 0,75 | 20 | 207,5 | 348 | 100/500/1000 |
| 3.550.2.1.3.0075.0.0010 | – | 10 | 0,75 | 20 | 225,6 | 370 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0100.0.0002 | – | 2 | 1 | 12 | 66,2 | 119 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0003 | – | 3 | 1 | 13 | 89 | 153 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0004 | – | 4 | 1 | 14 | 113,8 | 194 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0005 | – | 5 | 1 | 15 | 143,1 | 235 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0006 | – | 6 | 1 | 17 | 166,1 | 273 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0007 | – | 7 | 1 | 17 | 187,6 | 304 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0008 | – | 8 | 1 | 18 | 213,4 | 342 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0009 | – | 9 | 1 | 6,8 | 246,8 | 397 | 100/500/1000 |
| 3.550.2.1.3.0100.0.0010 | – | 10 | 1 | 21 | 268,3 | 428 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0150.0.0002 | – | 2 | 1,5 | 13 | 87,1 | 145 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0003 | – | 3 | 1,5 | 14 | 118,5 | 188 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0004 | – | 4 | 1,5 | 15 | 156,4 | 243 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0005 | – | 5 | 1,5 | 16 | 190,5 | 289 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0006 | – | 6 | 1,5 | 18 | 225,6 | 341 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0007 | – | 7 | 1,5 | 18 | 256,4 | 380 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0008 | – | 8 | 1,5 | 20 | 289,3 | 427 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0009 | – | 9 | 1,5 | 23 | 332,8 | 498 | 100/500/1000 |
| 3.550.2.1.3.0150.0.0010 | – | 10 | 1,5 | 23 | 363,5 | 534 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.1.3.0250.0.0002 | – | 2 | 2,5 | 13 | 131,9 | 214 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0003 | – | 3 | 2,5 | 14 | 181 | 280 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0004 | – | 4 | 2,5 | 15 | 233,4 | 356 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0005 | – | 5 | 2,5 | 16 | 284 | 424 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0006 | – | 6 | 2,5 | 18 | 342,2 | 505 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0007 | – | 7 | 2,5 | 18 | 390,1 | 566 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0008 | – | 8 | 2,5 | 20 | 441,6 | 637 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0009 | – | 9 | 2,5 | 23 | 503,8 | 739 | 100/500/1000 |
| 3.550.2.1.3.0250.0.0010 | – | 10 | 2,5 | 23 | 551,8 | 794 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
