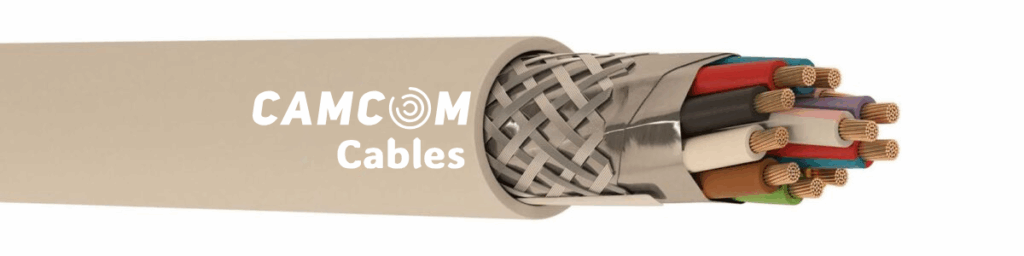

LI2Y(St)CH Signal Control Cable
Product Code: LI2Y(St)CH
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100) |
| 3 – Stranding | : | In layers |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Al/PET tape, tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 5000 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 5000 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 5000 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 5000 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 5000 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 5000 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 5000 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 5000 | 150 | 300/500 | 2000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|
| IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 |
IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 |
IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 |
IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 |
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.3.1.3.0022.0.0002 | 2 | – | 0,22 | 3,8 | 9,7 | 20 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0003 | 3 | – | 0,22 | 4 | 11,8 | 23 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0004 | 4 | – | 0,22 | 4,4 | 14 | 28 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0005 | 5 | – | 0,22 | 4,8 | 16,2 | 32 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0006 | 6 | – | 0,22 | 5,2 | 18,4 | 37 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0007 | 7 | – | 0,22 | 5,2 | 20,5 | 40 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0008 | 8 | – | 0,22 | 5,6 | 23,9 | 46 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0009 | 9 | – | 0,22 | 6 | 26,3 | 50 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0010 | 10 | – | 0,22 | 6,5 | 28,4 | 56 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0012 | 12 | – | 0,22 | 6,8 | 33,7 | 65 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0014 | 14 | – | 0,22 | 7,1 | 38,4 | 72 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0016 | 16 | – | 0,22 | 7,5 | 42,9 | 79 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0018 | 18 | – | 0,22 | 7,8 | 47,4 | 86 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0019 | 19 | – | 0,22 | 7,8 | 49,5 | 89 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0020 | 20 | – | 0,22 | 8,2 | 52,4 | 94 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0021 | 21 | – | 0,22 | 8,2 | 54,5 | 97 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0024 | 24 | – | 0,22 | 9,1 | 62,5 | 112 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0025 | 25 | – | 0,22 | 9,1 | 64,6 | 115 | 100/500/1000 |
| 3.522.3.1.3.0022.0.0027 | 27 | – | 0,22 | 9,3 | 69,4 | 122 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.3.1.3.0034.0.0002 | 2 | – | 0,34 | 4,6 | 13,4 | 28 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0003 | 3 | – | 0,34 | 4,9 | 16,7 | 33 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0004 | 4 | – | 0,34 | 5,4 | 20 | 40 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0005 | 5 | – | 0,34 | 5,9 | 24,7 | 49 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0006 | 6 | – | 0,34 | 6,3 | 28 | 55 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0007 | 7 | – | 0,34 | 6,3 | 31,3 | 60 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0008 | 8 | – | 0,34 | 6,8 | 36 | 67 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0009 | 9 | – | 0,34 | 7,4 | 39,3 | 75 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0010 | 10 | – | 0,34 | 7,9 | 44 | 83 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0012 | 12 | – | 0,34 | 8,2 | 50,6 | 93 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0014 | 14 | – | 0,34 | 8,8 | 57,3 | 107 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0016 | 16 | – | 0,34 | 9,2 | 63,9 | 118 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0018 | 18 | – | 0,34 | 9,7 | 70,6 | 131 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0019 | 19 | – | 0,34 | 9,7 | 73,9 | 136 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0020 | 20 | – | 0,34 | 11 | 77,3 | 142 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0021 | 21 | – | 0,34 | 11 | 80,6 | 147 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0024 | 24 | – | 0,34 | 12 | 95,2 | 175 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0025 | 25 | – | 0,34 | 12 | 98,6 | 179 | 100/500/1000 |
| 3.522.3.1.3.0034.0.0027 | 27 | – | 0,34 | 12 | 105,2 | 189 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.3.1.3.0050.0.0002 | 2 | – | 0,5 | 5 | 15,6 | 32 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0003 | 3 | – | 0,5 | 5,3 | 20,1 | 39 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0004 | 4 | – | 0,5 | 5,8 | 24,6 | 48 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0005 | 5 | – | 0,5 | 6,4 | 29,1 | 58 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0006 | 6 | – | 0,5 | 6,9 | 34,8 | 68 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0007 | 7 | – | 0,5 | 6,9 | 39,3 | 72 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0008 | 8 | – | 0,5 | 7,6 | 44 | 84 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0009 | 9 | – | 0,5 | 8,8 | 51 | 99 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0010 | 10 | – | 0,5 | 8,8 | 55,4 | 103 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0012 | 12 | – | 0,5 | 9,2 | 64,7 | 118 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0014 | 14 | – | 0,5 | 9,7 | 73,8 | 134 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0016 | 16 | – | 0,5 | 11 | 83,3 | 149 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0018 | 18 | – | 0,5 | 11 | 92,5 | 168 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0019 | 19 | – | 0,5 | 11 | 96,9 | 172 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0020 | 20 | – | 0,5 | 12 | 102,5 | 185 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0021 | 21 | – | 0,5 | 12 | 106,9 | 187 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0024 | 24 | – | 0,5 | 13 | 123,5 | 220 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0025 | 25 | – | 0,5 | 13 | 127,9 | 230 | 100/500/1000 |
| 3.522.3.1.3.0050.0.0027 | 27 | – | 0,5 | 13 | 136,8 | 238 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.3.1.3.0075.0.0002 | 2 | – | 0,75 | 5,6 | 20,1 | 41 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0003 | 3 | – | 0,75 | 6 | 26,8 | 50 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0004 | 4 | – | 0,75 | 6,5 | 33,6 | 62 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0005 | 5 | – | 0,75 | 7,2 | 41,4 | 77 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0006 | 6 | – | 0,75 | 7,7 | 48,6 | 89 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0007 | 7 | – | 0,75 | 7,7 | 55,2 | 95 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0008 | 8 | – | 0,75 | 8,5 | 62,8 | 113 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0009 | 9 | – | 0,75 | 9,8 | 70,6 | 128 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0010 | 10 | – | 0,75 | 9,8 | 77,7 | 134 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0012 | 12 | – | 0,75 | 11 | 91,6 | 155 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0014 | 14 | – | 0,75 | 11 | 105,7 | 177 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0016 | 16 | – | 0,75 | 12 | 120,1 | 197 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0018 | 18 | – | 0,75 | 13 | 136,1 | 225 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0019 | 19 | – | 0,75 | 13 | 142,8 | 230 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0020 | 20 | – | 0,75 | 13 | 150,8 | 248 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0021 | 21 | – | 0,75 | 13 | 157,4 | 251 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0024 | 24 | – | 0,75 | 14 | 177,8 | 286 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0025 | 25 | – | 0,75 | 14 | 184,4 | 300 | 100/500/1000 |
| 3.522.3.1.3.0075.0.0027 | 27 | – | 0,75 | 15 | 197,8 | 316 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.3.1.3.0100.0.0002 | 2 | – | 1 | 6 | 23,5 | 47 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0003 | 3 | – | 1 | 6,4 | 32 | 58 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0004 | 4 | – | 1 | 7 | 41,4 | 73 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0005 | 5 | – | 1 | 7,7 | 50 | 89 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0006 | 6 | – | 1 | 8,3 | 59,8 | 105 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0007 | 7 | – | 1 | 8,3 | 68,1 | 112 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0008 | 8 | – | 1 | 9,2 | 77,6 | 134 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0009 | 9 | – | 1 | 11 | 86,7 | 152 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0010 | 10 | – | 1 | 11 | 95 | 159 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0012 | 12 | – | 1 | 12 | 112,4 | 184 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0014 | 14 | – | 1 | 12 | 132,6 | 213 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0016 | 16 | – | 1 | 13 | 150,7 | 238 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0018 | 18 | – | 1 | 13 | 166,6 | 267 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0019 | 19 | – | 1 | 13 | 174,9 | 273 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0020 | 20 | – | 1 | 14 | 183,5 | 293 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0021 | 21 | – | 1 | 14 | 191,8 | 298 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0024 | 24 | – | 1 | 16 | 219,3 | 342 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0025 | 25 | – | 1 | 16 | 227,6 | 359 | 100/500/1000 |
| 3.522.3.1.3.0100.0.0027 | 27 | – | 1 | 16 | 244,5 | 374 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.3.1.3.0150.0.0002 | 2 | – | 1,5 | 6,5 | 34,1 | 60 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0003 | 3 | – | 1,5 | 6,9 | 47 | 76 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0004 | 4 | – | 1,5 | 7,6 | 60,2 | 95 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0005 | 5 | – | 1,5 | 8,4 | 74,7 | 117 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0006 | 6 | – | 1,5 | 9 | 88,8 | 138 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0007 | 7 | – | 1,5 | 9 | 101,7 | 148 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0008 | 8 | – | 1,5 | 10 | 115,2 | 176 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0009 | 9 | – | 1,5 | 12 | 129,4 | 200 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0010 | 10 | – | 1,5 | 12 | 142,3 | 210 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0012 | 12 | – | 1,5 | 13 | 171,8 | 247 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0014 | 14 | – | 1,5 | 13 | 199,1 | 283 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0016 | 16 | – | 1,5 | 14 | 224,2 | 315 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0018 | 18 | – | 1,5 | 15 | 251,1 | 356 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0019 | 19 | – | 1,5 | 15 | 264,1 | 367 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0020 | 20 | – | 1,5 | 15 | 278,5 | 394 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0021 | 21 | – | 1,5 | 15 | 291,4 | 401 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0024 | 24 | – | 1,5 | 17 | 331,1 | 462 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0025 | 25 | – | 1,5 | 17 | 344,1 | 485 | 100/500/1000 |
| 3.522.3.1.3.0150.0.0027 | 27 | – | 1,5 | 17 | 370,1 | 508 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.3.1.3.0250.0.0002 | 2 | – | 2,5 | 7,8 | 52,8 | 85 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0003 | 3 | – | 2,5 | 8,3 | 74,7 | 111 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0004 | 4 | – | 2,5 | 9,3 | 97,4 | 143 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0005 | 5 | – | 2,5 | 11 | 120,3 | 181 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0006 | 6 | – | 2,5 | 12 | 145,9 | 218 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0007 | 7 | – | 2,5 | 12 | 167,4 | 235 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0008 | 8 | – | 2,5 | 13 | 190,4 | 278 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0009 | 9 | – | 2,5 | 15 | 212,6 | 317 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0010 | 10 | – | 2,5 | 15 | 234,1 | 334 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0012 | 12 | – | 2,5 | 16 | 277,5 | 389 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0014 | 14 | – | 2,5 | 16 | 322,2 | 447 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0016 | 16 | – | 2,5 | 17 | 365,8 | 501 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0018 | 18 | – | 2,5 | 18 | 411,3 | 568 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0019 | 19 | – | 2,5 | 18 | 432,8 | 585 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0020 | 20 | – | 2,5 | 19 | 455,5 | 629 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0021 | 21 | – | 2,5 | 19 | 477,1 | 641 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0024 | 24 | – | 2,5 | 21 | 548,4 | 738 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0025 | 25 | – | 2,5 | 21 | 569,9 | 776 | 100/500/1000 |
| 3.522.3.1.3.0250.0.0027 | 27 | – | 2,5 | 22 | 616,9 | 817 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
