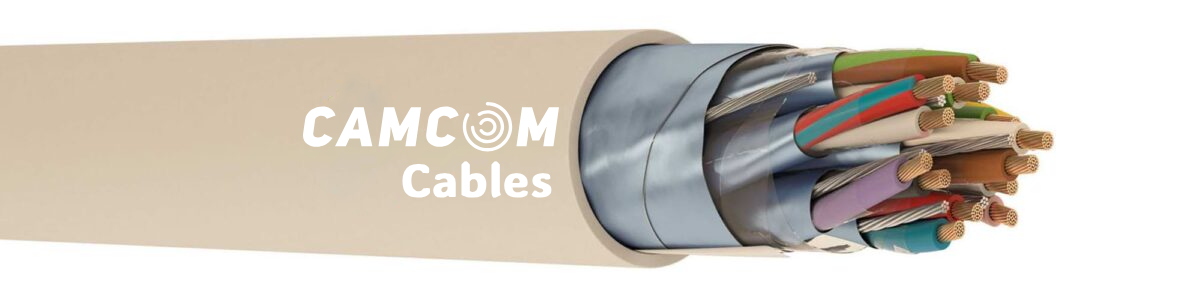

LI2Y(St)Y-PiMF/TiMF Signal Control Cable
Product Code: LI2Y(St)Y-PiMF/TiMF
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100) |
| 3 – Stranding | : | Screened pairs or triads are stranded in layers. |
| 4 – Individual Wrapping | : | Polyester tape |
| 5 – Individual Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Wrapping | : | Polyester tape |
| 7 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 8 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating Voltage V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 5000 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 5000 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 5000 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 5000 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 5000 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 5000 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 5000 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 5000 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0022.0.0002 | – | 2 | 0,22 | 7 | 15,1 | 41 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0003 | – | 3 | 0,22 | 7,5 | 21,6 | 53 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0004 | – | 4 | 0,22 | 8,4 | 28 | 69 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0005 | – | 5 | 0,22 | 9,2 | 34,5 | 81 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0006 | – | 6 | 0,22 | 11 | 40,9 | 95 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0007 | – | 7 | 0,22 | 11 | 47,4 | 107 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0008 | – | 8 | 0,22 | 11 | 53,8 | 119 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0009 | – | 9 | 0,22 | 13 | 60,3 | 136 | 100/500/1000 |
| 3.551.2.1.2.0022.0.0010 | – | 10 | 0,22 | 13 | 66,7 | 148 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0025.0.0002 | – | 2 | 0,25 | 7,4 | 16,2 | 44 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0003 | – | 3 | 0,25 | 7,9 | 23,2 | 57 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0004 | – | 4 | 0,25 | 8,8 | 30,2 | 74 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0005 | – | 5 | 0,25 | 9,7 | 37,1 | 87 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0006 | – | 6 | 0,25 | 11 | 44,1 | 103 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0007 | – | 7 | 0,25 | 11 | 51,1 | 115 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0008 | – | 8 | 0,25 | 12 | 58,1 | 129 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0009 | – | 9 | 0,25 | 14 | 65,1 | 148 | 100/500/1000 |
| 3.551.2.1.2.0025.0.0010 | – | 10 | 0,25 | 14 | 72,1 | 162 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0034.0.0002 | – | 2 | 0,34 | 8,2 | 19,9 | 54 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0003 | – | 3 | 0,34 | 8,8 | 28,8 | 70 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0004 | – | 4 | 0,34 | 9,7 | 37,7 | 88 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0005 | – | 5 | 0,34 | 11 | 46,5 | 107 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0006 | – | 6 | 0,34 | 12 | 55,4 | 124 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0007 | – | 7 | 0,34 | 12 | 64,3 | 139 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0008 | – | 8 | 0,34 | 13 | 73,1 | 156 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0009 | – | 9 | 0,34 | 16 | 82 | 182 | 100/500/1000 |
| 3.551.2.1.2.0034.0.0010 | – | 10 | 0,34 | 16 | 90,9 | 198 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0050.0.0002 | – | 2 | 0,5 | 9,5 | 32,3 | 74 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0003 | – | 3 | 0,5 | 11 | 46 | 97 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0004 | – | 4 | 0,5 | 12 | 59,7 | 124 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0005 | – | 5 | 0,5 | 13 | 73,5 | 146 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0006 | – | 6 | 0,5 | 14 | 87,2 | 173 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0007 | – | 7 | 0,5 | 14 | 100,9 | 194 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0008 | – | 8 | 0,5 | 15 | 114,6 | 218 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0009 | – | 9 | 0,5 | 18 | 128,3 | 253 | 100/500/1000 |
| 3.551.2.1.2.0050.0.0010 | – | 10 | 0,5 | 18 | 142,1 | 271 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0075.0.0002 | – | 2 | 0,75 | 11 | 41,2 | 90 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0003 | – | 3 | 0,75 | 12 | 59,3 | 118 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0004 | – | 4 | 0,75 | 13 | 77,4 | 153 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0005 | – | 5 | 0,75 | 14 | 95,6 | 182 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0006 | – | 6 | 0,75 | 15 | 113,7 | 214 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0007 | – | 7 | 0,75 | 15 | 131,9 | 241 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0008 | – | 8 | 0,75 | 17 | 150 | 270 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0009 | – | 9 | 0,75 | 20 | 168,2 | 314 | 100/500/1000 |
| 3.551.2.1.2.0075.0.0010 | – | 10 | 0,75 | 20 | 186,3 | 336 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0100.0.0002 | – | 2 | 1 | 12 | 47,8 | 103 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0003 | – | 3 | 1 | 12 | 69,3 | 136 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0004 | – | 4 | 1 | 14 | 90,7 | 174 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0005 | – | 5 | 1 | 15 | 112,2 | 207 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0006 | – | 6 | 1 | 16 | 133,6 | 245 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0007 | – | 7 | 1 | 16 | 155,1 | 275 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0008 | – | 8 | 1 | 18 | 176,5 | 310 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0009 | – | 9 | 1 | 21 | 198 | 354 | 100/500/1000 |
| 3.551.2.1.2.0100.0.0010 | – | 10 | 1 | 21 | 219,5 | 386 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0150.0.0002 | – | 2 | 1,5 | 12 | 66,3 | 127 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0003 | – | 3 | 1,5 | 13 | 97 | 169 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0004 | – | 4 | 1,5 | 15 | 127,7 | 218 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0005 | – | 5 | 1,5 | 16 | 158,5 | 261 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0006 | – | 6 | 1,5 | 18 | 189,2 | 309 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0007 | – | 7 | 1,5 | 18 | 219,9 | 349 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0008 | – | 8 | 1,5 | 19 | 250,6 | 393 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0009 | – | 9 | 1,5 | 23 | 281,3 | 454 | 100/500/1000 |
| 3.551.2.1.2.0150.0.0010 | – | 10 | 1,5 | 23 | 312 | 489 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.551.2.1.2.0250.0.0002 | – | 2 | 2,5 | 15 | 100,8 | 186 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0003 | – | 3 | 2,5 | 16 | 148,7 | 251 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0004 | – | 4 | 2,5 | 18 | 196,7 | 324 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0005 | – | 5 | 2,5 | 20 | 244,6 | 390 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0006 | – | 6 | 2,5 | 22 | 292,6 | 462 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0007 | – | 7 | 2,5 | 22 | 340,5 | 523 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0008 | – | 8 | 2,5 | 24 | 388,4 | 591 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0009 | – | 9 | 2,5 | 28 | 503,8 | 744 | 100/500/1000 |
| 3.551.2.1.2.0250.0.0010 | – | 10 | 2,5 | 28 | 484,3 | 736 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
