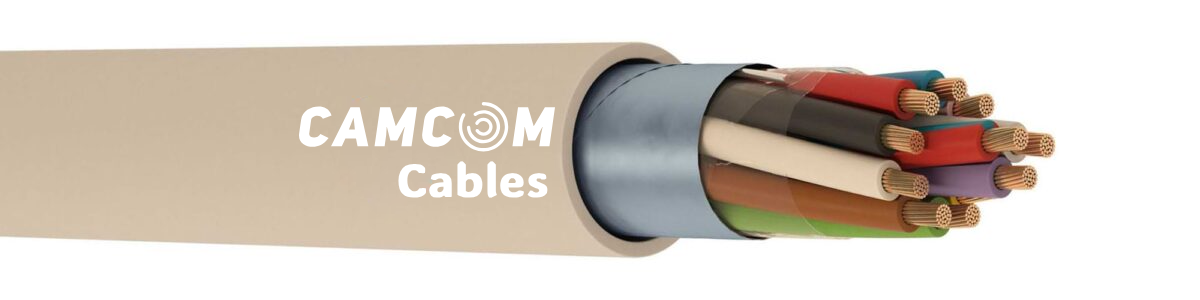

LI2Y(St)Y Signal Control Cable
Product Code: LI2Y(St)Y
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100) |
| 3 – Stranding | : | In layers |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating Voltage V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 5000 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 5000 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 5000 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 5000 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 5000 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 5000 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 5000 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 5000 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0022.0.0002 | 2 | – | 0,22 | 4 | 6,5 | 19 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0003 | 3 | – | 0,22 | 4,2 | 8,6 | 22 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0004 | 4 | – | 0,22 | 4,5 | 10,8 | 26 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0005 | 5 | – | 0,22 | 5 | 12,9 | 31 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0006 | 6 | – | 0,22 | 5,3 | 15 | 35 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0007 | 7 | – | 0,22 | 5,3 | 17,1 | 38 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0008 | 8 | – | 0,22 | 5,8 | 19,3 | 43 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0009 | 9 | – | 0,22 | 6,3 | 21,4 | 49 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0010 | 10 | – | 0,22 | 6,7 | 23,5 | 54 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0012 | 12 | – | 0,22 | 6,9 | 27,8 | 60 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0014 | 14 | – | 0,22 | 7,3 | 32,1 | 69 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0016 | 16 | – | 0,22 | 7,8 | 36,3 | 78 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0018 | 18 | – | 0,22 | 8,1 | 40,6 | 85 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0019 | 19 | – | 0,22 | 8,1 | 42,7 | 88 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0020 | 20 | – | 0,22 | 8,6 | 44,9 | 95 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0021 | 21 | – | 0,22 | 8,6 | 47 | 98 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0024 | 24 | – | 0,22 | 9,5 | 53,4 | 112 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0025 | 25 | – | 0,22 | 9,5 | 55,5 | 115 | 100/500/1000 |
| 3.540.3.1.2.0022.0.0027 | 27 | – | 0,22 | 9,7 | 59,8 | 122 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0025.0.0002 | 2 | – | 0,25 | 4,2 | 7 | 20 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0003 | 3 | – | 0,25 | 4,4 | 9,4 | 24 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0004 | 4 | – | 0,25 | 4,8 | 11,8 | 28 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0005 | 5 | – | 0,25 | 5,3 | 14,2 | 34 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0006 | 6 | – | 0,25 | 5,6 | 16,6 | 39 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0007 | 7 | – | 0,25 | 5,3 | 19 | 39 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0008 | 8 | – | 0,25 | 6,1 | 21,4 | 48 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0009 | 9 | – | 0,25 | 6,6 | 23,8 | 54 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0010 | 10 | – | 0,25 | 7,1 | 26,2 | 60 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0012 | 12 | – | 0,25 | 7,3 | 31 | 67 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0014 | 14 | – | 0,25 | 7,8 | 35,8 | 77 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0016 | 16 | – | 0,25 | 8,3 | 40,6 | 87 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0018 | 18 | – | 0,25 | 8,6 | 45,4 | 95 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0019 | 19 | – | 0,25 | 8,6 | 47,8 | 98 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0020 | 20 | – | 0,25 | 9,1 | 50,2 | 106 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0021 | 21 | – | 0,25 | 9,1 | 52,6 | 108 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0024 | 24 | – | 0,25 | 11 | 59,8 | 125 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0025 | 25 | – | 0,25 | 11 | 62,2 | 129 | 100/500/1000 |
| 3.540.3.1.2.0025.0.0027 | 27 | – | 0,25 | 11 | 67 | 136 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0034.0.0002 | 2 | – | 0,34 | 4,8 | 8,9 | 26 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0003 | 3 | – | 0,34 | 5,1 | 12,2 | 31 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0004 | 4 | – | 0,34 | 5,5 | 15,6 | 37 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0005 | 5 | – | 0,34 | 6 | 18,9 | 45 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0006 | 6 | – | 0,34 | 6,4 | 22,2 | 51 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0007 | 7 | – | 0,34 | 6,4 | 25,6 | 55 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0008 | 8 | – | 0,34 | 7 | 28,9 | 63 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0009 | 9 | – | 0,34 | 8 | 32,2 | 72 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0010 | 10 | – | 0,34 | 8,1 | 35,5 | 79 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0012 | 12 | – | 0,34 | 8,4 | 42,2 | 89 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0014 | 14 | – | 0,34 | 8,9 | 48,9 | 101 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0016 | 16 | – | 0,34 | 9,3 | 55,5 | 112 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0018 | 18 | – | 0,34 | 9,8 | 62,2 | 126 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0019 | 19 | – | 0,34 | 9,8 | 65,5 | 130 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0020 | 20 | – | 0,34 | 11 | 68,9 | 140 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0021 | 21 | – | 0,34 | 11 | 72,2 | 144 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0024 | 24 | – | 0,34 | 12 | 82,2 | 169 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0025 | 25 | – | 0,34 | 12 | 85,5 | 173 | 100/500/1000 |
| 3.540.3.1.2.0034.0.0027 | 27 | – | 0,34 | 12 | 92,2 | 183 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0050.0.0002 | 2 | – | 0,5 | 5,3 | 11 | 31 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0003 | 3 | – | 0,5 | 5,6 | 15,4 | 38 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0004 | 4 | – | 0,5 | 6 | 19,8 | 46 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0005 | 5 | – | 0,5 | 6,5 | 24,2 | 55 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0006 | 6 | – | 0,5 | 7,1 | 28,6 | 65 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0007 | 7 | – | 0,5 | 7,1 | 33 | 69 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0008 | 8 | – | 0,5 | 7,9 | 37,4 | 83 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0009 | 9 | – | 0,5 | 8,9 | 41,8 | 94 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0010 | 10 | – | 0,5 | 9 | 46,2 | 98 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0012 | 12 | – | 0,5 | 9,4 | 55 | 113 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0014 | 14 | – | 0,5 | 9,9 | 63,8 | 130 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0016 | 16 | – | 0,5 | 11 | 72,6 | 144 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0018 | 18 | – | 0,5 | 11 | 81,4 | 161 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0019 | 19 | – | 0,5 | 11 | 85,8 | 164 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0020 | 20 | – | 0,5 | 12 | 90,2 | 180 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0021 | 21 | – | 0,5 | 12 | 94,6 | 182 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0024 | 24 | – | 0,5 | 13 | 107,8 | 205 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0025 | 25 | – | 0,5 | 13 | 112,2 | 222 | 100/500/1000 |
| 3.540.3.1.2.0050.0.0027 | 27 | – | 0,5 | 14 | 121 | 231 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0075.0.0002 | 2 | – | 0,75 | 6 | 17,7 | 42 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0003 | 3 | – | 0,75 | 6,3 | 24,3 | 51 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0004 | 4 | – | 0,75 | 6,9 | 30,9 | 63 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0005 | 5 | – | 0,75 | 7,5 | 37,5 | 77 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0006 | 6 | – | 0,75 | 8,1 | 44,1 | 89 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0007 | 7 | – | 0,75 | 8,1 | 50,7 | 95 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0008 | 8 | – | 0,75 | 8,9 | 57,3 | 113 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0009 | 9 | – | 0,75 | 11 | 63,9 | 128 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0010 | 10 | – | 0,75 | 11 | 70,5 | 133 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0012 | 12 | – | 0,75 | 11 | 83,7 | 154 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0014 | 14 | – | 0,75 | 12 | 96,9 | 175 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0016 | 16 | – | 0,75 | 12 | 110,1 | 195 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0018 | 18 | – | 0,75 | 13 | 123,3 | 220 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0019 | 19 | – | 0,75 | 13 | 129,9 | 226 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0020 | 20 | – | 0,75 | 13 | 136,5 | 242 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0021 | 21 | – | 0,75 | 13 | 143,1 | 246 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0024 | 24 | – | 0,75 | 15 | 162,9 | 285 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0025 | 25 | – | 0,75 | 15 | 169,5 | 299 | 100/500/1000 |
| 3.540.3.1.2.0075.0.0027 | 27 | – | 0,75 | 15 | 182,7 | 311 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0100.0.0002 | 2 | – | 1 | 6,4 | 21 | 47 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0003 | 3 | – | 1 | 6,7 | 29,3 | 59 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0004 | 4 | – | 1 | 7,3 | 37,5 | 73 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0005 | 5 | – | 1 | 8 | 45,7 | 90 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0006 | 6 | – | 1 | 8,7 | 54 | 104 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0007 | 7 | – | 1 | 8,7 | 62,2 | 111 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0008 | 8 | – | 1 | 9,5 | 70,5 | 132 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0009 | 9 | – | 1 | 11 | 78,7 | 150 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0010 | 10 | – | 1 | 11 | 87 | 157 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0012 | 12 | – | 1 | 12 | 103,5 | 182 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0014 | 14 | – | 1 | 12 | 120 | 208 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0016 | 16 | – | 1 | 13 | 136,5 | 232 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0018 | 18 | – | 1 | 14 | 153 | 262 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0019 | 19 | – | 1 | 14 | 161,3 | 269 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0020 | 20 | – | 1 | 15 | 169,5 | 289 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0021 | 21 | – | 1 | 15 | 177,8 | 293 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0024 | 24 | – | 1 | 16 | 202,5 | 336 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0025 | 25 | – | 1 | 16 | 210,8 | 353 | 100/500/1000 |
| 3.540.3.1.2.0100.0.0027 | 27 | – | 1 | 16 | 227,3 | 368 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0150.0.0002 | 2 | – | 1,5 | 6,9 | 30,2 | 60 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0003 | 3 | – | 1,5 | 7,2 | 43,1 | 76 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0004 | 4 | – | 1,5 | 7,9 | 55,9 | 95 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0005 | 5 | – | 1,5 | 8,7 | 68,8 | 117 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0006 | 6 | – | 1,5 | 9,4 | 81,6 | 137 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0007 | 7 | – | 1,5 | 9,4 | 94,5 | 147 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0008 | 8 | – | 1,5 | 11 | 107,3 | 174 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0009 | 9 | – | 1,5 | 12 | 120,2 | 198 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0010 | 10 | – | 1,5 | 12 | 133,1 | 208 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0012 | 12 | – | 1,5 | 13 | 158,8 | 242 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0014 | 14 | – | 1,5 | 13 | 184,5 | 278 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0016 | 16 | – | 1,5 | 14 | 210,2 | 311 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0018 | 18 | – | 1,5 | 15 | 235,9 | 352 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0019 | 19 | – | 1,5 | 15 | 248,8 | 362 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0020 | 20 | – | 1,5 | 16 | 261,7 | 388 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0021 | 21 | – | 1,5 | 16 | 274,5 | 396 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0024 | 24 | – | 1,5 | 17 | 313,1 | 457 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0025 | 25 | – | 1,5 | 17 | 326 | 480 | 100/500/1000 |
| 3.540.3.1.2.0150.0.0027 | 27 | – | 1,5 | 18 | 351,7 | 503 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.540.3.1.2.0250.0.0002 | 2 | – | 2,5 | 8,3 | 47,4 | 86 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0003 | 3 | – | 2,5 | 8,8 | 68,8 | 112 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0004 | 4 | – | 2,5 | 9,6 | 90,2 | 142 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0005 | 5 | – | 2,5 | 11 | 111,6 | 177 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0006 | 6 | – | 2,5 | 12 | 133,1 | 209 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0007 | 7 | – | 2,5 | 12 | 154,5 | 227 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0008 | 8 | – | 2,5 | 13 | 175,9 | 269 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0009 | 9 | – | 2,5 | 15 | 197,4 | 305 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0010 | 10 | – | 2,5 | 15 | 218,8 | 322 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0012 | 12 | – | 2,5 | 16 | 261,7 | 377 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0014 | 14 | – | 2,5 | 17 | 304,5 | 434 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0016 | 16 | – | 2,5 | 17 | 347,4 | 488 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0018 | 18 | – | 2,5 | 18 | 390,2 | 553 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0019 | 19 | – | 2,5 | 18 | 411,7 | 570 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0020 | 20 | – | 2,5 | 19 | 433,1 | 613 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0021 | 21 | – | 2,5 | 19 | 454,5 | 625 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0024 | 24 | – | 2,5 | 22 | 518,8 | 721 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0025 | 25 | – | 2,5 | 22 | 540,3 | 759 | 100/500/1000 |
| 3.540.3.1.2.0250.0.0027 | 27 | – | 2,5 | 22 | 583,1 | 797 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
