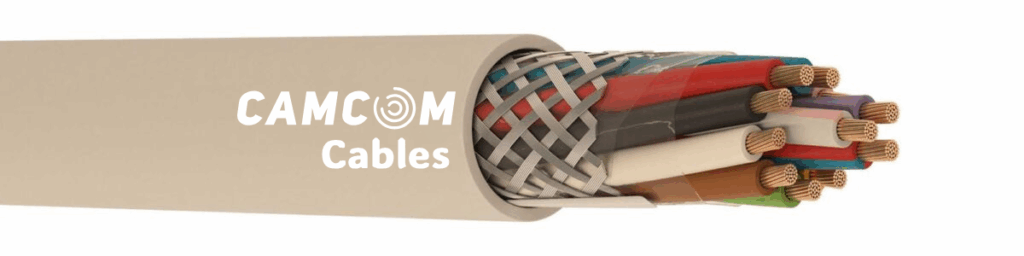

LIHCH Signal Control Cable
Product Code: LIHCH
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100) |
| 3 – Stranding | : | In layers |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 200 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 200 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 200 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 20 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 150 | 300/500 | 2000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|
| IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 |
IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 |
IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 |
IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 |
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.532.2.3.3.0022.0.0002 | 2 | – | 0,22 | 3,7 | 9,7 | 20 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0003 | 3 | – | 0,22 | 3,9 | 11,8 | 24 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0004 | 4 | – | 0,22 | 4,2 | 15,2 | 29 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0005 | 5 | – | 0,22 | 4,7 | 17,5 | 35 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0006 | 6 | – | 0,22 | 5,1 | 20,9 | 41 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0007 | 7 | – | 0,22 | 5,1 | 23 | 44 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0008 | 8 | – | 0,22 | 5,7 | 25,5 | 51 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0009 | 9 | – | 0,22 | 6 | 28,7 | 57 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0010 | 10 | – | 0,22 | 6,5 | 30,8 | 61 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0012 | 12 | – | 0,22 | 6,8 | 35,9 | 71 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0014 | 14 | – | 0,22 | 7,2 | 40,8 | 81 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0016 | 16 | – | 0,22 | 7,5 | 45,8 | 89 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0018 | 18 | – | 0,22 | 7,9 | 51,3 | 98 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0019 | 19 | – | 0,22 | 8 | 53,4 | 103 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0020 | 20 | – | 0,22 | 8,4 | 55,8 | 108 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0021 | 21 | – | 0,22 | 8,4 | 57,9 | 111 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0024 | 24 | – | 0,22 | 9,3 | 68,8 | 131 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0025 | 25 | – | 0,22 | 9,3 | 71 | 134 | 100/500/1000 |
| 3.532.2.3.3.0022.0.0027 | 27 | – | 0,22 | 9,7 | 76,4 | 147 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.532.2.3.3.0025.0.0002 | 2 | – | 0,25 | 4,1 | 11,5 | 24 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0003 | 3 | – | 0,25 | 4,3 | 13,9 | 29 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0004 | 4 | – | 0,25 | 4,6 | 16,3 | 33 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0005 | 5 | – | 0,25 | 5,1 | 20,1 | 41 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0006 | 6 | – | 0,25 | 5,5 | 23 | 46 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0007 | 7 | – | 0,25 | 5,5 | 24,9 | 49 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0008 | 8 | – | 0,25 | 6,1 | 28,7 | 59 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0009 | 9 | – | 0,25 | 6,5 | 31,3 | 64 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0010 | 10 | – | 0,25 | 7 | 34 | 70 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0012 | 12 | – | 0,25 | 7,3 | 39,7 | 80 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0014 | 14 | – | 0,25 | 7,7 | 45,8 | 91 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0016 | 16 | – | 0,25 | 8,1 | 51,4 | 101 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0018 | 18 | – | 0,25 | 8,5 | 59,2 | 113 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0019 | 19 | – | 0,25 | 8,5 | 61,6 | 116 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0020 | 20 | – | 0,25 | 9 | 65,5 | 125 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0021 | 21 | – | 0,25 | 9 | 67,9 | 129 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0024 | 24 | – | 0,25 | 9,9 | 76,7 | 146 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0025 | 25 | – | 0,25 | 9,9 | 79,1 | 149 | 100/500/1000 |
| 3.532.2.3.3.0025.0.0027 | 27 | – | 0,25 | 10,2 | 84,2 | 160 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.532.2.3.3.0034.0.0002 | 2 | – | 0,34 | 4,5 | 13,4 | 29 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0003 | 3 | – | 0,34 | 4,7 | 16,7 | 34 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0004 | 4 | – | 0,34 | 5,1 | 21,4 | 41 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0005 | 5 | – | 0,34 | 5,6 | 25 | 49 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0006 | 6 | – | 0,34 | 6,1 | 29,7 | 57 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0007 | 7 | – | 0,34 | 6,1 | 33 | 62 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0008 | 8 | – | 0,34 | 6,7 | 37 | 70 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0009 | 9 | – | 0,34 | 7,7 | 40,9 | 80 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0010 | 10 | – | 0,34 | 7,8 | 45 | 87 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0012 | 12 | – | 0,34 | 8 | 53 | 99 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0014 | 14 | – | 0,34 | 8,5 | 62,7 | 115 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0016 | 16 | – | 0,34 | 9 | 71 | 128 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0018 | 18 | – | 0,34 | 9,5 | 79 | 143 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0019 | 19 | – | 0,34 | 9,6 | 82,3 | 151 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0020 | 20 | – | 0,34 | 10,1 | 86 | 158 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0021 | 21 | – | 0,34 | 10,1 | 89,3 | 163 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0024 | 24 | – | 0,34 | 11,3 | 101,7 | 190 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0025 | 25 | – | 0,34 | 11,3 | 105 | 195 | 100/500/1000 |
| 3.532.2.3.3.0034.0.0027 | 27 | – | 0,34 | 11,6 | 116 | 210 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.532.2.3.3.0050.0.0002 | 2 | – | 0,5 | 5,1 | 16,9 | 37 | 100/500/1000 |
| 3.532.2.3.3.0050.0.0003 | 3 | – | 0,5 | 5,4 | 21,3 | 44 | 100/500/1000 |
| 3.532.2.3.3.0050.0.0004 | 4 | – | 0,5 | 5,8 | 26 | 52 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0005 | 5 | – | 0,5 | 6,4 | 31,5 | 63 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0006 | 6 | – | 0,5 | 6,9 | 37,6 | 75 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0007 | 7 | – | 0,5 | 6,9 | 42 | 79 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0008 | 8 | – | 0,5 | 7,6 | 46,9 | 94 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0009 | 9 | – | 0,5 | 8,8 | 51,9 | 107 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0010 | 10 | – | 0,5 | 8,8 | 57,1 | 111 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0012 | 12 | – | 0,5 | 9,2 | 69,5 | 130 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0014 | 14 | – | 0,5 | 9,7 | 80,5 | 149 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0016 | 16 | – | 0,5 | 10,2 | 89,7 | 165 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0018 | 18 | – | 0,5 | 10,8 | 96,1 | 183 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0019 | 19 | – | 0,5 | 10,8 | 100,5 | 187 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0020 | 20 | – | 0,5 | 11,4 | 106,3 | 202 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0021 | 21 | – | 0,5 | 11,4 | 110,7 | 203 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0024 | 24 | – | 0,5 | 12,7 | 125,3 | 236 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0025 | 25 | – | 0,5 | 12,7 | 129,7 | 248 | 100/500/1000 |
| 3.532.3.3.3.0050.0.0027 | 27 | – | 0,5 | 12,9 | 139,9 | 258 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.532.2.3.3.0075.0.0002 | 2 | – | 0,75 | 5,5 | 21,6 | 43 | 100/500/1000 |
| 3.532.2.3.3.0075.0.0003 | 3 | – | 0,75 | 5,8 | 28,2 | 53 | 100/500/1000 |
| 3.532.2.3.3.0075.0.0004 | 4 | – | 0,75 | 6,3 | 35,9 | 65 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0005 | 5 | – | 0,75 | 6,9 | 43,4 | 80 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0006 | 6 | – | 0,75 | 7,5 | 51,9 | 94 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0007 | 7 | – | 0,75 | 7,5 | 58,5 | 99 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0008 | 8 | – | 0,75 | 8,3 | 65,9 | 119 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0009 | 9 | – | 0,75 | 9,6 | 76,1 | 137 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0010 | 10 | – | 0,75 | 9,6 | 83,7 | 143 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0012 | 12 | – | 0,75 | 10 | 98,3 | 166 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0014 | 14 | – | 0,75 | 10,6 | 109,3 | 186 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0016 | 16 | – | 0,75 | 11,1 | 123,9 | 207 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0018 | 18 | – | 0,75 | 11,8 | 138,3 | 235 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0019 | 19 | – | 0,75 | 11,8 | 144,9 | 240 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0020 | 20 | – | 0,75 | 12,5 | 156,9 | 263 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0021 | 21 | – | 0,75 | 12,5 | 163,5 | 266 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0024 | 24 | – | 0,75 | 13,9 | 185 | 307 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0025 | 25 | – | 0,75 | 13,9 | 191,6 | 323 | 100/500/1000 |
| 3.532.3.3.3.0075.0.0027 | 27 | – | 0,75 | 14,2 | 206,6 | 337 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.532.2.3.3.0100.0.0002 | 2 | – | 1 | 5,9 | 26 | 50 | 100/500/1000 |
| 3.532.2.3.3.0100.0.0003 | 3 | – | 1 | 6,2 | 34,2 | 62 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0004 | 4 | – | 1 | 6,6 | 43,3 | 75 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0005 | 5 | – | 1 | 7,5 | 52,2 | 94 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0006 | 6 | – | 1 | 8,2 | 66,1 | 116 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0007 | 7 | – | 1 | 8,2 | 74,4 | 122 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0008 | 8 | – | 1 | 9,1 | 83,6 | 146 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0009 | 9 | – | 1 | 10,5 | 91 | 162 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0010 | 10 | – | 1 | 10,5 | 99,3 | 169 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0012 | 12 | – | 1 | 10,9 | 116,5 | 195 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0014 | 14 | – | 1 | 11,6 | 134 | 223 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0016 | 16 | – | 1 | 12,2 | 151,8 | 249 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0018 | 18 | – | 1 | 12,9 | 173,6 | 287 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0019 | 19 | – | 1 | 12,9 | 181,8 | 293 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0020 | 20 | – | 1 | 13,6 | 191,6 | 316 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0021 | 21 | – | 1 | 13,6 | 199,8 | 320 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0024 | 24 | – | 1 | 15,1 | 227 | 366 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0025 | 25 | – | 1 | 15,1 | 235,3 | 386 | 100/500/1000 |
| 3.532.3.3.3.0100.0.0027 | 27 | – | 1 | 15,4 | 254,2 | 403 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.532.2.3.3.0150.0.0002 | 2 | – | 1,5 | 6,6 | 35,7 | 64 | 100/500/1000 |
| 3.532.2.3.3.0150.0.0003 | 3 | – | 1,5 | 7 | 48,5 | 81 | 100/500/1000 |
| 3.532.2.3.3.0150.0.0004 | 4 | – | 1,5 | 7,7 | 62,7 | 102 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0005 | 5 | – | 1,5 | 8,4 | 76,6 | 126 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0006 | 6 | – | 1,5 | 9,2 | 94,8 | 153 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0007 | 7 | – | 1,5 | 9,2 | 107,7 | 163 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0008 | 8 | – | 1,5 | 10,1 | 119,6 | 187 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0009 | 9 | – | 1,5 | 11,7 | 132,6 | 214 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0010 | 10 | – | 1,5 | 11,8 | 146,8 | 228 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0012 | 12 | – | 1,5 | 12,3 | 173,7 | 265 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0014 | 14 | – | 1,5 | 13 | 204,9 | 309 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0016 | 16 | – | 1,5 | 13,7 | 232,1 | 345 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0018 | 18 | – | 1,5 | 14,5 | 259,8 | 391 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0019 | 19 | – | 1,5 | 14,5 | 272,7 | 402 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0020 | 20 | – | 1,5 | 15,3 | 286 | 432 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0021 | 21 | – | 1,5 | 15,3 | 298,9 | 438 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0024 | 24 | – | 1,5 | 17,1 | 340,8 | 506 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0025 | 25 | – | 1,5 | 17,1 | 353,7 | 533 | 100/500/1000 |
| 3.532.3.3.3.0150.0.0027 | 27 | – | 1,5 | 17,5 | 380 | 556 | 100/500/1000 |
| 3.532.2.3.3.0250.0.0002 | 2 | – | 2,5 | 7,8 | 58,8 | 94 | 100/500/1000 |
| 3.532.2.3.3.0250.0.0003 | 3 | – | 2,5 | 8,3 | 80,2 | 122 | 100/500/1000 |
| 3.532.2.3.3.0250.0.0004 | 4 | – | 2,5 | 9,3 | 103,4 | 156 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0005 | 5 | – | 2,5 | 10,3 | 123,9 | 194 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0006 | 6 | – | 2,5 | 11,2 | 148,1 | 231 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0007 | 7 | – | 2,5 | 11,2 | 169,5 | 247 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0008 | 8 | – | 2,5 | 12,3 | 192,4 | 295 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0009 | 9 | – | 2,5 | 14,5 | 219,2 | 340 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0010 | 10 | – | 2,5 | 14,5 | 242,5 | 359 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0012 | 12 | – | 2,5 | 15,1 | 285,9 | 417 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0014 | 14 | – | 2,5 | 16 | 332 | 480 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0016 | 16 | – | 2,5 | 16,8 | 378,5 | 539 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0018 | 18 | – | 2,5 | 17,8 | 422,7 | 610 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0019 | 19 | – | 2,5 | 17,8 | 444,1 | 627 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0020 | 20 | – | 2,5 | 18,8 | 466,7 | 675 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0021 | 21 | – | 2,5 | 18,8 | 488,2 | 686 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0024 | 24 | – | 2,5 | 21 | 562,1 | 790 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0025 | 25 | – | 2,5 | 21 | 583,5 | 833 | 100/500/1000 |
| 3.532.3.3.3.0250.0.0027 | 27 | – | 2,5 | 21,4 | 626,4 | 869 | 100/500/1000 |
| 3.532.2.3.3.0400.0.0002 | 2 | – | 4 | 8,9 | 86 | 136 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0003 | 3 | – | 4 | 9,5 | 120,3 | 169 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0004 | 4 | – | 4 | 10,8 | 156,1 | 226 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0005 | 5 | – | 4 | 11,8 | 190,8 | 276 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0006 | 6 | – | 4 | 12,8 | 232,3 | 330 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0007 | 7 | – | 4 | 12,8 | 266,6 | 357 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0008 | 8 | – | 4 | 14,1 | 303 | 423 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0009 | 9 | – | 4 | 16,5 | 339,9 | 478 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0010 | 10 | – | 4 | 16,5 | 375 | 505 | 100/500/1000 |
| 3.532.3.3.3.0400.0.0012 | 12 | – | 4 | 17,2 | 444,6 | 591 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0002 | 2 | – | 6 | 10,5 | 121,3 | 187 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0003 | 3 | – | 6 | 11,2 | 172,7 | 236 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0004 | 4 | – | 6 | 12,4 | 225,7 | 305 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0005 | 5 | – | 6 | 13,9 | 284 | 392 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0006 | 6 | – | 6 | 15,2 | 341,1 | 471 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0007 | 7 | – | 6 | 15,2 | 392,5 | 511 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0008 | 8 | – | 6 | 16,7 | 447,7 | 606 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0009 | 9 | – | 6 | 19,7 | 500,5 | 682 | 100/500/1000 |
| 3.532.3.3.3.0600.0.0010 | 10 | – | 6 | 19,7 | 553,2 | 724 | 100/500/1000 |
| 3.532.3.3.3.1000.0.0002 | 2 | – | 10 | 12,5 | 204,7 | 285 | 100/500/1000 |
| 3.532.3.3.3.1000.0.0003 | 3 | – | 10 | 13,4 | 293,7 | 357 | 100/500/1000 |
| 3.532.3.3.3.1000.0.0004 | 4 | – | 10 | 14,9 | 385,4 | 480 | 100/500/1000 |
| 3.532.3.3.3.1000.0.0005 | 5 | – | 10 | 16,6 | 478,2 | 609 | 100/500/1000 |
| 3.532.3.3.3.1000.0.0006 | 6 | – | 10 | 18,2 | 573,6 | 734 | 100/500/1000 |
| 3.532.3.3.3.1000.0.0007 | 7 | – | 10 | 18,2 | 662,6 | 803 | 100/500/1000 |
| 3.532.3.3.3.1600.0.0002 | 2 | – | 16 | 16,9 | 311,2 | 439 | 100/500/1000 |
| 3.532.3.3.3.1600.0.0003 | 3 | – | 16 | 18,1 | 451,4 | 605 | 100/500/1000 |
| 3.532.3.3.3.1600.0.0004 | 4 | – | 16 | 20,1 | 594 | 788 | 100/500/1000 |
| 3.532.3.3.3.1600.0.0005 | 5 | – | 16 | 22,1 | 738,5 | 989 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
