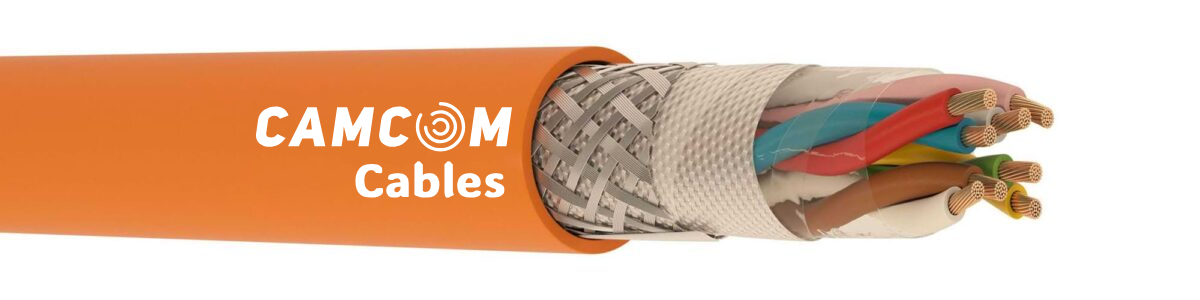

LIHCH-TP FE180 PH120 Fire Resistant Cable

Product Code: LIHCH-TP FE180 PH120

  • Cable Construction
  • Technical Data
  • Standards
  • Types
  • Mechanical Characteristics
1 – Conductor : Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : Cross-linked polymer compound in ceramic form (DIN 47100)
3 – Stranding : Insulations are stranded into pairs, four pairs are stranded together into groups, groups are stranded in layers.
4 – Wrapping : Polyester tape, glass yarn tape
5 – Screen : Tinned copper braiding
6 – Outer Jacket : UV resistant halogen-free outer jacket. RAL 2008 (Orange)
Conductor
Diameter		 Conductor Resistance
Ω/km
(20 °C)		 Insulation
Resistance
(@500V DC)
MΩ/km		 Mutual Capacitance

nF/km

 Operating
VoltageV DC		 Test Voltage

(@ 1 minute)
V DC
0.50 mm² 39.0 100 100 300 2000
0.75 mm² 26.0 100 100 300 2000
1.00 mm² 19.5 100 100 300 2000
1.50 mm² 13.3 100 100 300 2000
2.50 mm² 8.0 100 100 300 2000
Smoke Density Test Corrosive Gas Test Halogen-free Test Flame Propagation Test Flame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		 IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		 IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		 IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		 IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2



Circuit Integrity Test
(FE180)		 Circuit Integrity with Shock Test
(PH120)
IEC 60331-21 EN 50200,
VDE 0482-200,
BS EN 50200
Part Number Pair Count Conductor Diameter (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.518.2.4.3.0050.0.0002 2 0,5 7 28,3 68 100/500/1000
3.518.2.4.3.0050.0.0003 3 0,5 8,1 38,1 83 100/500/1000
3.518.2.4.3.0050.0.0004 4 0,5 9,9 51,4 113 100/500/1000
3.518.2.4.3.0050.0.0005 5 0,5 10,8 61,2 131 100/500/1000
3.518.2.4.3.0050.0.0006 6 0,5 11,8 69,7 152 100/500/1000
3.518.2.4.3.0050.0.0007 7 0,5 11,9 78,6 168 100/500/1000
3.518.2.4.3.0050.0.0008 8 0,5 12,8 89,4 186 100/500/1000
3.518.2.4.3.0050.0.0009 9 0,5 15 100,9 217 100/500/1000
3.518.2.4.3.0050.0.0010 10 0,5 15,1 109,7 234 100/500/1000
3.518.2.4.3.0050.0.0012 12 0,5 15,6 129,4 266 100/500/1000
3.518.2.4.3.0050.0.0014 14 0,5 16,4 147,8 299 100/500/1000
3.518.2.4.3.0050.0.0016 16 0,5 17,5 174,7 345 100/500/1000



Part Number Pair Count Conductor Diameter (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.518.2.4.3.0075.0.0002 2 0,75 7,6 37,3 81 100/500/1000
3.518.2.4.3.0075.0.0003 3 0,75 8,8 52,3 102 100/500/1000
3.518.2.4.3.0075.0.0004 4 0,75 10,8 71,2 139 100/500/1000
3.518.2.4.3.0075.0.0005 5 0,75 11,7 83 161 100/500/1000
3.518.2.4.3.0075.0.0006 6 0,75 12,9 97,4 189 100/500/1000
3.518.2.4.3.0075.0.0007 7 0,75 12,9 111,6 211 100/500/1000
3.518.2.4.3.0075.0.0008 8 0,75 14 126,7 234 100/500/1000
3.518.2.4.3.0075.0.0009 9 0,75 16,4 143,5 272 100/500/1000
3.518.2.4.3.0075.0.0010 10 0,75 16,5 156,8 295 100/500/1000
3.518.2.4.3.0075.0.0012 12 0,75 17,2 189,7 342 100/500/1000
3.518.2.4.3.0075.0.0014 14 0,75 18,1 217 389 100/500/1000
3.518.2.4.3.0075.0.0016 16 0,75 19,1 244,6 434 100/500/1000



Part Number Pair Count Conductor Diameter (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.518.2.4.3.0100.0.0002 2 1 8,2 44,8 94 100/500/1000
3.518.2.4.3.0100.0.0003 3 1 9,5 66,3 122 100/500/1000
3.518.2.4.3.0100.0.0004 4 1 11,6 83 159 100/500/1000
3.518.2.4.3.0100.0.0005 5 1 12,7 100,7 188 100/500/1000
3.518.2.4.3.0100.0.0006 6 1 13,9 120,1 223 100/500/1000
3.518.2.4.3.0100.0.0007 7 1 14 138 250 100/500/1000
3.518.2.4.3.0100.0.0008 8 1 15,2 155,6 277 100/500/1000
3.518.2.4.3.0100.0.0009 9 1 17,9 180,6 326 100/500/1000
3.518.2.4.3.0100.0.0010 10 1 18 199,8 356 100/500/1000
3.518.2.4.3.0100.0.0012 12 1 18,7 239,8 412 100/500/1000
3.518.2.4.3.0100.0.0014 14 1 19,7 274,4 470 100/500/1000
3.518.2.4.3.0100.0.0016 16 1 20,9 309,2 524 100/500/1000



Part Number Pair Count Conductor Diameter (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.518.2.4.3.0150.0.0002 2 1,5 8,9 64,2 118 100/500/1000
3.518.2.4.3.0150.0.0003 3 1,5 11,3 96 160 100/500/1000
3.518.2.4.3.0150.0.0004 4 1,5 12,6 121 203 100/500/1000
3.518.2.4.3.0150.0.0005 5 1,5 13,9 149,6 244 100/500/1000
3.518.2.4.3.0150.0.0006 6 1,5 15,3 177,9 289 100/500/1000
3.518.2.4.3.0150.0.0007 7 1,5 15,4 203,7 325 100/500/1000
3.518.2.4.3.0150.0.0008 8 1,5 16,7 236,6 367 100/500/1000
3.518.2.4.3.0150.0.0009 9 1,5 19,7 268,3 425 100/500/1000
3.518.2.4.3.0150.0.0010 10 1,5 19,8 294,2 463 100/500/1000
3.518.2.4.3.0150.0.0012 12 1,5 20,5 353,1 539 100/500/1000
3.518.2.4.3.0150.0.0014 14 1,5 21,6 404,8 610 100/500/1000
3.518.2.4.3.0150.0.0016 16 1,5 23 459,9 692 100/500/1000



Part Number Pair Count Conductor Diameter (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.518.2.4.3.0250.0.0002 2 2,5 11,2 102,7 190 100/500/1000
3.518.2.4.3.0250.0.0003 3 2,5 14,4 149,8 258 100/500/1000
3.518.2.4.3.0250.0.0004 4 2,5 16 199,4 334 100/500/1000
3.518.2.4.3.0250.0.0005 5 2,5 17,5 248,3 402 100/500/1000
3.518.2.4.3.0250.0.0006 6 2,5 19,2 293,3 472 100/500/1000
3.518.2.4.3.0250.0.0007 7 2,5 19,3 339,4 533 100/500/1000
3.518.2.4.3.0250.0.0008 8 2,5 21 385 594 100/500/1000
3.518.2.4.3.0250.0.0009 9 2,5 24,9 436,8 694 100/500/1000
3.518.2.4.3.0250.0.0010 10 2,5 24,9 479,9 747 100/500/1000
3.518.2.4.3.0250.0.0012 12 2,5 25,7 572,8 866 100/500/1000
Bending Radius Temperature Range
Operating
10xD mm -40°C ~ +70°C
