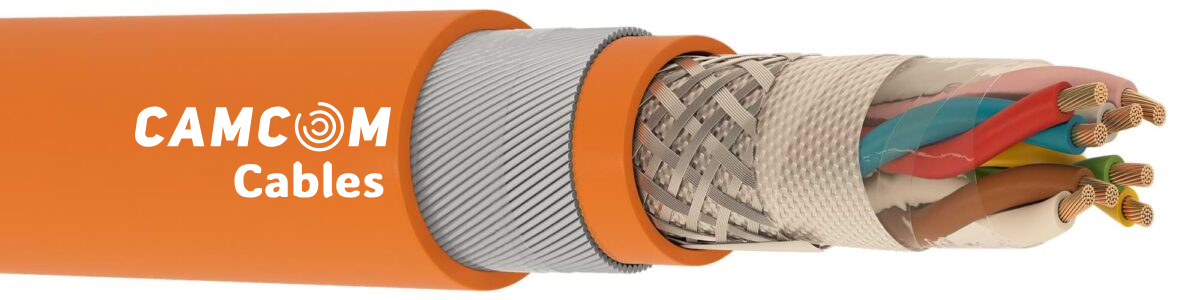

LIHCHSWAH-TP FE180 PH120 Fire Resistant Cable

Product Code: LIHCHSWAH-TP FE180 PH120

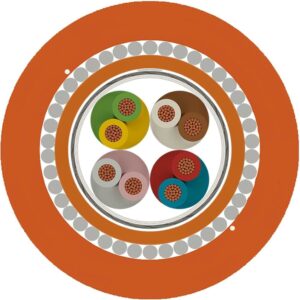

1 – Conductor	:	Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation	:	Cross-linked polymer compound in ceramic form (DIN 47100)
3 – Stranding	:	Insulations are stranded into pairs, four pairs are stranded together into groups, groups are stranded in layers.
4 – Wrapping	:	Polyester tape, glass yarn tape
5 – Screen	:	Tinned copper braiding
6 – Inner Jacket	:	UV resistant halogen-free inner jacket.
7 – Armor	:	Galvanized steel wire armor
8 – Outer Jacket	:	UV resistant halogen-free outer jacket.

Conductor Diameter	Conductor Resistance Ω/km (20 °C)	Insulation Resistance (@500V DC) MΩ/km	Mutual Capacitance nF/km	Operating Voltage V DC	Test Voltage (@ 1 minute) V DC
0.50 mm²	39.0	100	100	300	2000
0.75 mm²	26.0	100	100	300	2000
1.00 mm²	19.5	100	100	300	2000
1.50 mm²	13.3	100	100	300	2000
2.50 mm²	8.0	100	100	300	2000

Smoke Density Test	Corrosive Gas Test	Halogen-free Test	Flame Propagation Test	Flame Retardancy Test
IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2	IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3	IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1	IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24	IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2

Circuit Integrity Test (FE180)	Circuit Integrity with Shock Test (PH120)
IEC 60331-21	EN 50200, VDE 0482-200, BS EN 50200

Bending Radius	Temperature Range Operating
10xD mm	-40°C ~ +70°C
