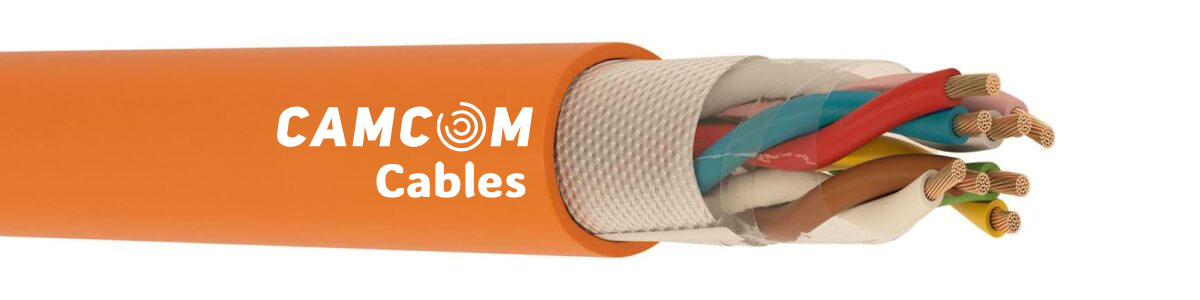

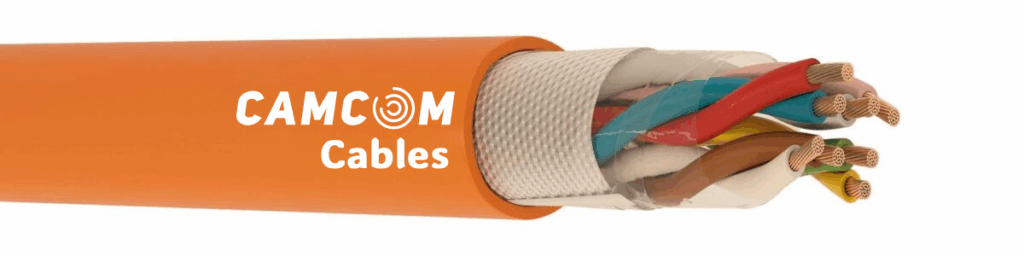

LIHH-TP FE180 PH120 Fire Resistant Cable
Product Code: LIHH-TP FE180 PH120
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Cross-linked polymer compound in ceramic form (DIN 47100) |
| 3 – Stranding | : | Insulations are stranded into pairs, four pairs are stranded together into groups, groups are stranded in layers. |
| 4 – Wrapping | : | Polyester tape, glass yarn tape |
| 5 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 2008 (Orange) |
| Conductor Diameter |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance (@500V DC) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 100 | 100 | 300 | 2000 |
| 0.75 mm² | 26.0 | 100 | 100 | 300 | 2000 |
| 1.00 mm² | 19.5 | 100 | 100 | 300 | 2000 |
| 1.50 mm² | 13.3 | 100 | 100 | 300 | 2000 |
| 2.50 mm² | 8.0 | 100 | 100 | 300 | 2000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|
| IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 |
IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 |
IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 |
IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 |
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Circuit Integrity Test (FE180) |
Circuit Integrity with Shock Test (PH120) |
|---|---|
| IEC 60331-21 | EN 50200, VDE 0482-200, BS EN 50200 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.513.2.4.3.0050.0.0001 | 1 | 0,5 | 5,4 | 8,9 | 34 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0002 | 2 | 0,5 | 7 | 17,7 | 55 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0003 | 3 | 0,5 | 8,1 | 26,6 | 75 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0004 | 4 | 0,5 | 9,8 | 35,4 | 101 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0005 | 5 | 0,5 | 10,3 | 44,3 | 117 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0006 | 6 | 0,5 | 10,9 | 53,1 | 137 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0007 | 7 | 0,5 | 11,9 | 62 | 158 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0008 | 8 | 0,5 | 12,3 | 70,8 | 175 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0009 | 9 | 0,5 | 13 | 79,7 | 195 | 100/500/1000 |
| 3.513.2.4.3.0050.0.0010 | 10 | 0,5 | 13,6 | 88,5 | 212 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.513.2.4.3.0075.0.0001 | 1 | 0,75 | 5,9 | 13,3 | 42 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0002 | 2 | 0,75 | 7,8 | 26,6 | 71 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0003 | 3 | 0,75 | 9 | 39,9 | 98 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0004 | 4 | 0,75 | 10,9 | 53,1 | 131 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0005 | 5 | 0,75 | 11,4 | 66,4 | 153 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0006 | 6 | 0,75 | 12,1 | 79,7 | 178 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0007 | 7 | 0,75 | 13,1 | 92,9 | 206 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0008 | 8 | 0,75 | 13,6 | 106,2 | 228 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0009 | 9 | 0,75 | 14,4 | 119,5 | 255 | 100/500/1000 |
| 3.513.2.4.3.0075.0.0010 | 10 | 0,75 | 15 | 132,7 | 278 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.513.2.4.3.0100.0.0001 | 1 | 1 | 6,1 | 16,6 | 46 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0002 | 2 | 1 | 8,1 | 33,2 | 79 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0003 | 3 | 1 | 9,4 | 49,8 | 110 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0004 | 4 | 1 | 11,5 | 66,4 | 148 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0005 | 5 | 1 | 12 | 83 | 173 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0006 | 6 | 1 | 12,7 | 99,6 | 203 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0007 | 7 | 1 | 13,8 | 116,2 | 235 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0008 | 8 | 1 | 14,4 | 132,7 | 261 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0009 | 9 | 1 | 15,2 | 149,3 | 292 | 100/500/1000 |
| 3.513.2.4.3.0100.0.0010 | 10 | 1 | 15,9 | 165,9 | 319 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.513.2.4.3.0150.0.0001 | 1 | 1,5 | 6,8 | 25,9 | 61 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0002 | 2 | 1,5 | 9,1 | 51,7 | 106 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0003 | 3 | 1,5 | 10,5 | 77,6 | 148 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0004 | 4 | 1,5 | 12,9 | 103,4 | 198 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0005 | 5 | 1,5 | 13,4 | 129,3 | 234 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0006 | 6 | 1,5 | 14,3 | 155,1 | 275 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0007 | 7 | 1,5 | 15,6 | 181 | 319 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0008 | 8 | 1,5 | 16,2 | 206,8 | 355 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0009 | 9 | 1,5 | 17,1 | 232,6 | 398 | 100/500/1000 |
| 3.513.2.4.3.0150.0.0010 | 10 | 1,5 | 17,9 | 258,5 | 435 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.513.2.4.3.0250.0.0001 | 1 | 2,5 | 8 | 43,1 | 87 | 100/500/1000 |
| 3.513.2.4.3.0250.0.0002 | 2 | 2,5 | 10,9 | 86,2 | 158 | 100/500/1000 |
| 3.513.2.4.3.0250.0.0003 | 3 | 2,5 | 12,8 | 129,3 | 226 | 100/500/1000 |
| 3.513.2.4.3.0250.0.0004 | 4 | 2,5 | 15,7 | 172,3 | 303 | 100/500/1000 |
| 3.513.2.4.3.0250.0.0005 | 5 | 2,5 | 16,4 | 215,4 | 361 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -40°C ~ +70°C |
