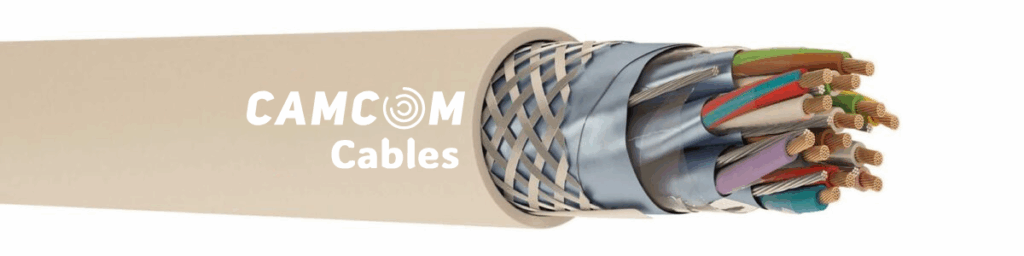

LIY(St)CY-PiMF/TiMF Signal Control Cable
Product Code:
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100) |
| 3 – Stranding | : | Screened pairs or triads are stranded in layers. |
| 4 – Individual Wrapping | : | Polyester tape |
| 5 – Individual Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Wrapping | : | Polyester tape |
| 7 – Screen | : | Al/PET tape, tinned copper braiding |
| 8 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 200 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 200 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 200 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 20 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0022.0.0002 | – | 2 | 0,22 | 7,2 | 26,5 | 54 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0003 | – | 3 | 0,22 | 7,7 | 33,7 | 68 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0004 | – | 4 | 0,22 | 8,6 | 41,9 | 86 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0005 | – | 5 | 0,22 | 9,3 | 49,3 | 100 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0006 | – | 6 | 0,22 | 10,2 | 57,8 | 117 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0007 | – | 7 | 0,22 | 10,3 | 64,3 | 130 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0008 | – | 8 | 0,22 | 11,1 | 72,1 | 144 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0009 | – | 9 | 0,22 | 13 | 81,8 | 166 | 100/500/1000 |
| 3.550.2.2.2.0022.0.0010 | – | 10 | 0,22 | 13,1 | 88,3 | 179 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0025.0.0002 | – | 2 | 0,25 | 7,5 | 28,3 | 58 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0003 | – | 3 | 0,25 | 8,1 | 36,2 | 73 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0004 | – | 4 | 0,25 | 9 | 44,5 | 92 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0005 | – | 5 | 0,25 | 9,8 | 53,3 | 108 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0006 | – | 6 | 0,25 | 10,8 | 62,2 | 127 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0007 | – | 7 | 0,25 | 10,9 | 69,2 | 141 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0008 | – | 8 | 0,25 | 11,7 | 77,6 | 157 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0009 | – | 9 | 0,25 | 13,7 | 88,7 | 181 | 100/500/1000 |
| 3.550.2.2.2.0025.0.0010 | – | 10 | 0,25 | 13,8 | 95,7 | 195 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0034.0.0002 | – | 2 | 0,34 | 8,4 | 33,1 | 70 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0003 | – | 3 | 0,34 | 9 | 43,2 | 89 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0004 | – | 4 | 0,34 | 9,9 | 53,7 | 110 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0005 | – | 5 | 0,34 | 10,9 | 64 | 131 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0006 | – | 6 | 0,34 | 11,8 | 75 | 151 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0007 | – | 7 | 0,34 | 11,9 | 83,9 | 168 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0008 | – | 8 | 0,34 | 12,9 | 94,6 | 188 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0009 | – | 9 | 0,34 | 15,3 | 113,7 | 226 | 100/500/1000 |
| 3.550.2.2.2.0034.0.0010 | – | 10 | 0,34 | 15,4 | 122,5 | 243 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0050.0.0002 | – | 2 | 0,5 | 9,6 | 48,3 | 93 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0003 | – | 3 | 0,5 | 10,3 | 63,1 | 119 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0004 | – | 4 | 0,5 | 11,4 | 78,1 | 149 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0005 | – | 5 | 0,5 | 12,5 | 94,6 | 176 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0006 | – | 6 | 0,5 | 13,7 | 110,7 | 207 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0007 | – | 7 | 0,5 | 13,8 | 124,4 | 230 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0008 | – | 8 | 0,5 | 15 | 145,9 | 263 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0009 | – | 9 | 0,5 | 17,7 | 165,5 | 305 | 100/500/1000 |
| 3.550.2.2.2.0050.0.0010 | – | 10 | 0,5 | 17,7 | 179,2 | 325 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0075.0.0002 | – | 2 | 0,75 | 10,5 | 58,3 | 113 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0003 | – | 3 | 0,75 | 11,3 | 77,6 | 141 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0004 | – | 4 | 0,75 | 12,5 | 98,4 | 182 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0005 | – | 5 | 0,75 | 13,7 | 118,9 | 215 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0006 | – | 6 | 0,75 | 15 | 144,9 | 258 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0007 | – | 7 | 0,75 | 15,1 | 163,1 | 286 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0008 | – | 8 | 0,75 | 16,4 | 182,7 | 319 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0009 | – | 9 | 0,75 | 19,3 | 207,4 | 371 | 100/500/1000 |
| 3.550.2.2.2.0075.0.0010 | – | 10 | 0,75 | 19,3 | 225,6 | 396 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0100.0.0002 | – | 2 | 1 | 11,3 | 66,1 | 126 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0003 | – | 3 | 1 | 12,1 | 88,9 | 163 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0004 | – | 4 | 1 | 13,4 | 113,7 | 207 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0005 | – | 5 | 1 | 14,7 | 143,1 | 250 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0006 | – | 6 | 1 | 16,1 | 166,1 | 292 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0007 | – | 7 | 1 | 16,2 | 187,5 | 325 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0008 | – | 8 | 1 | 17,6 | 213,4 | 366 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0009 | – | 9 | 1 | 20,7 | 246,8 | 424 | 100/500/1000 |
| 3.550.2.2.2.0100.0.0010 | – | 10 | 1 | 20,8 | 268,2 | 459 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0150.0.0002 | – | 2 | 1,5 | 12,4 | 87,4 | 157 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0003 | – | 3 | 1,5 | 13,3 | 118,8 | 204 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0004 | – | 4 | 1,5 | 14,8 | 156,7 | 264 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0005 | – | 5 | 1,5 | 16,3 | 191,1 | 315 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0006 | – | 6 | 1,5 | 17,8 | 226,4 | 372 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0007 | – | 7 | 1,5 | 17,9 | 257,1 | 416 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0008 | – | 8 | 1,5 | 19,5 | 290,2 | 467 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0009 | – | 9 | 1,5 | 23 | 334,1 | 544 | 100/500/1000 |
| 3.550.2.2.2.0150.0.0010 | – | 10 | 1,5 | 23 | 364,8 | 584 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.550.2.2.2.0250.0.0002 | – | 2 | 2,5 | 14,8 | 131,9 | 226 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0003 | – | 3 | 2,5 | 15,9 | 180,9 | 297 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0004 | – | 4 | 2,5 | 17,6 | 233,4 | 378 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0005 | – | 5 | 2,5 | 19,4 | 284 | 452 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0006 | – | 6 | 2,5 | 21,3 | 342,1 | 538 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0007 | – | 7 | 2,5 | 21,4 | 390,1 | 604 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0008 | – | 8 | 2,5 | 23,3 | 441,5 | 680 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0009 | – | 9 | 2,5 | 27,5 | 503,8 | 787 | 100/500/1000 |
| 3.550.2.2.2.0250.0.0010 | – | 10 | 2,5 | 27,5 | 551,7 | 848 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
