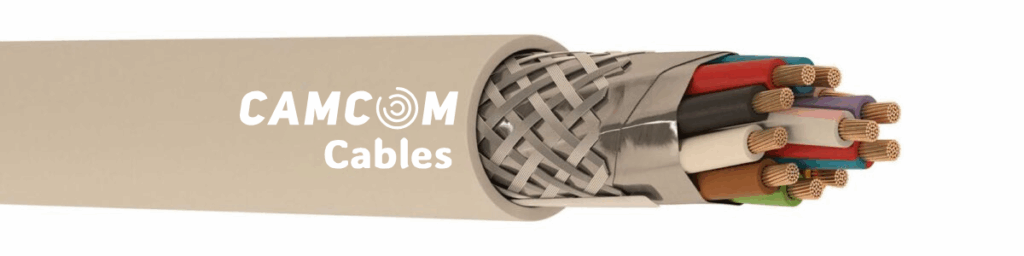

LIY(St)CY Signal Control Cable
Product Code:
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100) |
| 3 – Stranding | : | In layers |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Al/PET tape, tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 200 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 200 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 200 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 20 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.2.2.2.0022.0.0002 | 2 | – | 0,22 | 3,8 | 8,3 | 20 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0003 | 3 | – | 0,22 | 4 | 10,4 | 24 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0004 | 4 | – | 0,22 | 4,4 | 12,8 | 29 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0005 | 5 | – | 0,22 | 4,7 | 16,1 | 35 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0006 | 6 | – | 0,22 | 5,2 | 18,4 | 41 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0007 | 7 | – | 0,22 | 5,2 | 20,5 | 44 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0008 | 8 | – | 0,22 | 5,6 | 23 | 49 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0009 | 9 | – | 0,22 | 5,9 | 26,2 | 55 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0010 | 10 | – | 0,22 | 6,5 | 28,4 | 61 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0012 | 12 | – | 0,22 | 6,9 | 33,5 | 73 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0014 | 14 | – | 0,22 | 7,1 | 38,4 | 79 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0016 | 16 | – | 0,22 | 7,4 | 42,9 | 87 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0018 | 18 | – | 0,22 | 7,8 | 47,3 | 96 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0019 | 19 | – | 0,22 | 7,8 | 49,4 | 99 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0020 | 20 | – | 0,22 | 8,2 | 52,3 | 105 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0021 | 21 | – | 0,22 | 8,2 | 54,5 | 108 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0024 | 24 | – | 0,22 | 9,1 | 62,4 | 125 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0025 | 25 | – | 0,22 | 9,1 | 64,5 | 128 | 100/500/1000 |
| 3.522.2.2.2.0022.0.0027 | 27 | – | 0,22 | 9,3 | 69,4 | 136 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.2.2.2.0034.0.0002 | 2 | – | 0,34 | 4,6 | 11,7 | 29 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0003 | 3 | – | 0,34 | 4,8 | 15,4 | 35 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0004 | 4 | – | 0,34 | 5,3 | 18,9 | 43 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0005 | 5 | – | 0,34 | 5,8 | 22,6 | 52 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0006 | 6 | – | 0,34 | 6,3 | 26,9 | 59 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0007 | 7 | – | 0,34 | 6,3 | 30,2 | 65 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0008 | 8 | – | 0,34 | 6,8 | 33,6 | 72 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0009 | 9 | – | 0,34 | 7,3 | 38,1 | 81 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0010 | 10 | – | 0,34 | 7,9 | 41,7 | 89 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0012 | 12 | – | 0,34 | 8,1 | 48,9 | 101 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0014 | 14 | – | 0,34 | 8,7 | 56,1 | 118 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0016 | 16 | – | 0,34 | 9,1 | 64,1 | 131 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0018 | 18 | – | 0,34 | 9,7 | 71 | 147 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0019 | 19 | – | 0,34 | 9,7 | 74,4 | 152 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0020 | 20 | – | 0,34 | 10,2 | 78 | 159 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0021 | 21 | – | 0,34 | 10,2 | 81,4 | 165 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0024 | 24 | – | 0,34 | 11,4 | 93 | 192 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0025 | 25 | – | 0,34 | 11,4 | 96,4 | 198 | 100/500/1000 |
| 3.522.2.2.2.0034.0.0027 | 27 | – | 0,34 | 11,6 | 103,2 | 209 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.2.2.2.0050.0.0002 | 2 | – | 0,5 | 5 | 14,2 | 34 | 100/500/1000 |
| 3.522.2.2.2.0050.0.0003 | 3 | – | 0,5 | 5,3 | 18,6 | 41 | 100/500/1000 |
| 3.522.2.2.2.0050.0.0004 | 4 | – | 0,5 | 5,8 | 23,7 | 52 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0005 | 5 | – | 0,5 | 6,4 | 29,1 | 64 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0006 | 6 | – | 0,5 | 6,9 | 34,8 | 76 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0007 | 7 | – | 0,5 | 6,9 | 39,2 | 79 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0008 | 8 | – | 0,5 | 7,5 | 43,9 | 94 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0009 | 9 | – | 0,5 | 8,8 | 50,9 | 110 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0010 | 10 | – | 0,5 | 8,8 | 55,4 | 113 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0012 | 12 | – | 0,5 | 9,2 | 64,7 | 131 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0014 | 14 | – | 0,5 | 9,7 | 73,7 | 149 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0016 | 16 | – | 0,5 | 10,2 | 83,3 | 166 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0018 | 18 | – | 0,5 | 10,8 | 92,5 | 188 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0019 | 19 | – | 0,5 | 10,8 | 96,9 | 192 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0020 | 20 | – | 0,5 | 11,4 | 102,5 | 208 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0021 | 21 | – | 0,5 | 11,4 | 106,9 | 209 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0024 | 24 | – | 0,5 | 12,7 | 120,9 | 242 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0025 | 25 | – | 0,5 | 12,7 | 125,3 | 256 | 100/500/1000 |
| 3.522.3.2.2.0050.0.0027 | 27 | – | 0,5 | 13 | 134,4 | 264 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.2.2.2.0075.0.0002 | 2 | – | 0,75 | 5,6 | 19,2 | 43 | 100/500/1000 |
| 3.522.2.2.2.0075.0.0003 | 3 | – | 0,75 | 5,9 | 25,9 | 54 | 100/500/1000 |
| 3.522.2.2.2.0075.0.0004 | 4 | – | 0,75 | 6,5 | 33,6 | 67 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0005 | 5 | – | 0,75 | 7,1 | 41,4 | 84 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0006 | 6 | – | 0,75 | 7,7 | 48,5 | 98 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0007 | 7 | – | 0,75 | 7,7 | 55,2 | 103 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0008 | 8 | – | 0,75 | 8,5 | 62,7 | 125 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0009 | 9 | – | 0,75 | 9,8 | 70,5 | 142 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0010 | 10 | – | 0,75 | 9,8 | 77,7 | 147 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0012 | 12 | – | 0,75 | 10,2 | 91,5 | 170 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0014 | 14 | – | 0,75 | 10,8 | 105,6 | 195 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0016 | 16 | – | 0,75 | 11,3 | 120,1 | 217 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0018 | 18 | – | 0,75 | 12 | 136,1 | 249 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0019 | 19 | – | 0,75 | 12 | 142,7 | 254 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0020 | 20 | – | 0,75 | 12,7 | 150,7 | 275 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0021 | 21 | – | 0,75 | 12,7 | 157,4 | 277 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0024 | 24 | – | 0,75 | 14 | 174,8 | 313 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0025 | 25 | – | 0,75 | 14 | 181,5 | 331 | 100/500/1000 |
| 3.522.3.2.2.0075.0.0027 | 27 | – | 0,75 | 14,4 | 197,7 | 349 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.2.2.2.0100.0.0002 | 2 | – | 1 | 6 | 23,5 | 50 | 100/500/1000 |
| 3.522.2.2.2.0100.0.0003 | 3 | – | 1 | 6,3 | 32 | 63 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0004 | 4 | – | 1 | 7 | 41,3 | 79 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0005 | 5 | – | 1 | 7,7 | 49,9 | 98 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0006 | 6 | – | 1 | 8,3 | 59,8 | 116 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0007 | 7 | – | 1 | 8,3 | 68,1 | 123 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0008 | 8 | – | 1 | 9,2 | 77,5 | 148 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0009 | 9 | – | 1 | 10,6 | 86,7 | 168 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0010 | 10 | – | 1 | 10,6 | 94,9 | 174 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0012 | 12 | – | 1 | 11 | 112,4 | 202 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0014 | 14 | – | 1 | 11,7 | 132,6 | 234 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0016 | 16 | – | 1 | 12,3 | 150,7 | 261 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0018 | 18 | – | 1 | 13 | 164,3 | 293 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0019 | 19 | – | 1 | 13 | 172,5 | 299 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0020 | 20 | – | 1 | 13,7 | 183,4 | 326 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0021 | 21 | – | 1 | 13,7 | 191,7 | 329 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0024 | 24 | – | 1 | 15,2 | 219,3 | 377 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0025 | 25 | – | 1 | 15,2 | 227,6 | 400 | 100/500/1000 |
| 3.522.3.2.2.0100.0.0027 | 27 | – | 1 | 15,5 | 244,4 | 414 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.2.2.2.0150.0.0002 | 2 | – | 1,5 | 6,7 | 32,8 | 64 | 100/500/1000 |
| 3.522.2.2.2.0150.0.0003 | 3 | – | 1,5 | 7,1 | 46,2 | 83 | 100/500/1000 |
| 3.522.2.2.2.0150.0.0004 | 4 | – | 1,5 | 7,8 | 60,2 | 105 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0005 | 5 | – | 1,5 | 8,6 | 74,6 | 131 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0006 | 6 | – | 1,5 | 9,3 | 88,7 | 155 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0007 | 7 | – | 1,5 | 9,3 | 101,6 | 165 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0008 | 8 | – | 1,5 | 10,2 | 115,2 | 197 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0009 | 9 | – | 1,5 | 11,9 | 129,4 | 224 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0010 | 10 | – | 1,5 | 11,9 | 142,3 | 234 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0012 | 12 | – | 1,5 | 12,4 | 171,8 | 276 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0014 | 14 | – | 1,5 | 13,1 | 199 | 316 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0016 | 16 | – | 1,5 | 13,8 | 224,2 | 352 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0018 | 18 | – | 1,5 | 14,6 | 251,1 | 401 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0019 | 19 | – | 1,5 | 14,6 | 264 | 411 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0020 | 20 | – | 1,5 | 15,4 | 278,5 | 445 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0021 | 21 | – | 1,5 | 15,4 | 289,7 | 448 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0024 | 24 | – | 1,5 | 17,2 | 331,1 | 518 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0025 | 25 | – | 1,5 | 17,2 | 344 | 548 | 100/500/1000 |
| 3.522.3.2.2.0150.0.0027 | 27 | – | 1,5 | 17,6 | 370,1 | 570 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.522.2.2.2.0250.0.0002 | 2 | – | 2,5 | 7,8 | 52,8 | 90 | 100/500/1000 |
| 3.522.2.2.2.0250.0.0003 | 3 | – | 2,5 | 8,3 | 74,7 | 119 | 100/500/1000 |
| 3.522.2.2.2.0250.0.0004 | 4 | – | 2,5 | 9,2 | 97,3 | 155 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0005 | 5 | – | 2,5 | 10,3 | 120,3 | 197 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0006 | 6 | – | 2,5 | 11,2 | 145,8 | 238 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0007 | 7 | – | 2,5 | 11,2 | 167,4 | 254 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0008 | 8 | – | 2,5 | 12,4 | 190,3 | 304 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0009 | 9 | – | 2,5 | 14,5 | 212,6 | 346 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0010 | 10 | – | 2,5 | 14,5 | 234,1 | 362 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0012 | 12 | – | 2,5 | 15,1 | 277,4 | 422 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0014 | 14 | – | 2,5 | 15,9 | 322,1 | 485 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0016 | 16 | – | 2,5 | 16,8 | 365,8 | 545 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0018 | 18 | – | 2,5 | 17,8 | 411,2 | 621 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0019 | 19 | – | 2,5 | 17,8 | 432,8 | 636 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0020 | 20 | – | 2,5 | 18,8 | 455,5 | 689 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0021 | 21 | – | 2,5 | 18,8 | 477 | 697 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0024 | 24 | – | 2,5 | 20,9 | 548,3 | 802 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0025 | 25 | – | 2,5 | 20,9 | 569,9 | 851 | 100/500/1000 |
| 3.522.3.2.2.0250.0.0027 | 27 | – | 2,5 | 21,4 | 616,8 | 889 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
