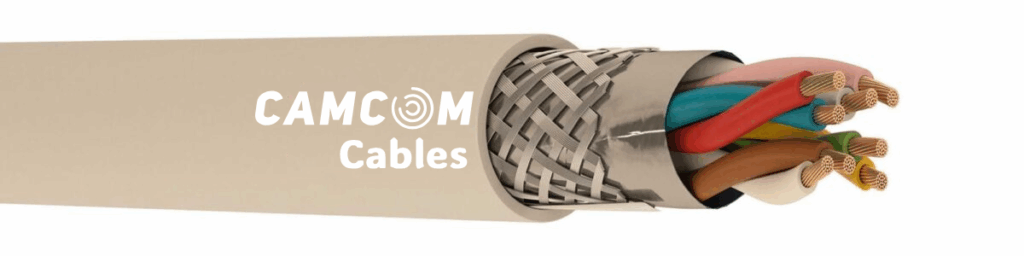

LIY(St)CY-TP/TT Signal Control Cable
Product Code:
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100) |
| 3 – Stranding | : | Insulations are stranded into pairs or triads and all pairs or triads are stranded together. |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Al/PET tape, tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating VoltageV DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 200 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 200 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 200 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 20 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.523.2.2.2.0050.0.0001 | – | 1 | 0,5 | 5,1 | 14,3 | 34 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0002 | – | 2 | 0,5 | 6,8 | 24,8 | 57 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0003 | – | 3 | 0,5 | 7,9 | 35,3 | 78 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0004 | – | 4 | 0,5 | 9,6 | 46,4 | 105 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0005 | – | 5 | 0,5 | 10 | 55,6 | 121 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0006 | – | 6 | 0,5 | 10,7 | 65,1 | 141 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0007 | – | 7 | 0,5 | 11,6 | 75,1 | 163 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0008 | – | 8 | 0,5 | 12,1 | 85,3 | 180 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0009 | – | 9 | 0,5 | 12,8 | 94,5 | 201 | 100/500/1000 |
| 3.523.2.2.2.0050.0.0010 | – | 10 | 0,5 | 13,4 | 105,9 | 220 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.523.2.2.2.0075.0.0001 | – | 1 | 0,75 | 5,6 | 18,8 | 43 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0002 | – | 2 | 0,75 | 7,8 | 35,3 | 75 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0003 | – | 3 | 0,75 | 8,4 | 48,7 | 97 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0004 | – | 4 | 0,75 | 9,3 | 63,8 | 125 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0005 | – | 5 | 0,75 | 10,2 | 77,6 | 149 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0006 | – | 6 | 0,75 | 11,1 | 92,5 | 176 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0007 | – | 7 | 0,75 | 11,2 | 105,8 | 197 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0008 | – | 8 | 0,75 | 12,1 | 120,5 | 222 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0009 | – | 9 | 0,75 | 14,3 | 136,8 | 258 | 100/500/1000 |
| 3.523.2.2.2.0075.0.0010 | – | 10 | 0,75 | 14,3 | 150 | 276 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.523.2.2.2.0100.0.0001 | – | 1 | 1 | 6 | 22,6 | 49 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0002 | – | 2 | 1 | 8,3 | 42,6 | 84 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0003 | – | 3 | 1 | 9 | 60,4 | 115 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0004 | – | 4 | 1 | 10 | 78,2 | 148 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0005 | – | 5 | 1 | 11 | 95,9 | 176 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0006 | – | 6 | 1 | 12,1 | 113,9 | 208 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0007 | – | 7 | 1 | 12,2 | 130,5 | 234 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0008 | – | 8 | 1 | 13,2 | 147,8 | 263 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0009 | – | 9 | 1 | 15,5 | 169,8 | 307 | 100/500/1000 |
| 3.523.2.2.2.0100.0.0010 | – | 10 | 1 | 15,5 | 184,3 | 328 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.523.2.2.2.0150.0.0001 | – | 1 | 1,5 | 6,7 | 32,7 | 64 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0002 | – | 2 | 1,5 | 9,3 | 62,6 | 112 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0003 | – | 3 | 1,5 | 9,1 | 88,2 | 138 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0004 | – | 4 | 1,5 | 10,1 | 114,6 | 177 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0005 | – | 5 | 1,5 | 11,1 | 142,2 | 213 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0006 | – | 6 | 1,5 | 12,2 | 169,5 | 252 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0007 | – | 7 | 1,5 | 12,3 | 195,3 | 285 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0008 | – | 8 | 1,5 | 13,3 | 221,8 | 321 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0009 | – | 9 | 1,5 | 15,6 | 253,2 | 372 | 100/500/1000 |
| 3.523.2.2.2.0150.0.0010 | – | 10 | 1,5 | 15,6 | 279 | 402 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.523.2.2.2.0250.0.0001 | – | 1 | 2,5 | 7,9 | 51,9 | 92 | 100/500/1000 |
| 3.523.2.2.2.0250.0.0002 | – | 2 | 2,5 | 10,7 | 98,2 | 162 | 100/500/1000 |
| 3.523.2.2.2.0250.0.0003 | – | 3 | 2,5 | 12,5 | 144 | 229 | 100/500/1000 |
| 3.523.2.2.2.0250.0.0004 | – | 4 | 2,5 | 15,4 | 190,8 | 306 | 100/500/1000 |
| 3.523.2.2.2.0250.0.0005 | – | 5 | 2,5 | 16,1 | 234,6 | 364 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
