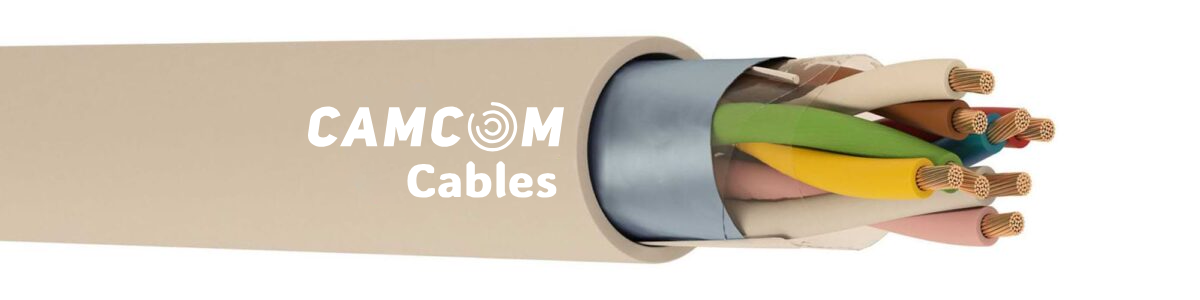

LIY(St)Y-TP/TT Signal Control Cable
Product Code: LIY(St)Y-TP/TT
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100) |
| 3 – Stranding | : | Insulations are stranded into pairs or triads and all pairs or triads are stranded together. |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating Voltage V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 200 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 200 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 200 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 20 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.541.2.2.2.0050.0.0001 | – | 1 | 0,5 | 5,1 | 11 | 33 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0002 | – | 2 | 0,5 | 6,6 | 19,8 | 53 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0003 | – | 3 | 0,5 | 7,7 | 28,7 | 72 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0004 | – | 4 | 0,5 | 9,5 | 37,5 | 98 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0005 | – | 5 | 0,5 | 9,9 | 46,4 | 114 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0006 | – | 6 | 0,5 | 10,5 | 55,2 | 132 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0007 | – | 7 | 0,5 | 11,5 | 64 | 153 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0008 | – | 8 | 0,5 | 12 | 72,9 | 170 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0009 | – | 9 | 0,5 | 12,7 | 81,7 | 190 | 100/500/1000 |
| 3.541.2.2.2.0050.0.0010 | – | 10 | 0,5 | 13,2 | 90,6 | 207 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.541.2.2.2.0075.0.0001 | – | 1 | 0,75 | 5,5 | 17,7 | 42 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0002 | – | 2 | 0,75 | 7,3 | 30,9 | 69 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0003 | – | 3 | 0,75 | 8,4 | 44,2 | 95 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0004 | – | 4 | 0,75 | 10,4 | 57,5 | 126 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0005 | – | 5 | 0,75 | 10,8 | 70,7 | 147 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0006 | – | 6 | 0,75 | 11,5 | 84 | 171 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0007 | – | 7 | 0,75 | 12,5 | 97,3 | 198 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0008 | – | 8 | 0,75 | 13 | 110,5 | 219 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0009 | – | 9 | 0,75 | 13,8 | 123,8 | 245 | 100/500/1000 |
| 3.541.2.2.2.0075.0.0010 | – | 10 | 0,75 | 14,4 | 137,1 | 267 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.541.2.2.2.0100.0.0001 | – | 1 | 1 | 5,9 | 21 | 48 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0002 | – | 2 | 1 | 7,9 | 37,6 | 81 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0003 | – | 3 | 1 | 9,1 | 54,1 | 111 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0004 | – | 4 | 1 | 11,2 | 70,7 | 148 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0005 | – | 5 | 1 | 11,7 | 87,3 | 173 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0006 | – | 6 | 1 | 12,5 | 103,9 | 203 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0007 | – | 7 | 1 | 13,6 | 120,5 | 235 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0008 | – | 8 | 1 | 14,2 | 137,1 | 260 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0009 | – | 9 | 1 | 15 | 153,7 | 291 | 100/500/1000 |
| 3.541.2.2.2.0100.0.0010 | – | 10 | 1 | 15,6 | 170,2 | 318 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.541.2.2.2.0150.0.0001 | – | 1 | 1,5 | 6,6 | 30,2 | 62 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0002 | – | 2 | 1,5 | 8,8 | 56,1 | 107 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0003 | – | 3 | 1,5 | 10,3 | 81,9 | 149 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0004 | – | 4 | 1,5 | 12,6 | 107,8 | 199 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0005 | – | 5 | 1,5 | 13,2 | 133,6 | 234 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0006 | – | 6 | 1,5 | 14 | 159,4 | 274 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0007 | – | 7 | 1,5 | 15,3 | 185,3 | 318 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0008 | – | 8 | 1,5 | 16 | 211,1 | 354 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0009 | – | 9 | 1,5 | 16,9 | 237 | 396 | 100/500/1000 |
| 3.541.2.2.2.0150.0.0010 | – | 10 | 1,5 | 17,6 | 262,8 | 434 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.541.2.2.2.0250.0.0001 | – | 1 | 2,5 | 7,8 | 47,5 | 88 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0002 | – | 2 | 2,5 | 10,6 | 90,5 | 156 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0003 | – | 3 | 2,5 | 12,4 | 133,6 | 220 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0004 | – | 4 | 2,5 | 15,2 | 176,7 | 294 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0005 | – | 5 | 2,5 | 16 | 219,7 | 352 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0006 | – | 6 | 2,5 | 17 | 262,8 | 414 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0007 | – | 7 | 2,5 | 18,6 | 305,9 | 480 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0008 | – | 8 | 2,5 | 19,3 | 349 | 538 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0009 | – | 9 | 2,5 | 20,5 | 392 | 603 | 100/500/1000 |
| 3.541.2.2.2.0250.0.0010 | – | 10 | 2,5 | 21,4 | 435,1 | 662 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
