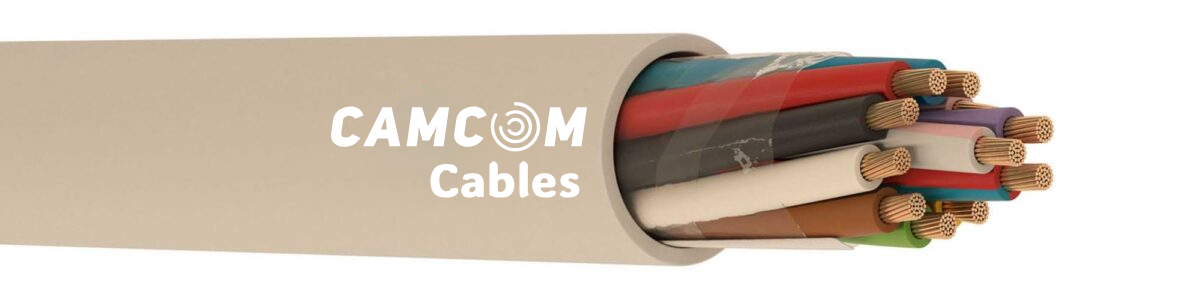

LIYY Signal Control Cable

Product Code: LIYY

  • Cable Construction
  • Technical Data
  • Standards
  • Types
  • Mechanical Characteristics
1 – Conductor : Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Stranding : In layers
4 – Wrapping : Polyester tape
5 – Outer Jacket : UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		 Conductor Resistance
(20 °C)
Ω/km		 Insulation
Resistance
(20 °C)
MΩ/km		 Mutual Capacitance

nF/km

 Operating
Voltage

V DC

 Test Voltage

(@ 1 minute)
V DC
0.22 mm² 85.0 200 110 250 1200
0.25 mm² 77.8 200 110 250 1200
0.34 mm² 56.0 200 110 250 1200
0.50 mm² 39.0 20 120 300/500 2000
0.75 mm² 26.0 20 120 300/500 2000
1.00 mm² 19.5 20 130 300/500 2000
1.50 mm² 13.3 20 140 300/500 2000
2.50 mm² 7.98 20 150 300/500 2000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0022.0.0002 2 – 0,22 3,5 4,3 15 100/500/1000
3.510.2.2.2.0022.0.0003 3 – 0,22 3,7 6,4 19 100/500/1000
3.510.2.2.2.0022.0.0004 4 – 0,22 4 8,5 23 100/500/1000
3.510.2.2.2.0022.0.0005 5 – 0,22 4,5 10,7 29 100/500/1000
3.510.2.2.2.0022.0.0006 6 – 0,22 4,9 12,8 35 100/500/1000
3.510.2.2.2.0022.0.0007 7 – 0,22 4,9 14,9 37 100/500/1000
3.510.2.2.2.0022.0.0008 8 – 0,22 5,5 17,1 46 100/500/1000
3.510.2.2.2.0022.0.0009 9 – 0,22 5,8 19,2 50 100/500/1000
3.510.2.2.2.0022.0.0010 10 – 0,22 6,3 21,3 54 100/500/1000
3.510.2.2.2.0022.0.0012 12 – 0,22 6,6 25,6 63 100/500/1000
3.510.2.2.2.0022.0.0014 14 – 0,22 7 29,9 72 100/500/1000
3.510.2.2.2.0022.0.0016 16 – 0,22 7,3 34,1 80 100/500/1000
3.510.2.2.2.0022.0.0018 18 – 0,22 7,7 38,4 91 100/500/1000
3.510.2.2.2.0022.0.0019 19 – 0,22 7,8 40,5 93 100/500/1000
3.510.2.2.2.0022.0.0020 20 – 0,22 8,2 42,7 98 100/500/1000
3.510.2.2.2.0022.0.0021 21 – 0,22 8,3 44,8 104 100/500/1000
3.510.2.2.2.0022.0.0024 24 – 0,22 9,1 51,2 117 100/500/1000
3.510.2.2.2.0022.0.0025 25 – 0,22 9,1 53,3 123 100/500/1000
3.510.2.2.2.0022.0.0027 27 – 0,22 9,5 57,6 133 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0025.0.0002 2 – 0,25 3,8 4,8 17 100/500/1000
3.510.2.2.2.0025.0.0003 3 – 0,25 4 7,2 22 100/500/1000
3.510.2.2.2.0025.0.0004 4 – 0,25 4,3 9,6 26 100/500/1000
3.510.2.2.2.0025.0.0005 5 – 0,25 4,8 12 32 100/500/1000
3.510.2.2.2.0025.0.0006 6 – 0,25 5,2 14,4 39 100/500/1000
3.510.2.2.2.0025.0.0007 7 – 0,25 5,2 16,8 41 100/500/1000
3.510.2.2.2.0025.0.0008 8 – 0,25 5,8 19,2 49 100/500/1000
3.510.2.2.2.0025.0.0009 9 – 0,25 6,2 21,6 54 100/500/1000
3.510.2.2.2.0025.0.0010 10 – 0,25 6,7 24 60 100/500/1000
3.510.2.2.2.0025.0.0012 12 – 0,25 7 28,8 70 100/500/1000
3.510.2.2.2.0025.0.0014 14 – 0,25 7,4 33,6 81 100/500/1000
3.510.2.2.2.0025.0.0016 16 – 0,25 7,8 34,1 87 100/500/1000
3.510.2.2.2.0025.0.0018 18 – 0,25 8,2 43,2 102 100/500/1000
3.510.2.2.2.0025.0.0019 19 – 0,25 8,3 45,6 105 100/500/1000
3.510.2.2.2.0025.0.0020 20 – 0,25 8,7 48 111 100/500/1000
3.510.2.2.2.0025.0.0021 21 – 0,25 8,8 50,4 117 100/500/1000
3.510.2.2.2.0025.0.0024 24 – 0,25 9,7 57,6 132 100/500/1000
3.510.2.2.2.0025.0.0025 25 – 0,25 9,7 60 138 100/500/1000
3.510.2.2.2.0025.0.0027 27 – 0,25 10,1 64,8 149 100/500/1000



art Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0034.0.0002 2 – 0,34 4,3 6,7 22 100/500/1000
3.510.2.2.2.0034.0.0003 3 – 0,34 4,5 10 28 100/500/1000
3.510.2.2.2.0034.0.0004 4 – 0,34 4,9 13,3 34 100/500/1000
3.510.2.2.2.0034.0.0005 5 – 0,34 5,4 16,7 42 100/500/1000
3.510.2.2.2.0034.0.0006 6 – 0,34 5,9 20 52 100/500/1000
3.510.2.2.2.0034.0.0007 7 – 0,34 5,9 23,3 54 100/500/1000
3.510.2.2.2.0034.0.0008 8 – 0,34 6,5 26,7 65 100/500/1000
3.510.2.2.2.0034.0.0009 9 – 0,34 7,5 30 74 100/500/1000
3.510.2.2.2.0034.0.0010 10 – 0,34 7,6 33,3 78 100/500/1000
3.510.2.2.2.0034.0.0012 12 – 0,34 7,8 40 90 100/500/1000
3.510.2.2.2.0034.0.0014 14 – 0,34 8,3 46,7 104 100/500/1000
3.510.2.2.2.0034.0.0016 16 – 0,34 8,7 53,3 116 100/500/1000
3.510.2.2.2.0034.0.0018 18 – 0,34 9,3 60 133 100/500/1000
3.510.2.2.2.0034.0.0019 19 – 0,34 9,4 63,3 138 100/500/1000
3.510.2.2.2.0034.0.0020 20 – 0,34 9,9 66,7 145 100/500/1000
3.510.2.2.2.0034.0.0021 21 – 0,34 9,9 70 150 100/500/1000
3.510.2.2.2.0034.0.0024 24 – 0,34 11,1 80 176 100/500/1000
3.510.2.2.2.0034.0.0025 25 – 0,34 11,1 83,3 184 100/500/1000
3.510.2.2.2.0034.0.0027 27 – 0,34 11,3 90 193 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0050.0.0002 2 – 0,5 4,9 8,8 29 100/500/1000
3.510.2.2.2.0050.0.0003 3 – 0,5 5,2 13,2 37 100/500/1000
3.510.2.2.2.0050.0.0004 4 – 0,5 5,6 17,6 45 100/500/1000
3.510.3.2.2.0050.0.0005 5 – 0,5 6,2 22 57 100/500/1000
3.510.3.2.2.0050.0.0006 6 – 0,5 6,7 26,4 67 100/500/1000
3.510.3.2.2.0050.0.0007 7 – 0,5 6,7 30,8 70 100/500/1000
3.510.3.2.2.0050.0.0008 8 – 0,5 7,4 35,2 86 100/500/1000
3.510.3.2.2.0050.0.0009 9 – 0,5 8,6 39,6 98 100/500/1000
3.510.3.2.2.0050.0.0010 10 – 0,5 8,6 44 101 100/500/1000
3.510.3.2.2.0050.0.0012 12 – 0,5 9 52,8 118 100/500/1000
3.510.3.2.2.0050.0.0014 14 – 0,5 9,5 61,6 136 100/500/1000
3.510.3.2.2.0050.0.0016 16 – 0,5 10 70,4 152 100/500/1000
3.510.3.2.2.0050.0.0018 18 – 0,5 10,6 79,2 174 100/500/1000
3.510.3.2.2.0050.0.0019 19 – 0,5 10,6 83,6 177 100/500/1000
3.510.3.2.2.0050.0.0020 20 – 0,5 11,2 88 198 100/500/1000
3.510.3.2.2.0050.0.0021 21 – 0,5 11,2 92,4 204 100/500/1000
3.510.3.2.2.0050.0.0024 24 – 0,5 12,5 105,6 226 100/500/1000
3.510.3.2.2.0050.0.0025 25 – 0,5 12,5 110 239 100/500/1000
3.510.3.2.2.0050.0.0027 27 – 0,5 12,7 118,8 247 100/500/1000
3.510.3.2.2.0050.0.0030 30 – 0,5 13,3 132 273 100/500/1000
3.510.3.2.2.0050.0.0032 32 – 0,5 13,8 140,8 293 100/500/1000
3.510.3.2.2.0050.0.0036 36 – 0,5 14,4 158,5 326 100/500/1000
3.510.3.2.2.0050.0.0040 40 – 0,5 15,1 176,1 371 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0075.0.0002 2 – 0,75 5,3 13,2 35 100/500/1000
3.510.2.2.2.0075.0.0003 3 – 0,75 5,6 19,8 46 100/500/1000
3.510.2.2.2.0075.0.0004 4 – 0,75 6,1 26,4 57 100/500/1000
3.510.3.2.2.0075.0.0005 5 – 0,75 6,7 33 72 100/500/1000
3.510.3.2.2.0075.0.0006 6 – 0,75 7,3 39,6 85 100/500/1000
3.510.3.2.2.0075.0.0007 7 – 0,75 7,3 46,2 90 100/500/1000
3.510.3.2.2.0075.0.0008 8 – 0,75 8,1 52,8 110 100/500/1000
3.510.3.2.2.0075.0.0009 9 – 0,75 9,4 59,4 125 100/500/1000
3.510.3.2.2.0075.0.0010 10 – 0,75 9,4 66 130 100/500/1000
3.510.3.2.2.0075.0.0012 12 – 0,75 9,8 79,2 152 100/500/1000
3.510.3.2.2.0075.0.0014 14 – 0,75 10,4 92,4 175 100/500/1000
3.510.3.2.2.0075.0.0016 16 – 0,75 10,9 105,6 196 100/500/1000
3.510.3.2.2.0075.0.0018 18 – 0,75 11,6 118,8 225 100/500/1000
3.510.3.2.2.0075.0.0019 19 – 0,75 11,6 125,4 229 100/500/1000
3.510.3.2.2.0075.0.0020 20 – 0,75 12,2 132 256 100/500/1000
3.510.3.2.2.0075.0.0021 21 – 0,75 12,2 138,6 264 100/500/1000
3.510.3.2.2.0075.0.0024 24 – 0,75 13,7 158,5 292 100/500/1000
3.510.3.2.2.0075.0.0025 25 – 0,75 13,7 165,1 310 100/500/1000
3.510.3.2.2.0075.0.0027 27 – 0,75 14 178,3 321 100/500/1000
3.510.3.2.2.0075.0.0030 30 – 0,75 14,6 198,1 355 100/500/1000
3.510.3.2.2.0075.0.0032 32 – 0,75 15,1 211,3 381 100/500/1000
3.510.3.2.2.0075.0.0036 36 – 0,75 15,8 237,7 425 100/500/1000
3.510.3.2.2.0075.0.0040 40 – 0,75 16,5 264,1 483 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0100.0.0002 2 – 1 5,7 16,5 41 100/500/1000
3.510.2.2.2.0100.0.0003 3 – 1 6 24,8 54 100/500/1000
3.510.3.2.2.0100.0.0004 4 – 1 6,7 33 69 100/500/1000
3.510.3.2.2.0100.0.0005 5 – 1 7,4 41,3 87 100/500/1000
3.510.3.2.2.0100.0.0006 6 – 1 8 49,5 104 100/500/1000
3.510.3.2.2.0100.0.0007 7 – 1 8 57,8 110 100/500/1000
3.510.3.2.2.0100.0.0008 8 – 1 8,8 66 133 100/500/1000
3.510.3.2.2.0100.0.0009 9 – 1 10,3 74,3 151 100/500/1000
3.510.3.2.2.0100.0.0010 10 – 1 10,3 82,5 158 100/500/1000
3.510.3.2.2.0100.0.0012 12 – 1 10,7 99 185 100/500/1000
3.510.3.2.2.0100.0.0014 14 – 1 11,4 115,5 213 100/500/1000
3.510.3.2.2.0100.0.0016 16 – 1 12 132 239 100/500/1000
3.510.3.2.2.0100.0.0018 18 – 1 12,7 148,5 273 100/500/1000
3.510.3.2.2.0100.0.0019 19 – 1 12,7 156,8 279 100/500/1000
3.510.3.2.2.0100.0.0020 20 – 1 13,4 165,1 312 100/500/1000
3.510.3.2.2.0100.0.0021 21 – 1 13,4 173,3 322 100/500/1000
3.510.3.2.2.0100.0.0024 24 – 1 14,9 198,1 355 100/500/1000
3.510.3.2.2.0100.0.0025 25 – 1 14,9 206,3 373 100/500/1000
3.510.3.2.2.0100.0.0027 27 – 1 15,2 222,8 387 100/500/1000
3.510.3.2.2.0100.0.0030 30 – 1 15,9 247,6 428 100/500/1000
3.510.3.2.2.0100.0.0032 32 – 1 16,5 264,1 460 100/500/1000
3.510.3.2.2.0100.0.0036 36 – 1 17,2 297,1 513 100/500/1000
3.510.3.2.2.0100.0.0040 40 – 1 18 330,1 583 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0150.0.0002 2 – 1,5 6,4 25,7 55 100/500/1000
3.510.2.2.2.0150.0.0003 3 – 1,5 6,8 38,6 73 100/500/1000
3.510.2.2.2.0150.0.0004 4 – 1,5 7,5 51,4 93 100/500/1000
3.510.3.2.2.0150.0.0005 5 – 1,5 8,3 64,3 118 100/500/1000
3.510.3.2.2.0150.0.0006 6 – 1,5 9 77,2 141 100/500/1000
3.510.3.2.2.0150.0.0007 7 – 1,5 9 90 151 100/500/1000
3.510.3.2.2.0150.0.0008 8 – 1,5 9,9 102,9 182 100/500/1000
3.510.3.2.2.0150.0.0009 9 – 1,5 11,6 115,7 206 100/500/1000
3.510.3.2.2.0150.0.0010 10 – 1,5 11,6 128,6 216 100/500/1000
3.510.3.2.2.0150.0.0012 12 – 1,5 12,1 154,3 254 100/500/1000
3.510.3.2.2.0150.0.0014 14 – 1,5 12,8 180 293 100/500/1000
3.510.3.2.2.0150.0.0016 16 – 1,5 13,5 205,7 329 100/500/1000
3.510.3.2.2.0150.0.0018 18 – 1,5 14,3 231,5 376 100/500/1000
3.510.3.2.2.0150.0.0019 19 – 1,5 14,3 244,3 386 100/500/1000
3.510.3.2.2.0150.0.0020 20 – 1,5 15,1 257,2 430 100/500/1000
3.510.3.2.2.0150.0.0021 21 – 1,5 15,1 270 442 100/500/1000
3.510.3.2.2.0150.0.0024 24 – 1,5 16,9 308,6 490 100/500/1000
3.510.3.2.2.0150.0.0025 25 – 1,5 16,9 321,5 519 100/500/1000
3.510.3.2.2.0150.0.0027 27 – 1,5 17,3 347,2 541 100/500/1000
3.510.3.2.2.0150.0.0030 30 – 1,5 17,9 385,8 594 100/500/1000
3.510.3.2.2.0150.0.0032 32 – 1,5 18,6 411,5 638 100/500/1000
3.510.3.2.2.0150.0.0036 36 – 1,5 19,4 462,9 712 100/500/1000
3.510.3.2.2.0150.0.0040 40 – 1,5 20,2 514,4 802 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.2.2.2.0250.0.0002 2 – 2,5 7,6 42,9 80 100/500/1000
3.510.2.2.2.0250.0.0003 3 – 2,5 8,1 64,3 108 100/500/1000
3.510.3.2.2.0250.0.0004 4 – 2,5 9 85,7 142 100/500/1000
3.510.3.2.2.0250.0.0005 5 – 2,5 10,1 107,2 183 100/500/1000
3.510.3.2.2.0250.0.0006 6 – 2,5 11 128,6 220 100/500/1000
3.510.3.2.2.0250.0.0007 7 – 2,5 11 150 235 100/500/1000
3.510.3.2.2.0250.0.0008 8 – 2,5 12,1 171,5 283 100/500/1000
3.510.3.2.2.0250.0.0009 9 – 2,5 14,2 192,9 321 100/500/1000
3.510.3.2.2.0250.0.0010 10 – 2,5 14,2 214,3 337 100/500/1000
3.510.3.2.2.0250.0.0012 12 – 2,5 14,8 257,2 396 100/500/1000
3.510.3.2.2.0250.0.0014 14 – 2,5 15,6 300 458 100/500/1000
3.510.3.2.2.0250.0.0016 16 – 2,5 16,5 342,9 516 100/500/1000
3.510.3.2.2.0250.0.0018 18 – 2,5 17,5 385,8 590 100/500/1000
3.510.3.2.2.0250.0.0019 19 – 2,5 17,5 407,2 605 100/500/1000
3.510.3.2.2.0250.0.0020 20 – 2,5 18,5 428,6 675 100/500/1000
3.510.3.2.2.0250.0.0021 21 – 2,5 18,5 450,1 665 100/500/1000
3.510.3.2.2.0250.0.0024 24 – 2,5 20,6 514,4 762 100/500/1000
3.510.3.2.2.0250.0.0025 25 – 2,5 20,6 535,8 810 100/500/1000
3.510.3.2.2.0250.0.0027 27 – 2,5 21 578,7 844 100/500/1000
3.510.3.2.2.0250.0.0030 30 – 2,5 21,9 643 935 100/500/1000
3.510.3.2.2.0250.0.0032 32 – 2,5 22,8 685,8 1004 100/500/1000
3.510.3.2.2.0250.0.0036 36 – 2,5 23,8 771,6 1123 100/500/1000
3.510.3.2.2.0250.0.0040 40 – 2,5 24,8 857,3 1269 100/500/1000



art Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.3.2.2.0400.0.0002 2 – 4 8,7 68,6 122 100/500/1000
3.510.3.2.2.0400.0.0003 3 – 4 9,3 102,9 155 100/500/1000
3.510.3.2.2.0400.0.0004 4 – 4 10,3 137,2 204 100/500/1000
3.510.3.2.2.0400.0.0005 5 – 4 11,5 171,5 261 100/500/1000
3.510.3.2.2.0400.0.0006 6 – 4 12,6 205,7 314 100/500/1000
3.510.3.2.2.0400.0.0007 7 – 4 12,6 240 339 100/500/1000
3.510.3.2.2.0400.0.0008 8 – 4 13,9 274,3 407 100/500/1000
3.510.3.2.2.0400.0.0009 9 – 4 16,3 308,6 460 100/500/1000
3.510.3.2.2.0400.0.0010 10 – 4 16,3 342,9 485 100/500/1000
3.510.3.2.2.0400.0.0012 12 – 4 17 411,5 573 100/500/1000
3.510.3.2.2.0400.0.0014 14 – 4 17,9 480,1 662 100/500/1000
3.510.3.2.2.0400.0.0016 16 – 4 18,9 548,7 748 100/500/1000
3.510.3.2.2.0400.0.0018 18 – 4 20,1 617,2 854 100/500/1000
3.510.3.2.2.0400.0.0019 19 – 4 20,1 651,5 879 100/500/1000
3.510.3.2.2.0400.0.0020 20 – 4 21,2 685,8 976 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.3.2.2.0600.0.0002 2 – 6 10,6 102,9 180 100/500/1000
3.510.3.2.2.0600.0.0003 3 – 6 11,3 154,3 229 100/500/1000
3.510.3.2.2.0600.0.0004 4 – 6 12,6 205,7 302 100/500/1000
3.510.3.2.2.0600.0.0005 5 – 6 14,1 257,2 387 100/500/1000
3.510.3.2.2.0600.0.0006 6 – 6 15,4 308,6 468 100/500/1000
3.510.3.2.2.0600.0.0007 7 – 6 15,4 360,1 505 100/500/1000
3.510.3.2.2.0600.0.0008 8 – 6 16,8 411,5 597 100/500/1000
3.510.3.2.2.0600.0.0009 9 – 6 20 462,9 684 100/500/1000
3.510.3.2.2.0600.0.0010 10 – 6 20 514,4 722 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.3.2.2.1000.0.0002 2 – 10 13,3 178 300 100/500/1000
3.510.3.2.2.1000.0.0003 3 – 10 14,1 267 383 100/500/1000
3.510.3.2.2.1000.0.0004 4 – 10 15,6 356 495 100/500/1000
3.510.3.2.2.1000.0.0005 5 – 10 17,2 445 625 100/500/1000
3.510.3.2.2.1000.0.0006 6 – 10 18,9 534 758 100/500/1000
3.510.3.2.2.1000.0.0007 7 – 10 19,2 623 837 100/500/1000
3.510.3.2.2.1000.0.0008 8 – 10 20,6 712 974 100/500/1000
3.510.3.2.2.1000.0.0009 9 – 10 24,4 801 1107 100/500/1000
3.510.3.2.2.1000.0.0010 10 – 10 24,5 890 1178 100/500/1000



Part Number Conductor Count Pair Count Conductor Cross-section (mm²) Approx. Cable Diameter (mm) Copper Weight (kg/km) Approx. Weight (kg/km) Packing Lengths (m)
3.510.3.2.2.1600.0.0002 2 – 16 17,3 280,4 466 100/500/1000
3.510.3.2.2.1600.0.0003 3 – 16 18,4 420,6 618 100/500/1000
3.510.3.2.2.1600.0.0004 4 – 16 20,3 560,9 801 100/500/1000
3.510.3.2.2.1600.0.0005 5 – 16 22,5 701,1 1018 100/500/1000
3.510.3.2.2.1600.0.0006 6 – 16 24,9 841,3 1245 100/500/1000
3.510.3.2.2.1600.0.0007 7 – 16 24,9 981,5 1347 100/500/1000
3.510.3.2.2.1600.0.0008 8 – 16 27,2 1121,7 1600 100/500/1000
3.510.3.2.2.1600.0.0009 9 – 16 32,2 1261,9 1807 100/500/1000
3.510.3.2.2.1600.0.0010 10 – 16 32,3 1402,1 1918 100/500/1000
Bending Radius Temperature Range
Operating
7.5xD mm -30°C ~ +70°C
Home
Phone
E-Mail
