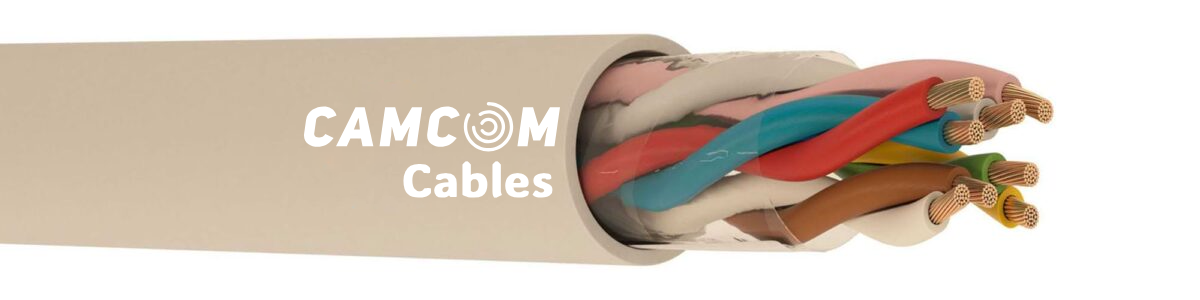

LIYY-TP/TT Signal Control Cable
Product Code: LIYY-TP/TT
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100) |
| 3 – Stranding | : | Insulations are stranded into pairs or triads and all pairs or triads are stranded together. |
| 4 – Wrapping | : | Polyester tape |
| 5 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 7035 (Grey) |
| Cross Section |
Conductor Resistance (20 °C) Ω/km |
Insulation Resistance (20 °C) MΩ/km |
Mutual Capacitance
nF/km |
Operating Voltage V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.22 mm² | 85.0 | 200 | 110 | 250 | 1200 |
| 0.25 mm² | 77.8 | 200 | 110 | 250 | 1200 |
| 0.34 mm² | 56.0 | 200 | 110 | 250 | 1200 |
| 0.50 mm² | 39.0 | 20 | 120 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 120 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 130 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 140 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 150 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.511.2.2.2.0050.0.0001 | – | 1 | 0,5 | 4,9 | 8,8 | 26 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0002 | – | 2 | 0,5 | 6,4 | 17,7 | 45 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0003 | – | 3 | 0,5 | 7,5 | 26,5 | 66 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0004 | – | 4 | 0,5 | 9,2 | 35,4 | 90 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0005 | – | 5 | 0,5 | 9,6 | 44,2 | 106 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0006 | – | 6 | 0,5 | 10,2 | 53,1 | 124 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0007 | – | 7 | 0,5 | 11,1 | 61,9 | 144 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0008 | – | 8 | 0,5 | 11,6 | 70,8 | 160 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0009 | – | 9 | 0,5 | 12,3 | 79,6 | 179 | 100/500/1000 |
| 3.511.2.2.2.0050.0.0010 | – | 10 | 0,5 | 12,8 | 88,5 | 195 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.511.2.2.2.0075.0.0001 | – | 1 | 0,75 | 5,4 | 13,3 | 36 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0002 | – | 2 | 0,75 | 7,2 | 26,5 | 63 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0003 | – | 3 | 0,75 | 8,4 | 39,8 | 88 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0004 | – | 4 | 0,75 | 10,3 | 53,1 | 119 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0005 | – | 5 | 0,75 | 10,7 | 66,3 | 140 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0006 | – | 6 | 0,75 | 11,4 | 79,6 | 164 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0007 | – | 7 | 0,75 | 12,4 | 92,9 | 190 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0008 | – | 8 | 0,75 | 12,9 | 106,2 | 211 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0009 | – | 9 | 0,75 | 13,7 | 119,4 | 237 | 100/500/1000 |
| 3.511.2.2.2.0075.0.0010 | – | 10 | 0,75 | 14,3 | 132,7 | 259 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.511.2.2.2.0100.0.0001 | – | 1 | 1 | 5,7 | 16,6 | 41 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0002 | – | 2 | 1 | 7,7 | 33,2 | 72 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0003 | – | 3 | 1 | 8,9 | 49,8 | 102 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0004 | – | 4 | 1 | 11 | 66,3 | 138 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0005 | – | 5 | 1 | 11,5 | 82,9 | 163 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0006 | – | 6 | 1 | 12,3 | 99,5 | 192 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0007 | – | 7 | 1 | 13,4 | 116,1 | 223 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0008 | – | 8 | 1 | 14 | 132,7 | 249 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0009 | – | 9 | 1 | 14,8 | 149,3 | 279 | 100/500/1000 |
| 3.511.2.2.2.0100.0.0010 | – | 10 | 1 | 15,4 | 165,9 | 306 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.511.2.2.2.0150.0.0001 | – | 1 | 1,5 | 6,4 | 25,8 | 55 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0002 | – | 2 | 1,5 | 8,6 | 51,7 | 98 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0003 | – | 3 | 1,5 | 10,1 | 77,5 | 139 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0004 | – | 4 | 1,5 | 12,4 | 103,4 | 188 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0005 | – | 5 | 1,5 | 13 | 129,2 | 223 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0006 | – | 6 | 1,5 | 13,8 | 155,1 | 263 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0007 | – | 7 | 1,5 | 15,1 | 180,9 | 306 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0008 | – | 8 | 1,5 | 15,8 | 206,8 | 342 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0009 | – | 9 | 1,5 | 16,7 | 232,6 | 384 | 100/500/1000 |
| 3.511.2.2.2.0150.0.0010 | – | 10 | 1,5 | 17,4 | 258,4 | 421 | 100/500/1000 |
| Part Number | Conductor Count | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|---|
| 3.511.2.2.2.0250.0.0001 | – | 1 | 2,5 | 7,6 | 43,1 | 80 | 100/500/1000 |
| 3.511.2.2.2.0250.0.0002 | – | 2 | 2,5 | 10,5 | 86,1 | 149 | 100/500/1000 |
| 3.511.2.2.2.0250.0.0003 | – | 3 | 2,5 | 12,4 | 129,2 | 216 | 100/500/1000 |
| 3.511.2.2.2.0250.0.0004 | – | 4 | 2,5 | 15,2 | 172,3 | 290 | 100/500/1000 |
| 3.511.2.2.2.0250.0.0005 | – | 5 | 2,5 | 16 | 215,4 | 347 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
