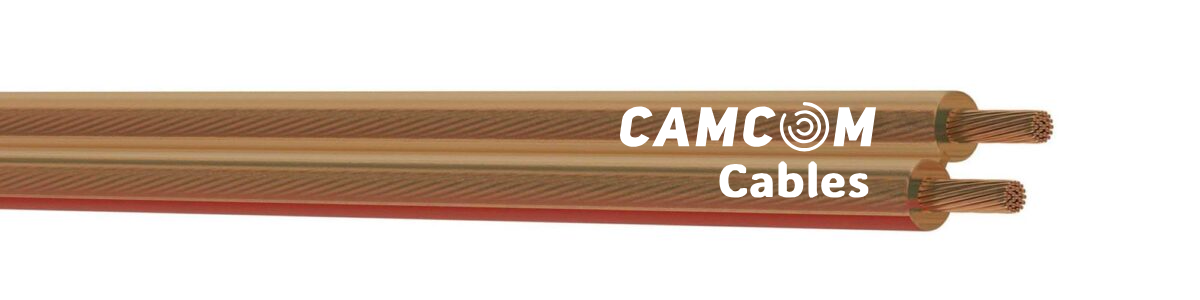

Loudspeaker
Product Code: Loudspeaker
1 – Conductor : Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Outer Jacket : UV resistant transparent red/white red PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). Transparent, RAL 3000 (Red), RAL 9001 (White)
| Cross Section |
Stranded Copper Construction mm |
Loop Resistance Max. Ω/km |
Capacitancep F/m |
Operating Voltage V DC |
|---|---|---|---|---|
| 2×0.5 mm² | 16×0.19 | 70 | 47 | 300/500 |
| 2×0.75 mm² | 24×0.19 | 47 | 60 | 300/500 |
| 2×1.5 mm² | 27×0.25 | 23 | 67 | 300/500 |
| 2×2.5 mm² | 45×0.25 | 14 | 67 | 300/500 |
| 2×4.0 mm² | 50×0.30 | 9 | 64 | 300/500 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.630.0.2.2.0050.0.0002 | 2 | 0,5 | 2,6 | 8,8 | 23 | 100/500/1000 |
| 3.630.0.2.2.0075.0.0002 | 2 | 0,75 | 2,8 | 13,3 | 29 | 100/500/1000 |
| 3.630.0.2.2.0100.0.0002 | 2 | 1 | 2,9 | 16,6 | 34 | 100/500/1000 |
| 3.630.0.2.2.0150.0.0002 | 2 | 1,5 | 3,2 | 25,8 | 45 | 100/500/1000 |
| 3.630.0.2.2.0250.0.0002 | 2 | 2,5 | 3,8 | 43,1 | 67 | 100/500/1000 |
| 3.630.0.2.2.0400.0.0002 | 2 | 4 | 4,5 | 68,9 | 100 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -30°C~+70°C |
