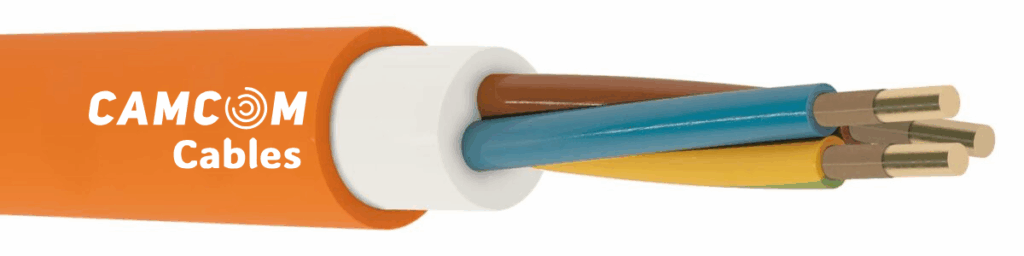

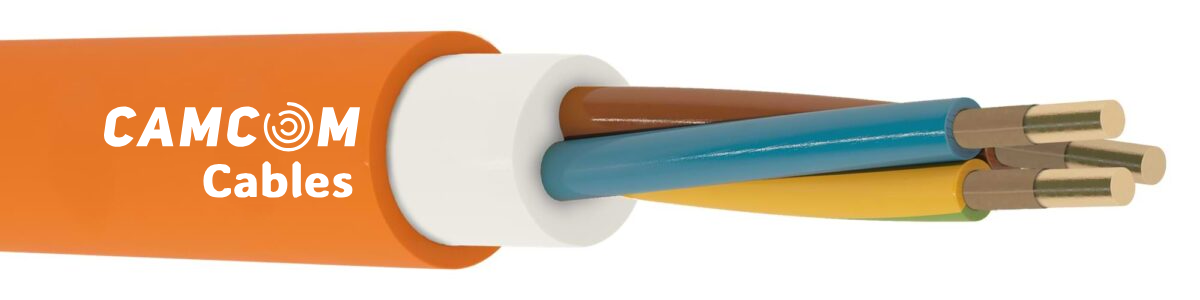

NHXH-J 0.6/1kV FE180 E90 Fire Resistant Cable

Product Code: NHXH-J 0.6/1kV FE180 E90

1 – Conductor	:	Class 1 electrolytic solid copper (IEC 60228, DIN VDE 0295, EN 60228).
2 – Wrapping	:	Each conductor wrapped with mica tape.
3 – Insulation	:	Wrapped conductors insulated with VDE 0266 HXI1 Cross-linked HFFR compound.
4 – Stranding	:	Insulations are stranded into layers.
5 – Filling	:	Halogen-free compund.
6 – Outer Jacket	:	UV resistant halogen-free outer jacket. RAL 2008 (Orange)

Cross Section	Conductor Resistance Ω/km (20 °C)	Operating VoltageV DC	Test Voltage (@ 1 minute) V
0.50 mm²	36.0	600/1000	4000
0.75 mm²	24.5	600/1000	4000
1.00 mm²	18.1	600/1000	4000
1.50 mm²	12.1	600/1000	4000
2.50 mm²	7.41	600/1000	4000
4.00 mm²	4.61	600/1000	4000
6.00 mm²	3.08	600/1000	4000
10.00 mm²	1.83	600/1000	4000
16.00 mm²	1.15	600/1000	4000
25.00 mm²	0.727	600/1000	4000
35.00 mm²	0.524	600/1000	4000

Smoke Density Test	Corrosive Gas Test	Halogen-free Test	Flame Propagation Test	Flame Retardancy Test
IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2	IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3	IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1	IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24	IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2

Circuit Integrity Test (FE180)	Cable System Circuit Integrity Test (E30 / E60 / E90)
IEC 60331-21	DIN 4102-12

Bending Radius	Temperature Range Operating
10xD mm	-40°C ~ +90°C
