RE-2X(St)H-PiMF/TiMF Instrumentation Cable

Product Code: RE-2X(St)H-PiMF/TiMF

  • Cable Construction
  • Technical Data
  • Standards
  • Types
  • Mechanical Characteristics

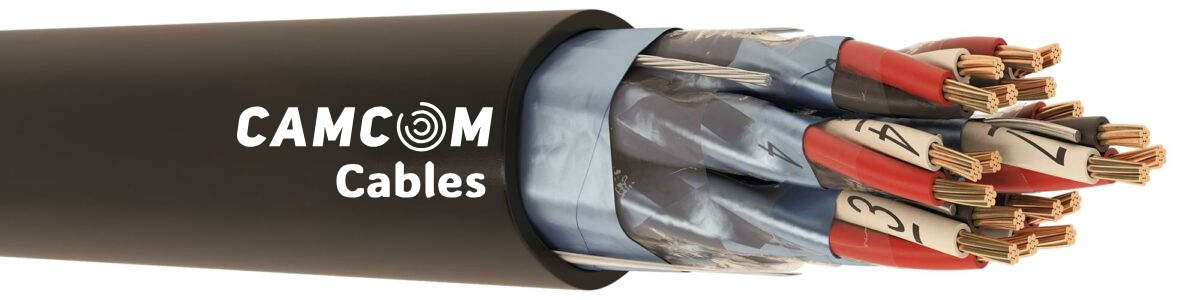

1 – Conductor : Stranded electrolytic copper conductor (Class 2) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : XLPE (BS EN 50290-2, VDE 0207 YI1), Black, White, Red; Number coded (BS 5308-2)
3 – Individual Stranding : Insulations stranding into pairs or triads
4 – Individual Wrapping : Polyester tape
5 – Individual Screen : Tinned copper earthing wire, Al/PET tape
6 – Overall Stranding : Screened pairs or triads are stranded in layers.
7 – Overall Wrapping : Polyester tape
8 – Overall Screen : Tinned copper earthing wire, Al/PET tape
9 – Outer Jacket : UV resistant halogen-free outer jacket. RAL 9005 (Black)
Conductor
Diameter		 Conductor Resistance
Ω/km
(20 °C)		 Insulation
Resistance
(@500V DC)
MΩ/km		 Mutual Capacitance

nF/km

 Operating
Voltage

V DC

 Test Voltage

(@ 1 minute)
V DC
0.50 mm² 36.0 Min. 1000 Max. 250 300/500 2000
0.75 mm² 24.5 Min. 1000 Max. 250 300/500 2000
1.00 mm² 18.1 Min. 1000 Max. 250 300/500 2000
1.50 mm² 12.1 Min. 1000 Max. 250 300/500 2000
2.50 mm² 7.41 Min. 1000 Max. 250 300/500 2000
Manufacturing Referance Smoke Density Test Corrosive Gas Test Halogen-free Test Flame Propagation Test Flame Retardancy Test
EN 50288-7
or
IEC 60502-1		 IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		 IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		 IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		 IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		 IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.12.aX11.0.0.3|0.0050.0002-EN 2 0.50 8.3 30.1 76 500/1000
3.561.12.aX11.0.0.3|0.0050.0004-EN 4 0.50 9.5 55.4 114 500/1000
3.561.12.aX11.0.0.3|0.0050.0006-EN 6 0.50 11.3 80.7 160 500/1000
3.561.12.aX11.0.0.3|0.0050.0008-EN 8 0.50 12.2 106.0 197 500/1000
3.561.12.aX11.0.0.3|0.0050.0010-EN 10 0.50 14.4 131.2 248 500/1000
3.561.12.aX11.0.0.3|0.0050.0012-EN 12 0.50 14.8 156.5 282 500/1000
3.561.12.aX11.0.0.3|0.0050.0016-EN 16 0.50 16.5 207.1 364 500/1000
3.561.12.aX11.0.0.3|0.0050.0020-EN 20 0.50 18.3 257.6 440 500/1000
3.561.12.aX11.0.0.3|0.0050.0024-EN 24 0.50 20.4 308.2 526 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.12.aX11.0.0.3|0.0075.0002-EN 2 0.75 9.0 40.4 91 500/1000
3.561.12.aX11.0.0.3|0.0075.0004-EN 4 0.75 10.3 75.9 140 500/1000
3.561.12.aX11.0.0.3|0.0075.0006-EN 6 0.75 12.4 111.4 199 500/1000
3.561.12.aX11.0.0.3|0.0075.0008-EN 8 0.75 13.4 147.0 248 500/1000
3.561.12.aX11.0.0.3|0.0075.0010-EN 10 0.75 15.8 182.5 311 500/1000
3.561.12.aX11.0.0.3|0.0075.0012-EN 12 0.75 16.5 218.0 365 500/1000
3.561.12.aX11.0.0.3|0.0075.0016-EN 16 0.75 18.2 289.1 462 500/1000
3.561.12.aX11.0.0.3|0.0075.0020-EN 20 0.75 20.4 360.2 571 500/1000
3.561.12.aX11.0.0.3|0.0075.0024-EN 24 0.75 22.7 431.2 683 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.12.aX11.0.0.3|0.0100.0002-EN 2 1.00 9.7 50.6 106 500/1000
3.561.12.aX11.0.0.3|0.0100.0004-EN 4 1.00 11.4 96.9 173 500/1000
3.561.12.aX11.0.0.3|0.0100.0006-EN 6 1.00 13.7 142.9 247 500/1000
3.561.12.aX11.0.0.3|0.0100.0008-EN 8 1.00 14.8 188.9 307 500/1000
3.561.12.aX11.0.0.3|0.0100.0010-EN 10 1.00 17.4 234.9 386 500/1000
3.561.12.aX11.0.0.3|0.0100.0012-EN 12 1.00 18.0 281.0 443 500/1000
3.561.12.aX11.0.0.3|0.0100.0016-EN 16 1.00 20.1 373.0 574 500/1000
3.561.12.aX11.0.0.3|0.0100.0020-EN 20 1.00 22.5 465.1 709 500/1000
3.561.12.aX11.0.0.3|0.0100.0024-EN 24 1.00 25.1 557.1 848 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.12.aX11.0.0.3|0.0150.0002-EN 2 1.50 11.4 68.4 140 500/1000
3.561.12.aX11.0.0.3|0.0150.0004-EN 4 1.50 13.1 132.0 225 500/1000
3.561.12.aX11.0.0.3|0.0150.0006-EN 6 1.50 15.8 195.6 322 500/1000
3.561.12.aX11.0.0.3|0.0150.0008-EN 8 1.50 17.3 259.1 413 500/1000
3.561.12.aX11.0.0.3|0.0150.0010-EN 10 1.50 20.5 322.7 519 500/1000
3.561.12.aX11.0.0.3|0.0150.0012-EN 12 1.50 21.1 386.3 597 500/1000
3.561.12.aX11.0.0.3|0.0150.0016-EN 16 1.50 23.6 513.5 775 500/1000
3.561.12.aX11.0.0.3|0.0150.0020-EN 20 1.50 26.5 640.6 958 500/1000
3.561.12.aX11.0.0.3|0.0150.0024-EN 24 1.50 29.5 767.8 1145 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.12.bX11.0.0.3|0.0250.0002-EN 2 2.50 14.8 108.6 218 500/1000
3.561.12.bX11.0.0.3|0.0250.0004-EN 4 2.50 17.4 212.3 367 500/1000
3.561.12.bX11.0.0.3|0.0250.0006-EN 6 2.50 21.0 316.0 526 500/1000
3.561.12.bX11.0.0.3|0.0250.0008-EN 8 2.50 23.0 419.7 676 500/1000
3.561.12.bX11.0.0.3|0.0250.0010-EN 10 2.50 27.5 523.5 861 500/1000
3.561.12.bX11.0.0.3|0.0250.0012-EN 12 2.50 28.4 627.2 994 500/1000
3.561.12.bX11.0.0.3|0.0250.0016-EN 16 2.50 31.7 834.6 1287 500/1000
3.561.12.bX11.0.0.3|0.0250.0020-EN 20 2.50 35.8 1042.1 1608 500/1000
3.561.12.bX11.0.0.3|0.0250.0024-EN 24 2.50 39.9 1249.5 1919 500/1000
Bending Radius Temperature Range
Operating
7.5xD mm -30°C ~ +90°C
