RE-2X(St)H-TP/TT Instrumentation Cable

Product Code: RE-2X(St)H-TP/TT

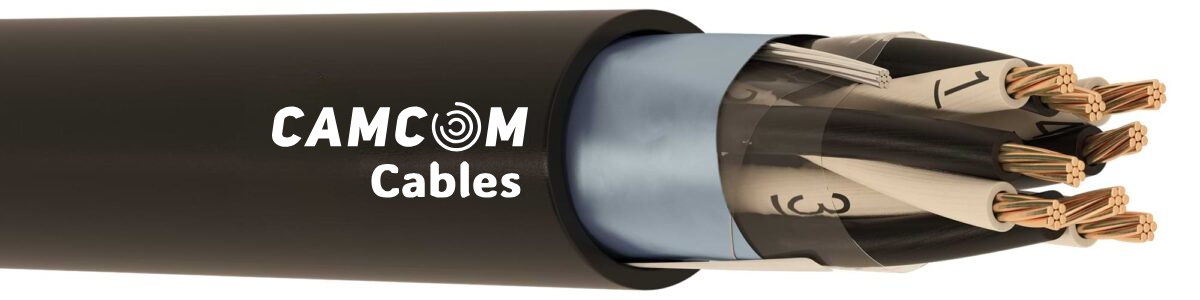

  • Cable Construction
  • Technical Data
  • Standards
  • Types
  • Mechanical Characteristics
1 – Conductor : Stranded electrolytic copper conductor (Class 2) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : XLPE (BS EN 50290-2, VDE 0207 YI1), Black, White, Red; Number coded (BS 5308-2)
3 – Stranding : Insulations stranding into pairs or triads
4 – Wrapping : Polyester tape
5 – Screen : Tinned copper earthing wire, Al/PET tape
6 – Outer Jacket : UV resistant halogen-free outer jacket. RAL 9005 (Black)
Conductor
Diameter		 Conductor Resistance
Ω/km
(20 °C)		 Insulation
Resistance
(@500V DC)
MΩ/km		 Mutual Capacitance

nF/km

 Operating
Voltage

V DC

 Test Voltage

(@ 1 minute)
V DC
0.50 mm² 36.0 Min. 1000 Max. 250 300/500 2000
0.75 mm² 24.5 Min. 1000 Max. 250 300/500 2000
1.00 mm² 18.1 Min. 1000 Max. 250 300/500 2000
1.50 mm² 12.1 Min. 1000 Max. 250 300/500 2000
2.50 mm² 7.41 Min. 1000 Max. 250 300/500 2000
Manufacturing Referance Smoke Density Test Corrosive Gas Test Halogen-free Test Flame Propagation Test Flame Retardancy Test
EN 50288-7
or
IEC 60502-1		 IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		 IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		 IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		 IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		 IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.02.aX11.0.0.3|0.0050.0001-EN 1 0.50 5.3 14.7 36 500/1000
3.561.02.aX11.0.0.3|0.0050.0002-EN 2 0.50 7.4 24.5 60 500/1000
3.561.02.aX11.0.0.3|0.0050.0004-EN 4 0.50 8.6 44.2 93 500/1000
3.561.02.aX11.0.0.3|0.0050.0006-EN 6 0.50 10.1 63.8 125 500/1000
3.561.02.aX11.0.0.3|0.0050.0008-EN 8 0.50 11.0 83.5 157 500/1000
3.561.02.aX11.0.0.3|0.0050.0010-EN 10 0.50 12.7 103.2 191 500/1000
3.561.02.aX11.0.0.3|0.0050.0012-EN 12 0.50 13.1 122.9 217 500/1000
3.561.02.aX11.0.0.3|0.0050.0016-EN 16 0.50 14.6 162.2 279 500/1000
3.561.02.aX11.0.0.3|0.0050.0020-EN 20 0.50 16.4 201.5 344 500/1000
3.561.02.aX11.0.0.3|0.0050.0024-EN 24 0.50 18.0 240.9 403 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.02.aX11.0.0.3|0.0075.0001-EN 1 0.75 5.9 19.8 46 500/1000
3.561.02.aX11.0.0.3|0.0075.0002-EN 2 0.75 8.3 34.7 78 500/1000
3.561.02.aX11.0.0.3|0.0075.0004-EN 4 0.75 9.4 64.7 118 500/1000
3.561.02.aX11.0.0.3|0.0075.0006-EN 6 0.75 11.2 94.6 166 500/1000
3.561.02.aX11.0.0.3|0.0075.0008-EN 8 0.75 12.1 124.5 206 500/1000
3.561.02.aX11.0.0.3|0.0075.0010-EN 10 0.75 14.2 154.4 258 500/1000
3.561.02.aX11.0.0.3|0.0075.0012-EN 12 0.75 14.7 184.4 295 500/1000
3.561.02.aX11.0.0.3|0.0075.0016-EN 16 0.75 16.4 244.2 381 500/1000
3.561.02.aX11.0.0.3|0.0075.0020-EN 20 0.75 18.1 304.1 461 500/1000
3.561.02.aX11.0.0.3|0.0075.0024-EN 24 0.75 20.2 363.9 552 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.02.aX11.0.0.3|0.0100.0001-EN 1 1.00 6.3 25.0 54 500/1000
3.561.02.aX11.0.0.3|0.0100.0002-EN 2 1.00 8.9 45.2 92 500/1000
3.561.02.aX11.0.0.3|0.0100.0004-EN 4 1.00 10.2 85.7 144 500/1000
3.561.02.aX11.0.0.3|0.0100.0006-EN 6 1.00 12.2 126.1 205 500/1000
3.561.02.aX11.0.0.3|0.0100.0008-EN 8 1.00 13.2 166.5 256 500/1000
3.561.02.aX11.0.0.3|0.0100.0010-EN 10 1.00 15.5 206.9 321 500/1000
3.561.02.aX11.0.0.3|0.0100.0012-EN 12 1.00 16.0 247.3 369 500/1000
3.561.02.aX11.0.0.3|0.0100.0016-EN 16 1.00 17.9 328.1 478 500/1000
3.561.02.aX11.0.0.3|0.0100.0020-EN 20 1.00 20.1 409.0 592 500/1000
3.561.02.aX11.0.0.3|0.0100.0024-EN 24 1.00 22.4 489.8 709 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.02.aX11.0.0.3|0.0150.0001-EN 1 1.50 7.1 33.8 67 500/1000
3.561.02.aX11.0.0.3|0.0150.0002-EN 2 1.50 10.2 62.8 119 500/1000
3.561.02.aX11.0.0.3|0.0150.0004-EN 4 1.50 12.0 120.8 199 500/1000
3.561.02.aX11.0.0.3|0.0150.0006-EN 6 1.50 14.4 178.7 284 500/1000
3.561.02.aX11.0.0.3|0.0150.0008-EN 8 1.50 15.6 236.7 356 500/1000
3.561.02.aX11.0.0.3|0.0150.0010-EN 10 1.50 18.4 294.7 447 500/1000
3.561.02.aX11.0.0.3|0.0150.0012-EN 12 1.50 19.2 352.6 525 500/1000
3.561.02.aX11.0.0.3|0.0150.0016-EN 16 1.50 21.2 468.6 669 500/1000
3.561.02.aX11.0.0.3|0.0150.0020-EN 20 1.50 23.8 584.5 828 500/1000
3.561.02.aX11.0.0.3|0.0150.0024-EN 24 1.50 26.5 700.5 991 500/1000



Part Number Pair Count Conductor
Cross-Section
(mm²)		 Approx.
Cable
Diameter
(mm)		 Copper
Weight
(kg/km)		 Approx.
Cable
Weight
(kg/km)		 Packing
Lengths
(m)
3.561.02.bX11.0.0.3|0.0250.0001-EN 1 2.50 9.1 53.9 105 500/1000
3.561.02.bX11.0.0.3|0.0250.0002-EN 2 2.50 13.4 102.9 192 500/1000
3.561.02.bX11.0.0.3|0.0250.0004-EN 4 2.50 15.7 201.1 326 500/1000
3.561.02.bX11.0.0.3|0.0250.0006-EN 6 2.50 19.2 299.2 479 500/1000
3.561.02.bX11.0.0.3|0.0250.0008-EN 8 2.50 20.8 397.3 604 500/1000
3.561.02.bX11.0.0.3|0.0250.0010-EN 10 2.50 24.9 495.4 771 500/1000
3.561.02.bX11.0.0.3|0.0250.0012-EN 12 2.50 25.7 593.5 891 500/1000
3.561.02.bX11.0.0.3|0.0250.0016-EN 16 2.50 28.7 789.8 1156 500/1000
3.561.02.bX11.0.0.3|0.0250.0020-EN 20 2.50 32.2 986.0 1429 500/1000
3.561.02.bX11.0.0.3|0.0250.0024-EN 24 2.50 36.2 1182.2 1727 500/1000
Bending Radius Temperature Range
Operating
7.5xD mm -30°C ~ +90°C
