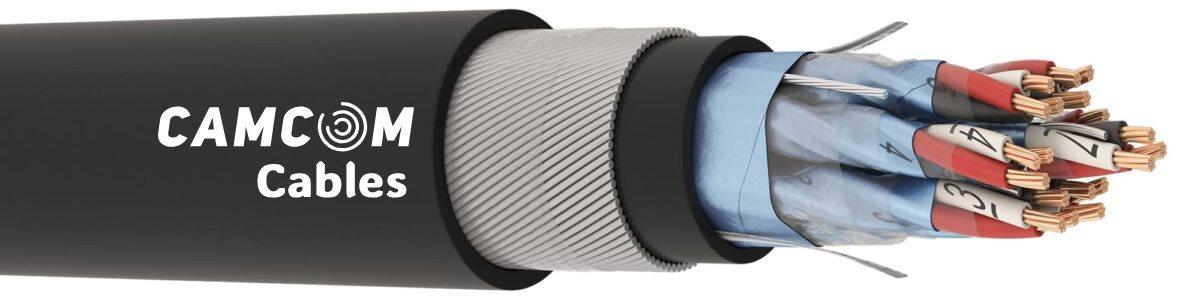

RE-2Y(St)YSWAY-PiMF/TiMF Instrumentation Cable
Product Code: RE-2Y(St)YSWAY-PiMF/TiMF
| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 2) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Polyethylene (BS EN 50290-2, VDE 0207 YI1), Black, White, Red; Number coded (BS 5308-2) |
| 3 – Individual Stranding | : | Insulations stranding into pairs or triads |
| 4 – Individual Wrapping | : | Polyester tape |
| 5 – Individual Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Overall Stranding | : | Screened pairs or triads are stranded in layers. |
| 7 – Overall Wrapping | : | Polyester tape |
| 8 – Overall Screen | : | Tinned copper earthing wire, Al/PET tape |
| 9 – Inner Jacket | : | PVC inner jacket. RAL 9005 (Black) |
| 10 – Armor | : | Galvanized steel wire armor, polyester tape |
| 11 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 9005 (Black) |
| Conductor Diameter |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance (@500V DC) MΩ/km |
Mutual Capacitance
nF/km |
Operating Voltage V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|---|
| 0.50 mm² | 36.0 | 5000 | 160 | 300/500 | 2000 |
| 0.75 mm² | 24.5 | 5000 | 160 | 300/500 | 2000 |
| 1.00 mm² | 18.1 | 5000 | 170 | 300/500 | 2000 |
| 1.50 mm² | 12.1 | 5000 | 170 | 300/500 | 2000 |
| 2.50 mm² | 7.41 | 5000 | 170 | 300/500 | 2000 |
| Manufacturing Referance | Flame Retardancy Test |
|---|---|
| EN 50288-7 or IEC 60502-1 |
IEC 60332-1-2 |
| Part Number | Pair Count | Conductor Cross-Section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.5615.12.a11.0.2.2|0.0050.0002-EN | 2 | 0.50 | 13.0 | 30.1 | 312 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0004-EN | 4 | 0.50 | 14.2 | 55.4 | 379 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0006-EN | 6 | 0.50 | 16.2 | 80.7 | 476 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0008-EN | 8 | 0.50 | 17.1 | 106.0 | 535 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0010-EN | 10 | 0.50 | 19.5 | 131.2 | 648 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0012-EN | 12 | 0.50 | 19.9 | 156.5 | 695 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0016-EN | 16 | 0.50 | 22.3 | 207.1 | 944 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0020-EN | 20 | 0.50 | 24.3 | 257.6 | 1086 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0050.0024-EN | 24 | 0.50 | 26.4 | 308.2 | 1239 | 500/1000 |
| Part Number | Pair Count | Conductor Cross-Section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.5615.12.a11.0.2.2|0.0075.0002-EN | 2 | 0.75 | 13.7 | 40.4 | 342 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0004-EN | 4 | 0.75 | 15.0 | 75.9 | 426 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0006-EN | 6 | 0.75 | 17.3 | 111.4 | 544 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0008-EN | 8 | 0.75 | 18.3 | 147.0 | 615 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0010-EN | 10 | 0.75 | 21.6 | 182.5 | 867 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0012-EN | 12 | 0.75 | 22.3 | 218.0 | 946 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0016-EN | 16 | 0.75 | 24.2 | 289.1 | 1107 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0020-EN | 20 | 0.75 | 26.4 | 360.2 | 1284 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0075.0024-EN | 24 | 0.75 | 28.9 | 431.2 | 1489 | 500/1000 |
| Part Number | Pair Count | Conductor Cross-Section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.5615.12.a11.0.2.2|0.0100.0002-EN | 2 | 1.00 | 14.4 | 50.8 | 377 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0004-EN | 4 | 1.00 | 16.3 | 96.9 | 490 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0006-EN | 6 | 1.00 | 18.6 | 142.9 | 621 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0008-EN | 8 | 1.00 | 19.9 | 188.9 | 720 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0010-EN | 10 | 1.00 | 23.4 | 234.9 | 1005 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0012-EN | 12 | 1.00 | 24.0 | 281.0 | 1087 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0016-EN | 16 | 1.00 | 26.1 | 373.0 | 1284 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0020-EN | 20 | 1.00 | 28.7 | 465.1 | 1503 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0100.0024-EN | 24 | 1.00 | 32.2 | 557.1 | 1943 | 500/1000 |
| Part Number | Pair Count | Conductor Cross-Section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.5615.12.a11.0.2.2|0.0150.0002-EN | 2 | 1.50 | 16.3 | 68.4 | 457 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0004-EN | 4 | 1.50 | 18.0 | 132.0 | 585 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0006-EN | 6 | 1.50 | 21.6 | 195.6 | 877 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0008-EN | 8 | 1.50 | 23.3 | 259.1 | 1031 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0010-EN | 10 | 1.50 | 26.5 | 322.7 | 1243 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0012-EN | 12 | 1.50 | 27.3 | 386.3 | 1349 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0016-EN | 16 | 1.50 | 29.8 | 513.5 | 1608 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0020-EN | 20 | 1.50 | 33.6 | 640.6 | 2098 | 500/1000 |
| 3.5615.12.a11.0.2.2|0.0150.0024-EN | 24 | 1.50 | 36.8 | 767.8 | 2428 | 500/1000 |
| Part Number | Pair Count | Conductor Cross-Section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.5615.12.b11.0.2.2|0.0250.0002-EN | 2 | 2.50 | 19.9 | 108.6 | 631 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0004-EN | 4 | 2.50 | 23.4 | 212.3 | 986 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0006-EN | 6 | 2.50 | 27.2 | 316.0 | 1277 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0008-EN | 8 | 2.50 | 29.2 | 419.7 | 1494 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0010-EN | 10 | 2.50 | 34.8 | 523.5 | 2060 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0012-EN | 12 | 2.50 | 35.7 | 627.2 | 2234 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0016-EN | 16 | 2.50 | 39.2 | 834.6 | 2675 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0020-EN | 20 | 2.50 | 44.3 | 1042.1 | 3480 | 500/1000 |
| 3.5615.12.b11.0.2.2|0.0250.0024-EN | 24 | 2.50 | 48.6 | 1249.5 | 4009 | 500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
