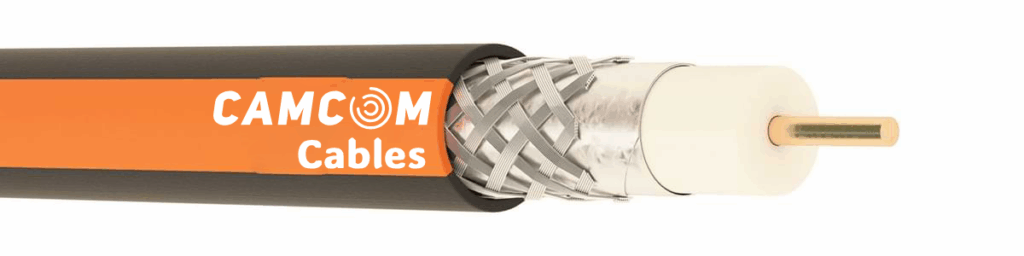

Product Code: RG-11/U-4
1 – Conductor – 1.6 mm ⌀ electrolytic solid copper conductor
2 – Insulation – 7.2 mm ⌀ physically foamed polyethylene
3 – Shield 1 – Al/PET tape
4 – Shield 2 – Aluminum braid
5 – Outer Jacket – UV-resistant PVC, halogen-free polyethylene outer sheath
Notes:
¹ Applies only to cables with a halogen-free sheath.
² Applies only to cables with PVC and halogen-free sheaths.
| Inner Conductor Resistance | Outer Conductor Resistance | Insulation Resistance | Effective Capacitance | Velocity of Propagation | Operating Voltage | Test Voltage | Characteristic Impedance |
|---|---|---|---|---|---|---|---|
| < 8.70 Ω/km | < 27.1 Ω/km | > 2000 MΩ·km | 53 ± 2 pF/m | 0.84 (84%) | 2 kV | 5 kV | 53 ± 3 Ω |
Notes:
¹ Applies only to halogen-free jacketed cables.
² Applies only to PVC and halogen-free jacketed cables.
| Smoke Density Test | Corrosive Gas Test | Halogen-Free Test | Flame Retardancy Test |
|---|---|---|---|
| IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 |
Notes:
¹ Applies only to halogen-free jacketed cables.
² Applies only to PVC and halogen-free jacketed cables.
| Part Number | Number of Conductors | Conductor Diameter (mm) | Average Outer Diameter (mm) | Copper Weight (kg/km) | Average Weight (kg/km) | Packaging Length (m) |
|---|---|---|---|---|---|---|
| 3.711.1.5.2.0160.3.1140 | 1 | 1.6 | 10.6 | 31.4 | 100 | 100/500/1000 |
Notes:
¹ Applies only to halogen-free jacketed cables.
² Applies only to PVC and halogen-free jacketed cables.
| Bending Radius | Temperature Range (Operating) |
|---|---|
| 15 × D mm | -40°C ~ +70°C |
