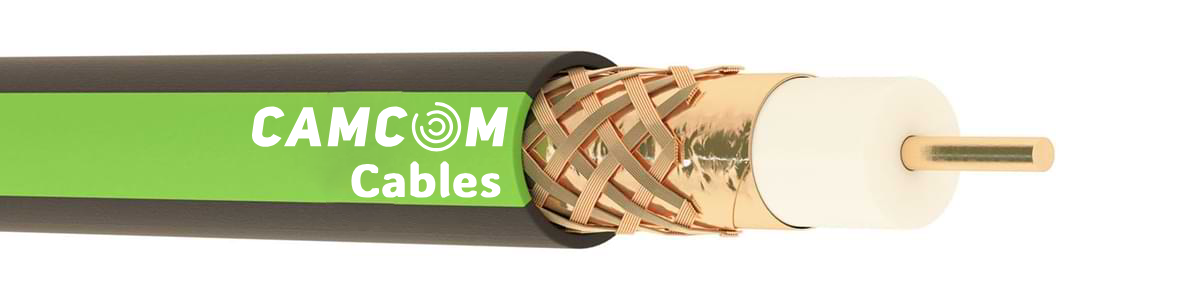

RG-11/U-6 Coaxial Cable
Product Code: RG-11/U-6
| 1 – Conductor | : | 1.6 mm ø electrolytic solid copper conductor |
| 2 – Insulation | : | 7.2 mm ø physical foam polyethylene |
| 3 – Screen | : | Cu/PET tape |
| 4 – 2nd Screen | : | Electrolytic copper braiding |
| 5 – Outer Jacket | : | UV resistant PVC, halogen-free, polyethylene outer jacket |
| Inner Conductor Resistance (20°C) |
Outer Conductor Resistance (20°C) |
Insulation Resistance |
Mutual Capacitance |
Propagation Velocity |
Operating Voltage |
Test Voltage |
Characteristic Impedance |
|---|---|---|---|---|---|---|---|
| <8.70 | <10.8 | >2000 | 53±2 | 0,84 | 2 | 5 | 53±3 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|
| IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.711.2.5.2.0160.0.1160 | 1 | 1.6 | 10.2 | 33,2 | 109 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 15xD mm | -40°C~+70°C |
