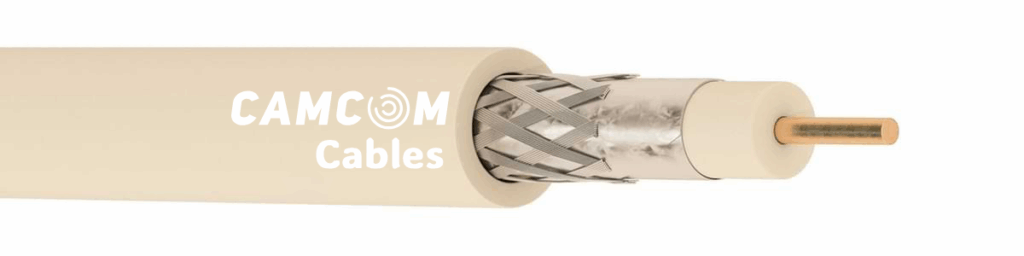

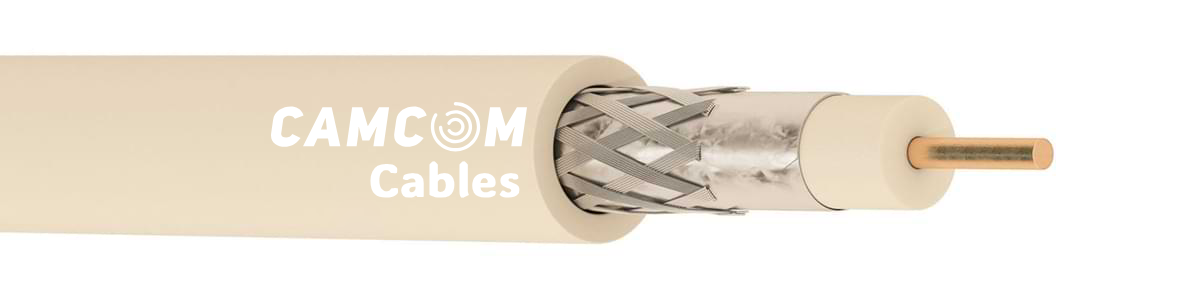

RG-58/U-4 Coaxial Cable
Product Code: RG-58/U-4
| 1 – Conductor | : | 0.80 mm ø electrolytic solid copper conductor |
| 2 – Insulation | : | 2.95 mm ø solid polyethylene |
| 3 – Screen | : | Al/PET tape |
| 4 – 2nd Screen | : | Tinned copper braiding |
| 5 – Outer Jacket | : | UV resistant PVC, halogen-free, polyethylene outer jacket |
| Insulation Resistance |
Mutual Capacitance |
Propagation Velocity |
Operating Voltage |
Test Voltage |
Characteristic Impedance |
|---|---|---|---|---|---|
| >2000 | 50±2 | 0,66 | 2.5 | 5 | 53±3 |
| Manufacturing Std. | Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|---|
| MIL-C-17 | IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.708.1.1.2.0081.1.5840 | 1 | 0.8 | 5 | 19.2 | 36 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 15xD mm | -40°C~+70°C |
